Type A Wall Panel
- Category:Wall Panel
- Material:Galvanized/ Stainless steel plate with PVC film and rock wool
- Certificate:ABS, LR, BV, GL, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

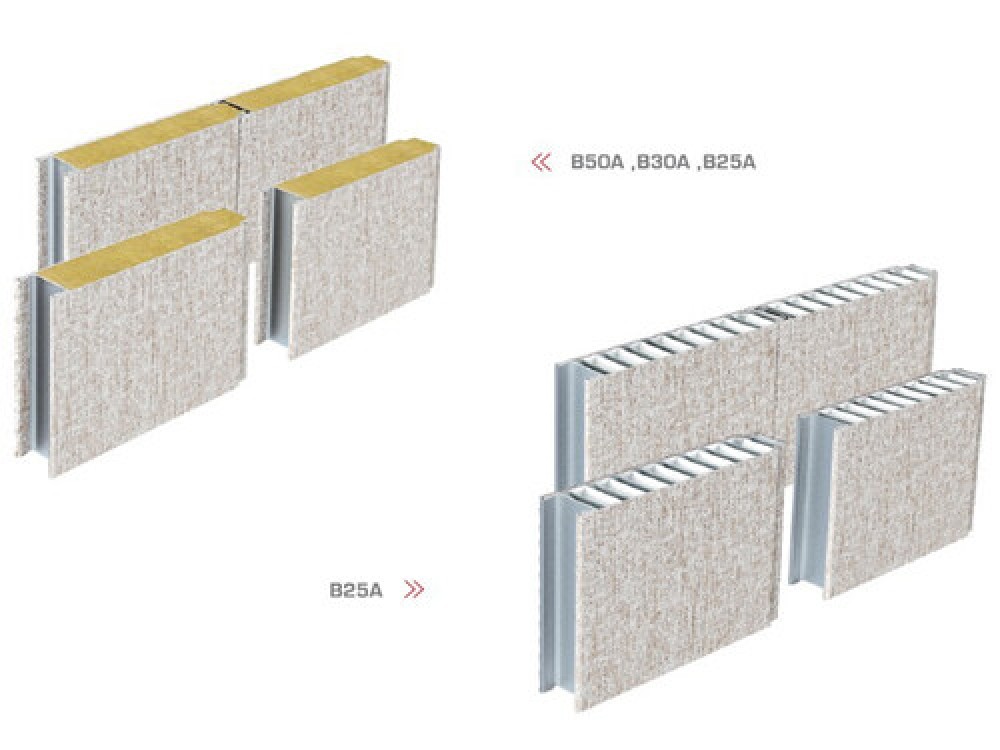

Type A Wall Panel
| Model | Thickness | Fire class | Core material |
| B50A | 50MM | B-15 | rock wool |
| B30A | 30mm | B-15/B-0 | rock wool |
| B25A | 25mm | B-15/B-0 | rock wool |
| B25A | 25mm | B-0 | Aluminum honeycomb |
| B50AD | 50mm | B-15 | rock wool |
| B50AGa | 50mm | B-15 | rock wool |
Main Specification
| Type | B50A | B30A | B25A | B25A |
| Fire class | B-15 | B-15/B-0 | B-15/B-0 | B-0 |
| Weight | 16.0kg/m2 | 13.5kg/m2 | 12.9kg/m2 | 10.0kg/m2 |
| Sound reduction | 33dB | 31dB | --dB | --dB |
| Thermal transmittance | 0.58Kcal/m2h°C | 1.10Kcal/m2h°C | 1.14Kcal/m2h°C | 3.35Kcal/m2h°C |
| Core material | Rock wool 150kg/m3 | Aluminum honeycomb | ||
| Surface finish | PVC film(150μ,low flame spread) or galvanized steel | |||
| Dimension | 25/30/50mm( t )×550mm( w )×length (max.3500mm) | |||
| Tolerances | Thickness0-1×Width0-1×Length±3 | |||
Wall Panels mainly include standard panel, soud absorption panel, high sound reduction panel, double-layer panel, conduit panel, corner panel and wet-room panel etc.
