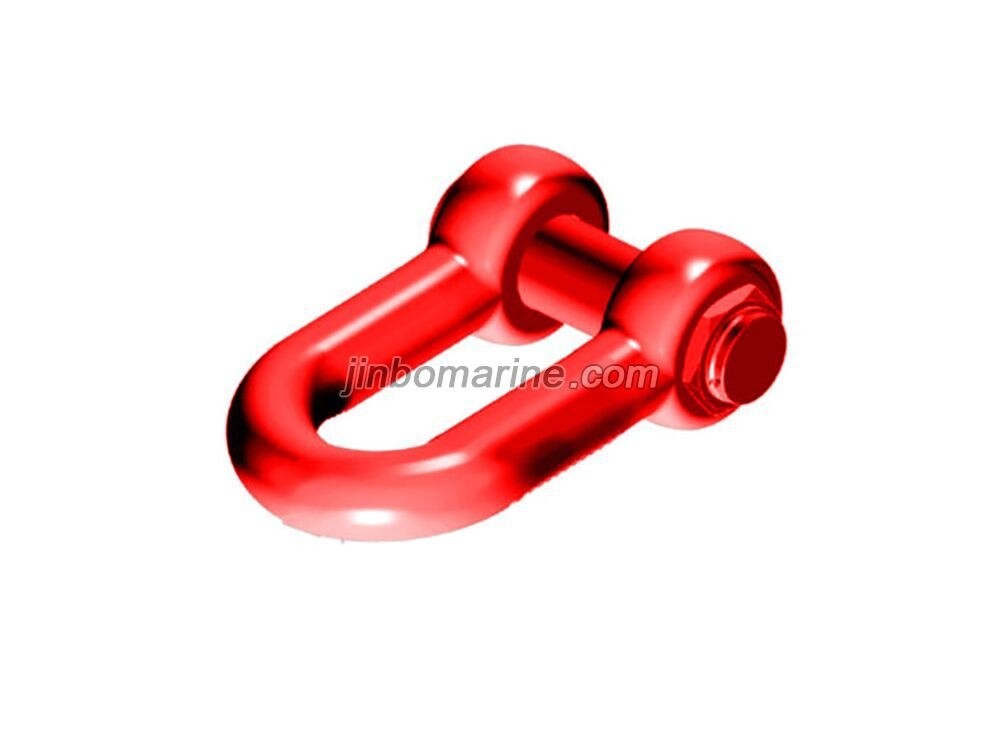

Type D15 Dee Safety Pin Shackle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Type D15 Dee Safety Pin Shackle:

Material: high strength alloy steel

Safety Factory: 5 Times

Finish: Painted.

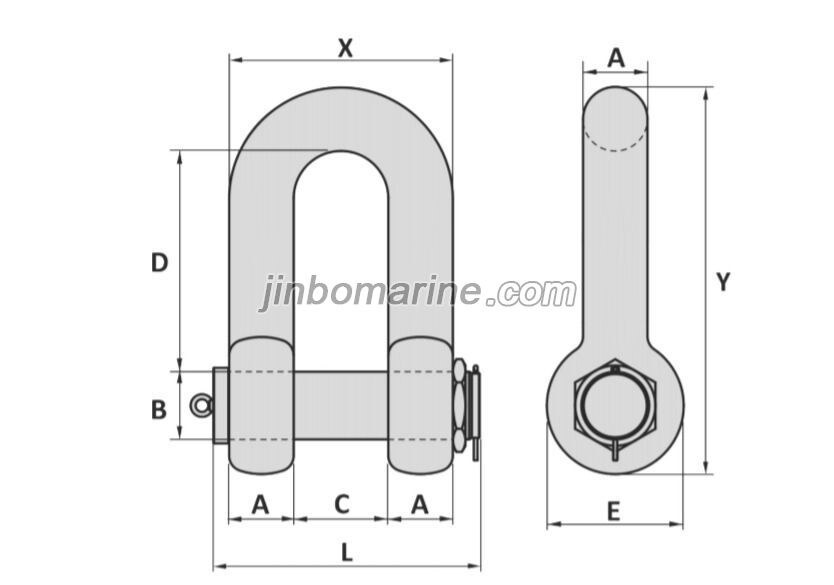

Type D15 Dee Safety Pin Shackle Size

WLL(Ton) A(mm) B(mm) C(mm) D(mm) E(mm) L(mm) X(mm) Y(mm) Weight(kg)
120 89 95 150 270 200 420 328 504 100
150 102 108 170 315 230 475 374 586 143
175 100 110 150 360 220 450 350 625 135
200 120 125 180 500 260 520 420 813 239
250 130 140 195 460 280 565 455 795 268
300 140 150 205 500 300 595 485 855 332
350 150 160 220 520 320 630 520 910 403
400 160 170 235 580 340 665 555 965 484
450 170 180 250 600 360 700 590 1025 576
500 180 190 265 620 380 735 625 1080 678
550 190 215 285 665 405 795 665 1165 840
