Type JQB Non-retractable Fin Stabilizer
- Category:Marine Fin Stabilizer
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Type JQB Non-retractable Fin Stabilizer:

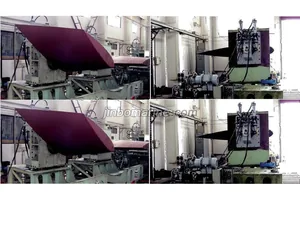

The JQB retractable fin stabilizer is composed of Actuators, Fins, Fin boxes, Hydraulic Units, and Electrical Units, etc. The Fins are installed on the port and starboard bilge of the ship respectively.
Characteristic
Relative simplicity, Good reliability and small occupy.
The fins will be locked as zero angle automatically when stopped.
Trapezoid fin with great hydrodynamic performance features.
Suitable for variety of complex sea states with high frequency response.
Application
Type JQB stabilizer is specifically designed for middle and small size vessels with thin bilge.

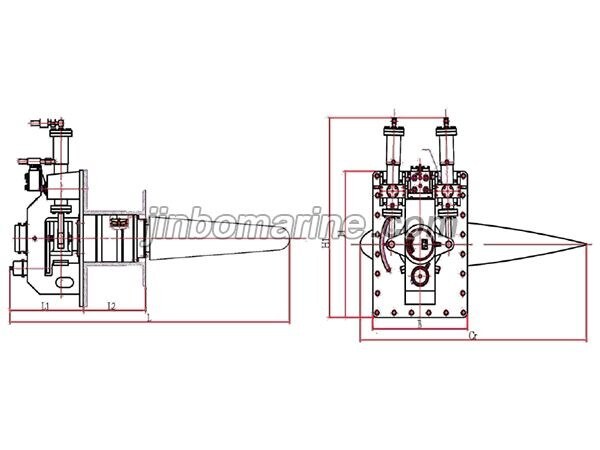

Type JQB Non-retractable Fin Stabilizer Parameter Specification
| Model | Fin Area(m2) | Displacement(t) | State/H(1/3) (m) | Power(Kw),one pair | Weight(Ton),one pair |
| JQB-1-130 | 1 | 100-400 | 4/2.0 | 11 | 1.9 |
| JQB-2-170 | 1.6 | 400-800 | 5/2.5 | 30 | 4.1 |
| JQB-3-200 | 2.5 | 800-1000 | 5/3.5 | 30 | 5.8 |
| JQB-4-240 | 3.5 | 1000-1900 | 5/3.5 | 44 | 9.4 |
| JQB-5-280 | 4.5 | 1900-2800 | 6/4.0 | 44 | 13.1 |
| JQB-6-340 | 5.5 | 2800-3800 | 6/4.5 | 60 | 18.3 |
| JQB-7-380 | 6.5 | 3800-4500 | 6/5.0 | 60 | 19.5 |
