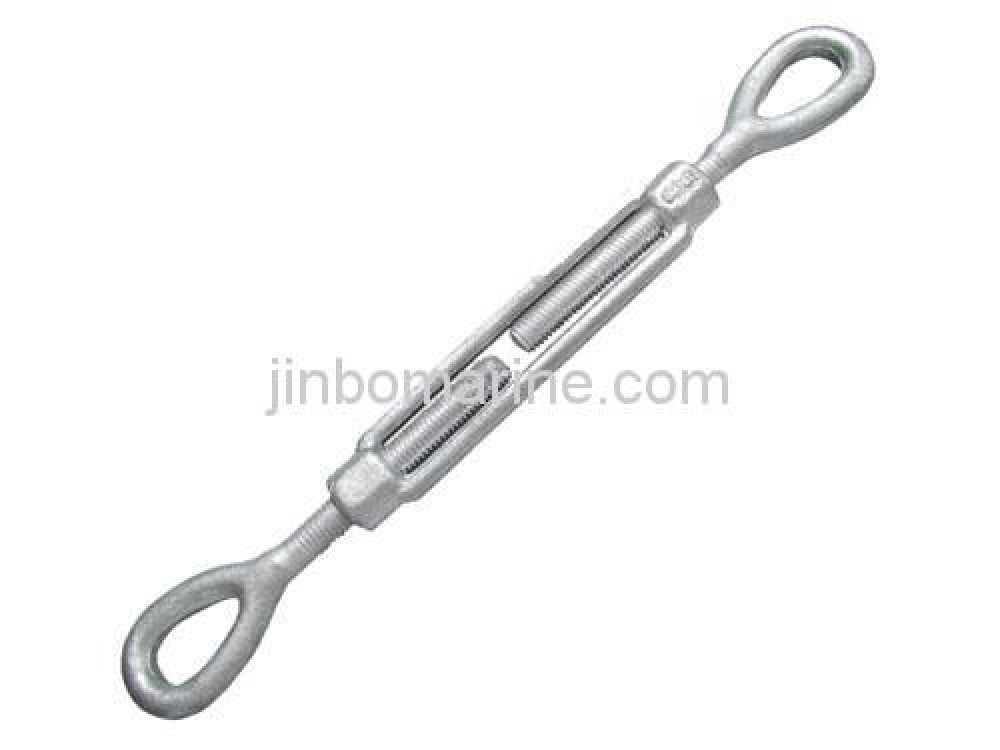

U.S. Type Turnbuckles With Eye And Eye

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification

Turnbuckle usually Forged, Free forged and Casting.

The surface of turnbuckle original color, galvanised,hot galvanized

Material is 45# Steel, Q235

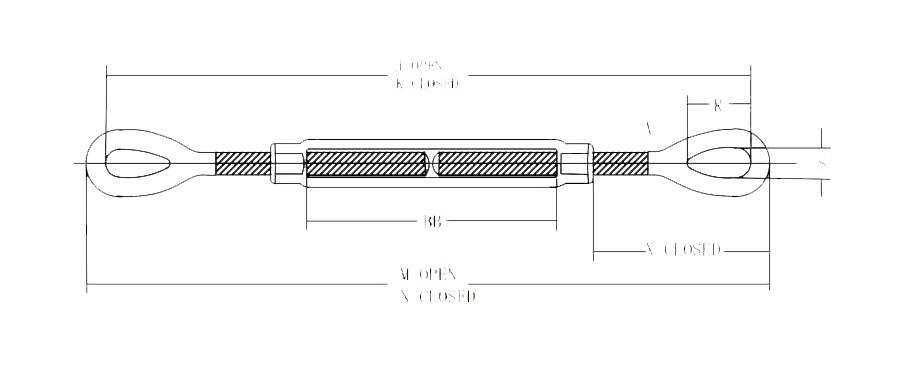

Size Table

Thread Dia & Take Up WLL(lbs) Weight(lbs) Dimensions(in)
A J Open K Closed M Open N Closed R S X Closed BB
1/4x4 500 0.29 0.25 11.94 7.94 12.38 8.38 0.81 0.34 1.76 4.07
5/16x41/2 800 0.48 0.31 13.92 9.42 14.48 9.98 0.95 0.44 2.2 4.58
3/8x6 1200 0.75 0.38 17.56 11.56 18.24 12.24 1.13 0.53 2.48 6.1
1/2x6 2200 1.72 0.5 19.94 13.94 20.82 14.82 1.41 0.71 3.56 6.03
1/2x12 2200 2.63 0.5 32.23 20.23 33.11 21.11 1.41 0.71 3.54 12.36
5/8x6 3500 2.75 0.63 21.72 15.72 22.72 16.72 1.8 0.88 4.35 6.03
5/8x12 3500 4.12 0.63 34.06 22.06 35.06 23.06 1.8 0.88 4.34 12.39
3/4x6 5200 4.22 0.75 23.24 17.24 24.5 18.5 2.09 1 5.12 6.13
3/4x12 5200 6.12 0.75 35.64 23.64 36.9 24.9 2.09 1 5.09 12.59
3/4x18 5200 7.83 0.75 47.64 29.64 48.9 30.9 2.09 1 5.12 18.53
7/8x12 7200 8.83 0.88 36.7 24.7 38.2 26.2 2.38 1.25 5.79 12.16
7/8x18 7200 11.5 0.88 49.17 31.17 50.67 32.67 2.38 1.25 5.79 18.63
1x6 10000 9.62 1 26.24 20.24 28 22 3 1.43 6.5 6.18
1x12 10000 13 1 38.24 26.24 40 28 3 1.43 6.5 12.18
1x18 10000 16.3 1 50.24 32.24 52 34 3 1.43 6.5 18.18
1x24 10000 20.2 1 62.84 38.84 64.6 40.6 3 1.43 6.47 24.84
11/4x12 15200 19.9 1.25 42.14 30.14 44.38 32.38 3.59 1.82 8.49 12.06
11/4x18 15200 23.8 1.25 54.14 36.14 56.38 38.38 3.59 1.82 8.49 18.06
11/4x24 15200 27.8 1.25 66.7 42.7 68.94 44.94 3.59 1.82 8.49 24.62
11/2x12 21400 28.7 1.5 44.24 32.24 46.74 34.74 4.09 2.12 9.46 12.32
11/2x18 21400 34.1 1.5 56.24 38.24 58.74 40.74 4.09 2.12 9.46 18.32
11/2x24 21400 39.6 1.5 68.86 44.86 71.36 47.36 4.09 2.12 9.46 24.94
13/4x18 28000 50.7 1.75 57.38 39.38 60.38 42.38 4.65 2.38 9.97 18.37
13/4x24 28000 58.2 1.75 69.38 45.38 72.38 48.38 4.65 2.38 9.97 24.37
2x24 37000 83.5 2 75.68 51.68 79.18 55.18 5.81 2.69 13.03 24.48
2 1/2x24 60000 149 2.5 79.18 55.18 83.18 59.18 6.49 3.12 13.76 24.6
2 3/4x24 75000 174 2.75 81.34 57.34 85.84 61.84 7 3.25 15.09 24.65
