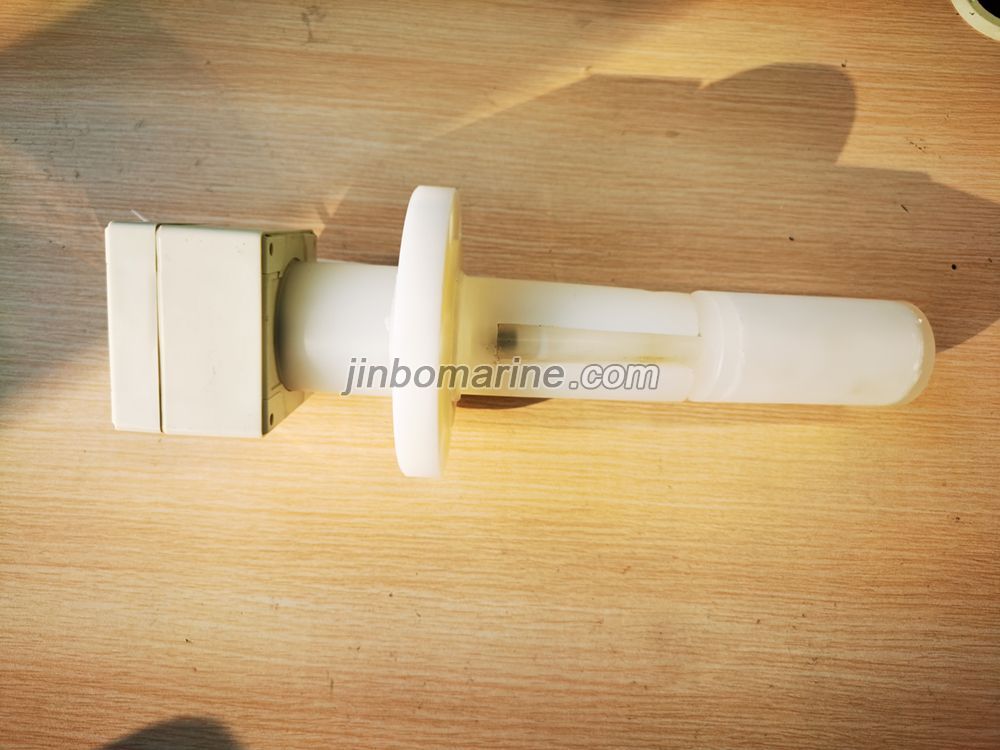

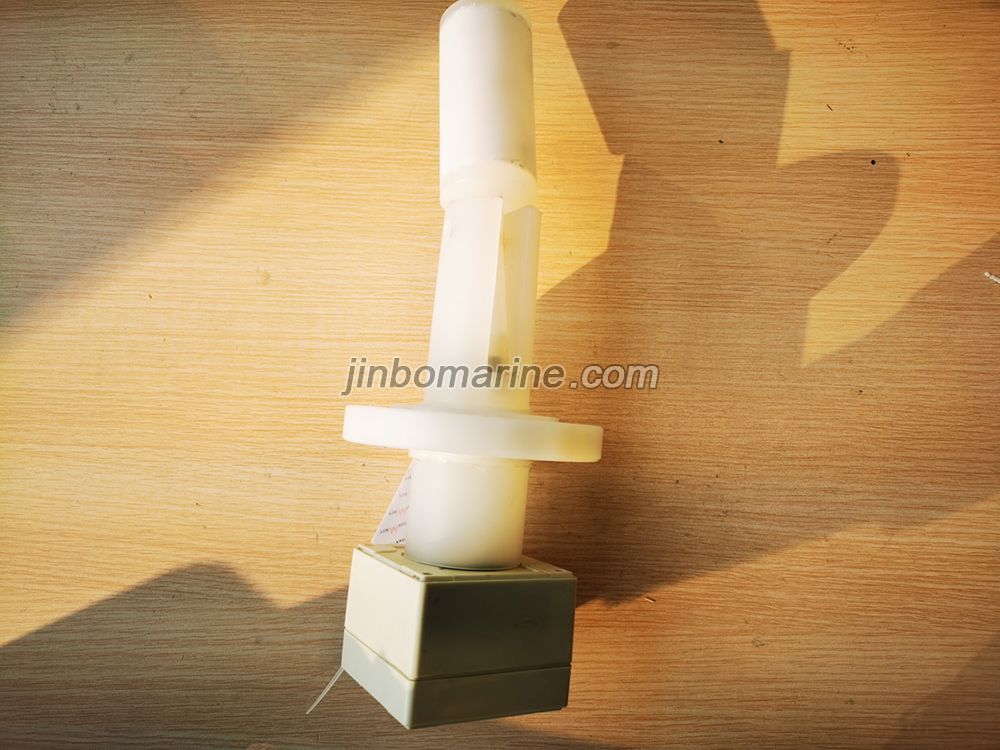

UHK-30-300PP LEVEL CONTROLLER

Contact point:

250VAC 40VA 1A

250VDC 20W 0.5A

Connections: diameter 120mm

UHK-30 Magnetic Level Controller (hereinafter referred to as the Controller) is used tomeasure and control the position of the liquid level of various liquid in industrial processes:It uses the magnetic properties of the reed swtch, Make to the change of liquid levelpositin change into electrical signals.The sensor magnetic floating ball set in the sensor shell is provided with a reed inductivecomponent Because the liquid buoyancy and makes the fioat ball is moving at the sensor.Because the floating ball shell and the sensor casing are made of austenitic materialsmanufacturing. so the magnetic field within the ball fioat can be no barrier to conduction tothe sensing element. Because the floating ball always located on the surface of a liquid.

The liquid surface Signal is the measurement signal.

The output signal of liquid level switch refection can be controlled and processed by aplurality of units.

The single floating ball can react two reed contacts (Top and Bottom). The number and location of the floating ball and the contact switch depends on the presetworking points and distance of the controller.
