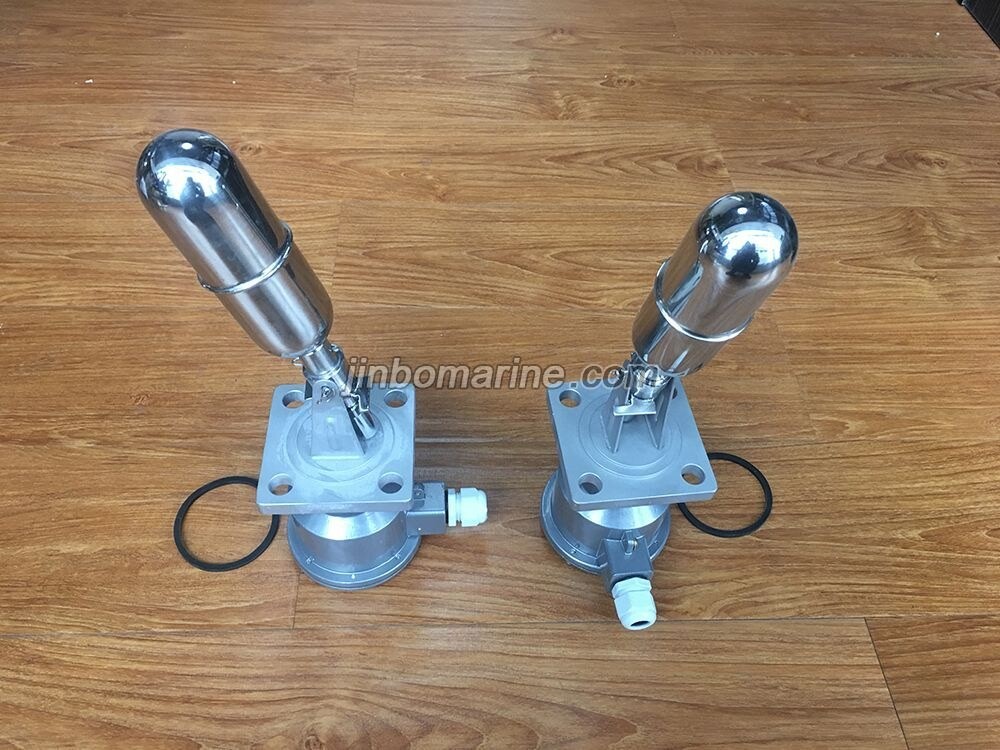

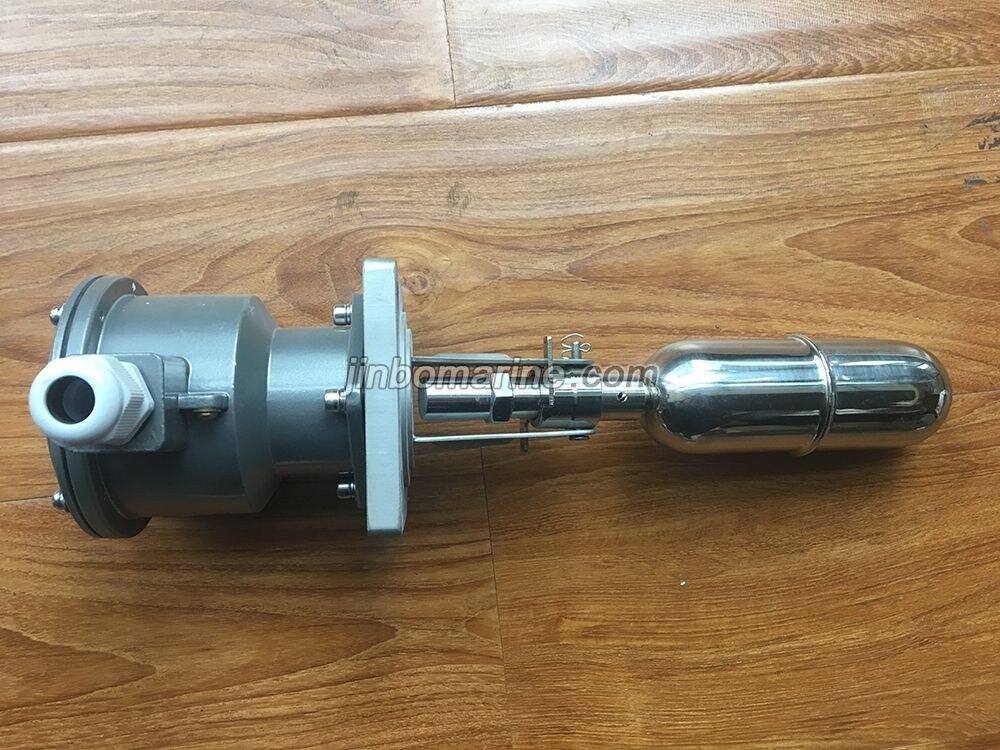

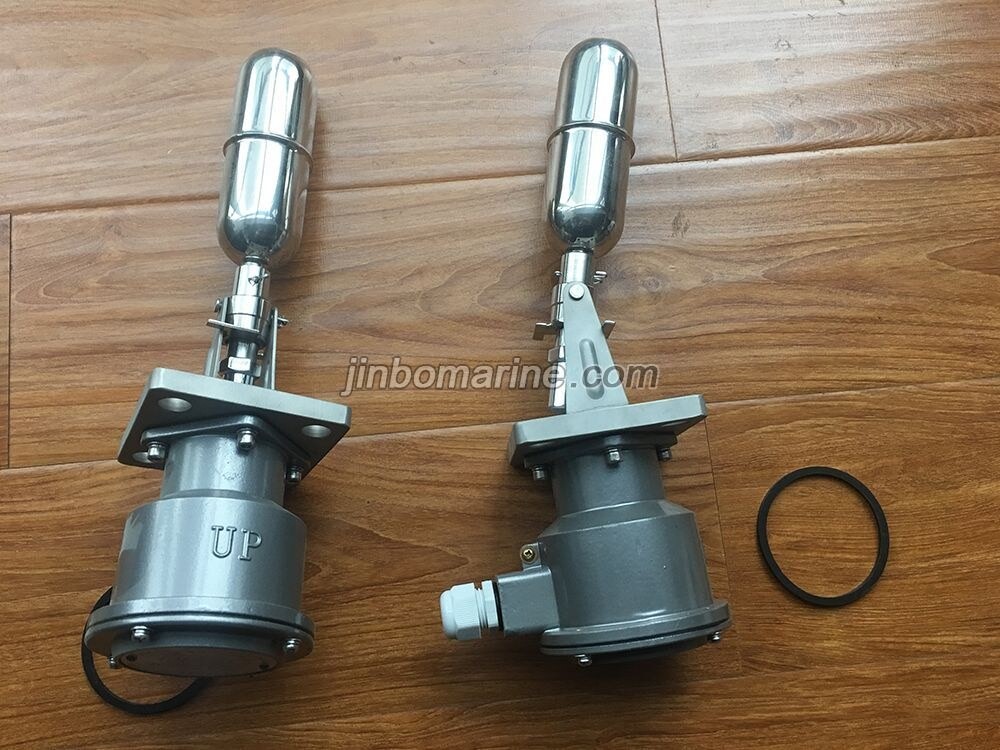

UQK-01 Type Float Type Level Controller With Square Flange

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Specification:

Marine Float Level Controller UQK-01 is widely used in the ship chemical industry and other industrial instrument to carry two place controlling and alarm to the level in liquid tank.

Model Control range Regulated type Mounting position Contact capacity Float diameter(mm)
UQK-01-C 15~30 Fixed value
Unadjustable
Horizontal mounting SPDT AC 220V 1.5A
suit for 250VAC 10A
DC125V 0.6A
2 x SPDT(optional
50
60
76
UQK-01-C-B
UQK-01-C 25~550 Can be adjust by step Top mounting
UQK-02-C Horizontal mounting 50
60
76
UQK-02-C-B
UQK-03-C 8~1000 Stepless,adjustable Top mounting 76
UQK-03-C-B

Nominal pressure: ≤1Mpa

Medium temperature: ≤120℃

Explosion proof type: Ex d II CT3~T6, Ex ia II CT3~T5.

Protection: IP66 or IP68

Flange size is optional.
