UQK-652-C/S Type Float Level Controller
- Category:Marine Level Gauge
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Packing Details:Carton Packaging.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
It is used to carry multipoint control or alarm the level in the tank.
Main Technical Specification:
Control range:60 ~3000mm
Lower dead zone:50mm
Upper dead zone:≤ 40mm
Float diameter: 25mm,45mm,52mm,60mm
Protected pipe diameter: 60mm,76mm
Working temperature:≤ 100 centigrade
Nominal pressure:1.0MPa
Medium gravity:≥ 0.8
Contact point capacity: AC220V 1.0A
Contact form:SPST SPDT
Number of control point:1~3
Protection:IP66 /IP68
Ex ia II CT3~6 Exd II CT6

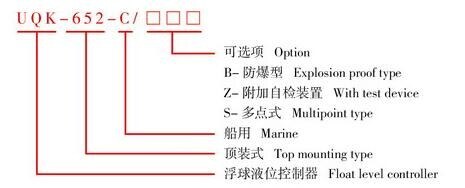

Model Sign:
