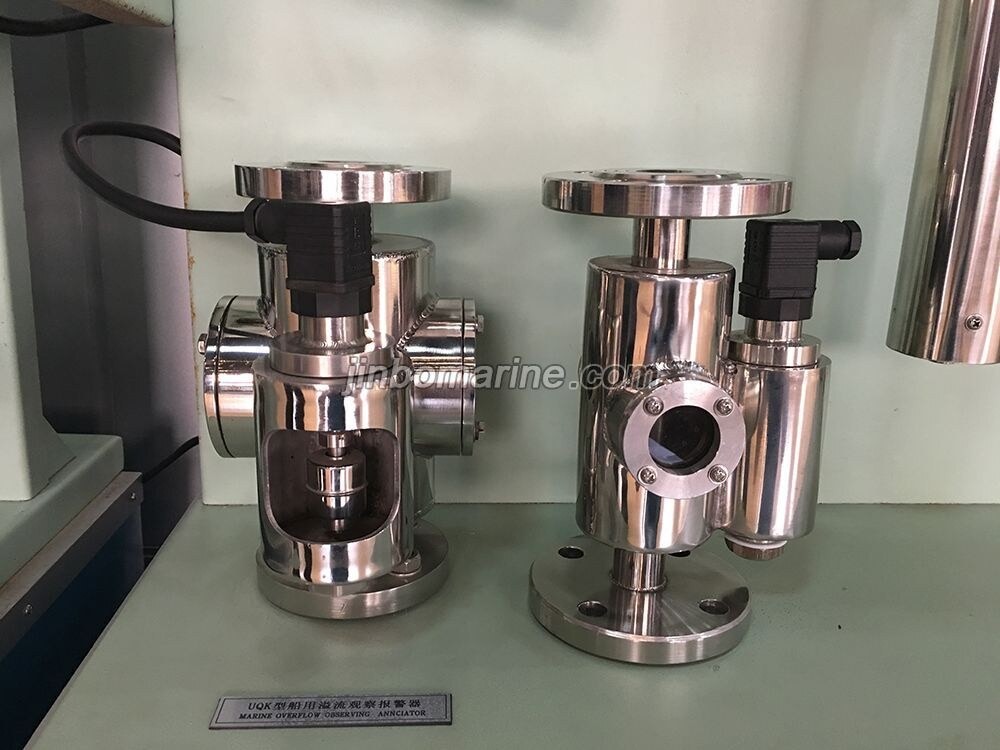

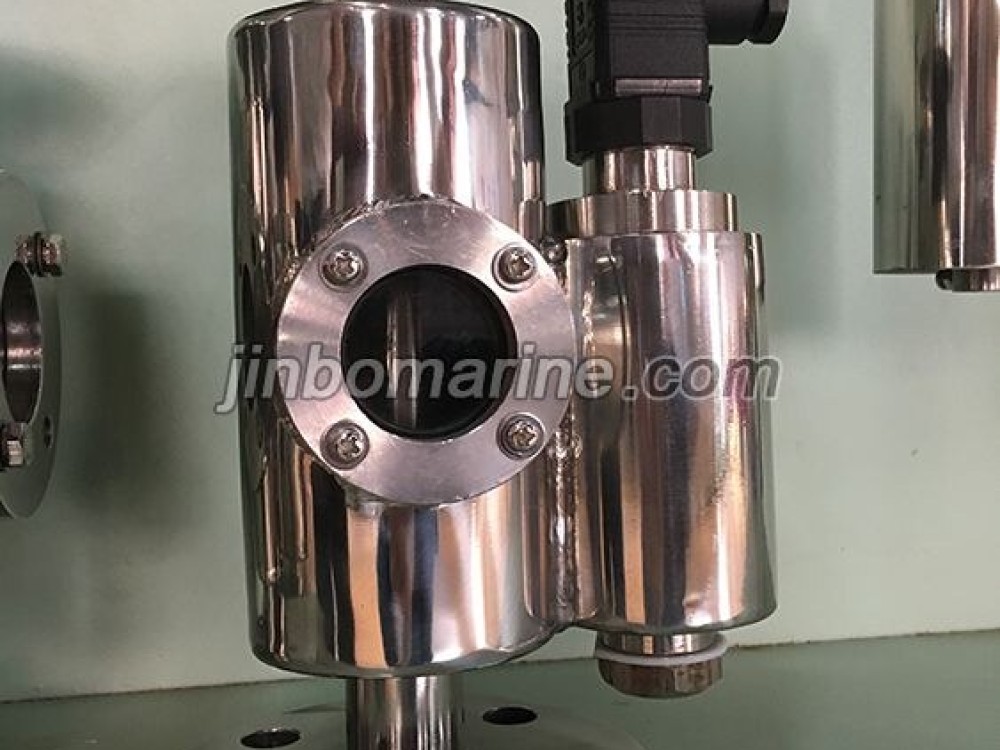

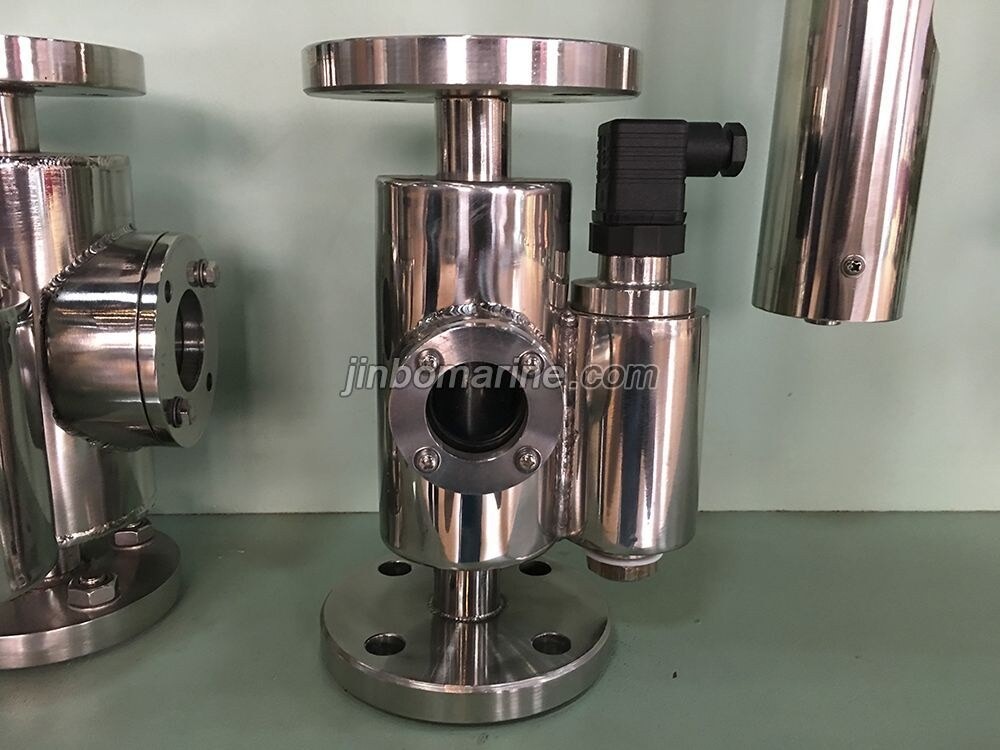

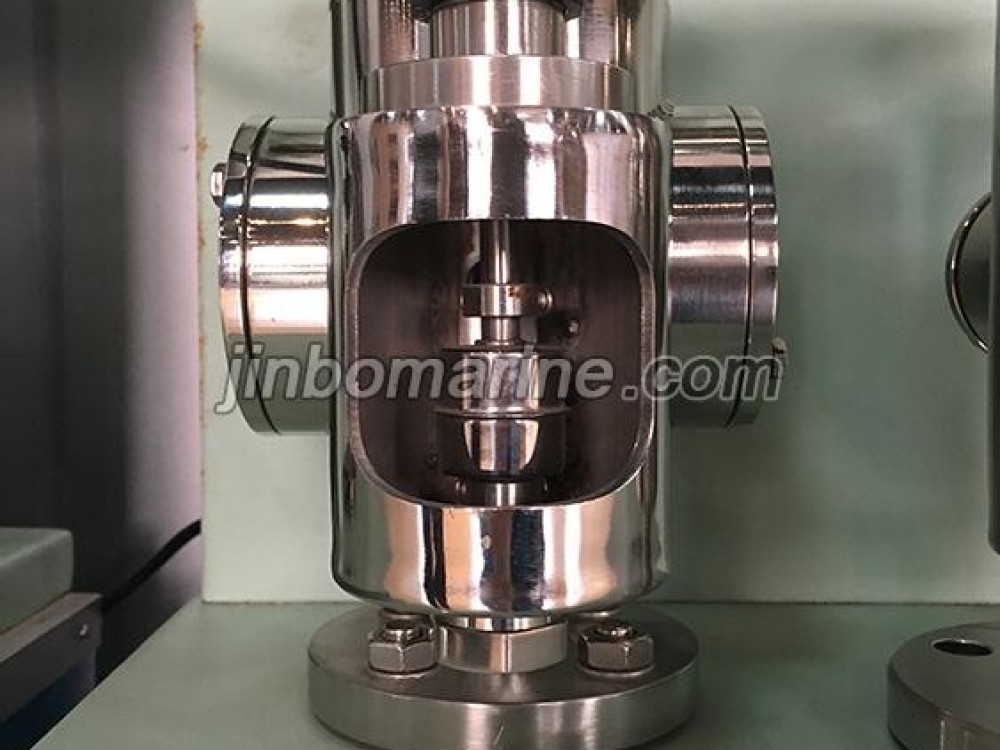

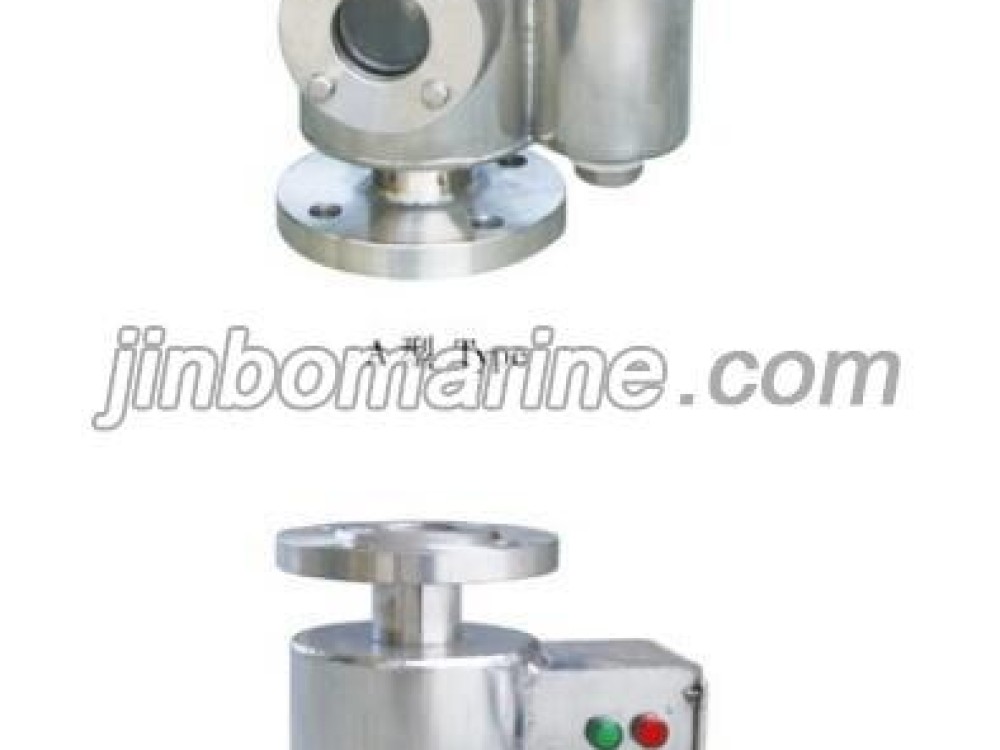

UQK Type Marine Overflow Observing Announciator
- Category:Marine Level Gauge
- Certificate:CCS,GL,LR,BV,ABS,NK,DNV,RINA,KR and EC certificate etc.
- Delivery Time:About 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
It is a device combined overvlow observing indication device and level alarm,with compact structure,safey and practicality.
Main Technical Specification:
Nominal diameter: DN 32~250mm
Contact point capacity:AC220V 1.0A
Contact type:SPDT
Nominal pressure :0.2MPa
Medium temperature:equal or less than 100 centigrade
Medium gravity:equal or greater than 0.8
Medium viscosity:Equal or less than 0.02 Pa.s
Connection flange:CB/T46-2007 GB2506-2005
