US Type Heavy Duty Wire Rope Thimbles G-414

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specifications

Material: Q235

Finish: Hot Dip Galvanized or Painting

Size: 1/8" to 1 1/4"

Used for Wire rope, mooring rope.

Size Table

Rope Dia.(in.) Weight
/100(lbs.) 		Dimensions(in.)

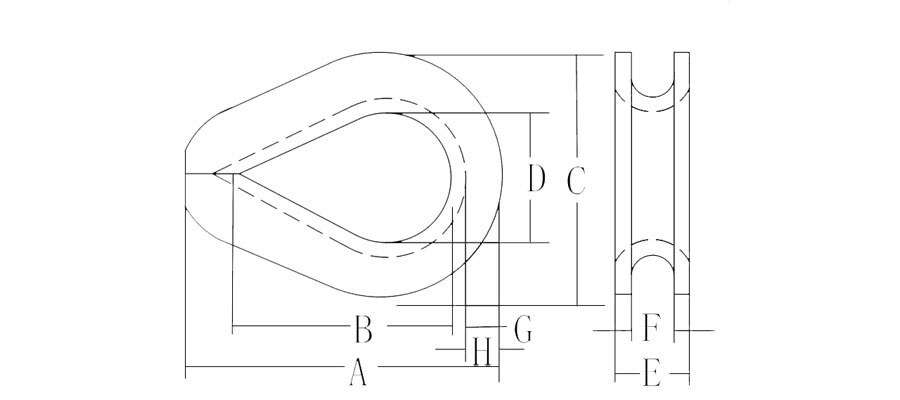

A B C D E F G H
*1/4 6.5 2.19 1.63 1.5 0.88 0.44 0.28 0.06 0.23
*5/16 11.8 2.5 1.88 1.81 1.06 0.55 0.34 0.08 0.28
*3/8 21.6 2.88 2.13 2.13 1.13 0.66 0.41 0.11 0.34
*7/16 34.7 3.25 2.38 2.38 1.25 0.74 0.47 0.13 0.38
*1/2-9/16 51 3.63 2.75 2.75 1.5 0.92 0.53 0.14 0.41
*5/8 75.7 4.25 3.25 3.13 1.75 1.03 0.66 0.16 0.5
*3/4 158.1 5 3.75 3.81 2 1.3 0.78 0.22 0.66
7/8 177.8 5.5 4.25 4.25 2.25 1.47 0.94 0.22 0.75
1 313.9 6.13 4.5 4.94 2.5 1.75 1.06 0.25 0.88
1-1/8-1-1/4 400 7 5.13 5.88 2.88 1.94 1.31 0.25 1.13
1-1/4-1-3/8 811 9.06 6.5 6.81 3.5 2.35 1.44 0.38 1.13
1-3/8-1-1/2 1294.8 9 6.25 7.13 3.5 2.78 1.56 0.5 1.13
1-5/8 1700 11.25 8 8.13 4 3.02 1.72 0.5 1.38
‘1 3/4 1775 12.19 9 8.5 4.5 3.06 1.84 0.5 1.31
1-7/8-2 2775 15.13 12 10.38 6 3.38 2.09 0.5 1.5
’2 1/4 3950 17.13 14 11.88 7 3.87 2.38 0.63 1.63
