US Type Screw Pin Anchor Shackle G209
- Category:Shackle
- Material:45# Steel and 40Cr Steel
- Packing Details:Wooden Box
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Similar Name
US Type Bolt Anchor Shackle G-209
US Type Bow Shackle G-209
US Type Horseshoe-shaped Shackle G-209
High Strength Shackle G-209
Alloy Steel Shackle G-209
Main Specification:
- U type body and a lateral pin.
- Drop Forged
- 45# Steel and 40Cr Steel
- Used in lifting or fasten cargo or machinery purpose.

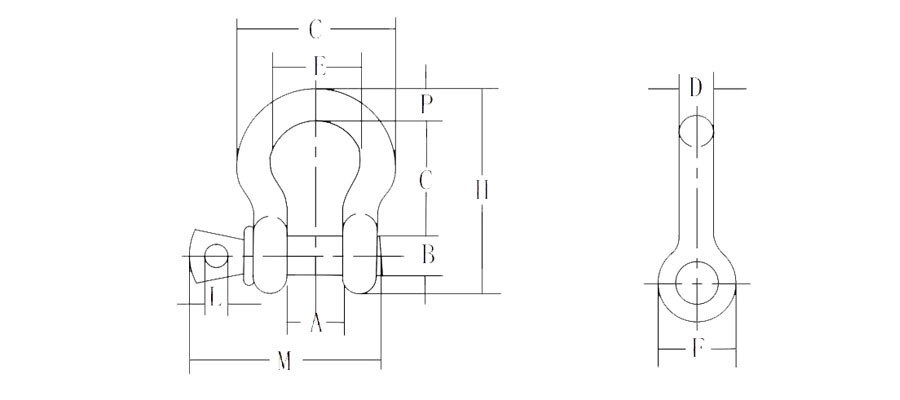

Size Table:
| Nominal Size(in) |
WLL (Tons) |
Dimension(in) | Weight（lbs) | ||||||||||
| A | B | C | D | E | F | G | H | L | M | P | G209/S209 | ||
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.14 | 0.19 | 0.06 |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.43 | 0.25 | 0.1 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.71 | 0.31 | 0.19 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.02 | 0.38 | 0.31 |
| 7/16 | 1 1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.37 | 0.44 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 0.5 | 0.72 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 | 3.34 | 0.69 | 1.37 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 | 3.97 | 0.81 | 2.35 |
| 7/8 | 6 1/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 | 4.5 | 0.97 | 3.62 |
| 1 | 8 1/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.13 | 1.06 | 5.03 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.71 | 1.25 | 7.41 |
| 1'1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 | 6.25 | 1.38 | 9.5 |
| 1 3/8 | 13 1/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.83 | 1.5 | 13.53 |
| 1 1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 | 7.33 | 1.62 | 17.2 |
| 1 3/4 | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 | 9.06 | 2.25 | 27.78 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.35 | 2.4 | 45 |
| 2 1/2 | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13 | 3.13 | 85.75 |
