VHF 1200

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

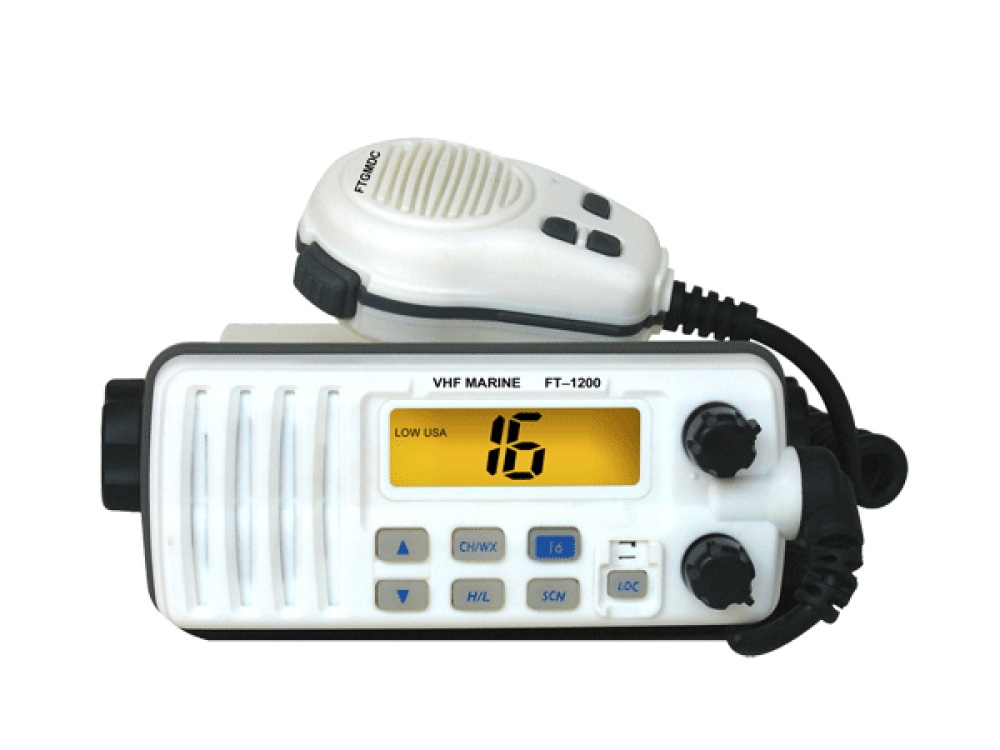

VHF 1200

(1).Function

1.Dual-Watch and Tri-Watch
2.All US, International and Canadian , 10 Weather Channel
3.One button change Channel 16 and Channel 9.
4.Except 88 dedicated channels , user-program 100 channels.
5.Priority scan.

(2).Overall Specifications

Frequency coverage： Tx： 156.025-157.425 MHz
Rx ：156.050-163.275 MHz
Modulation method： 16K0G3E
Channel spacing： 25kHz
Power supply： 13.8VDC

Transmit Power consumption :


High-power： 5.5A（13.8VDC）
Audio power： 1.5A
Frequency tolerance：±10PPM（-20℃~ 60℃）
Operating temperature range: –20°C to +60°C
Dimensions：153（W）X 67（H）X 132（D）mm
Weight： 825g

(3).Transmitter Specifications

Output power： 25W / 1W
Modulation system： Varactor frequency modulation
Maximum frequency offset： ±5.0KHZ
Parasitic radiation： ≤ -70dB

(4).Receiver Specifications

Receiving system： Double super heterodyne
Sensitivity： 0.22 uV（Typical）, 12dB SINAD
Squelch sensitivity： ≤ 0.22 uV
Adjacent channel selectivity：≥ 70dB
Harmonic effect suppression：≥ 70dB
Intermodulation rejection ratio：≥ 70dB
Audio output power： 4.5W（during distortion 10%）
Audio output impedance： 4Ω

Note: Specifications are subject to change without notice.
