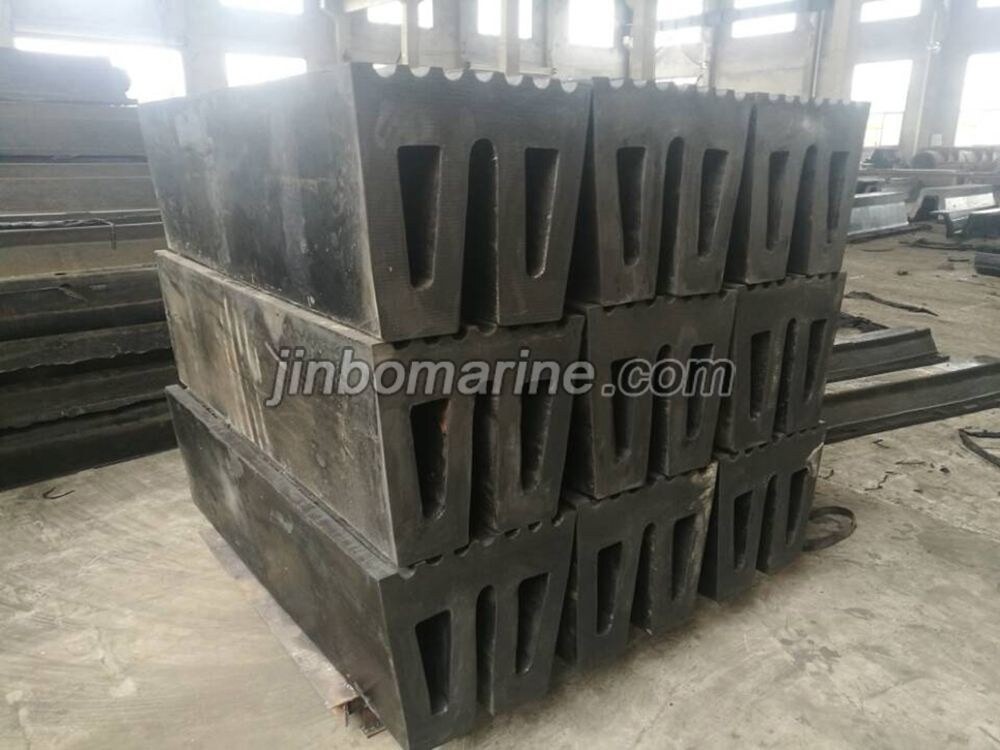

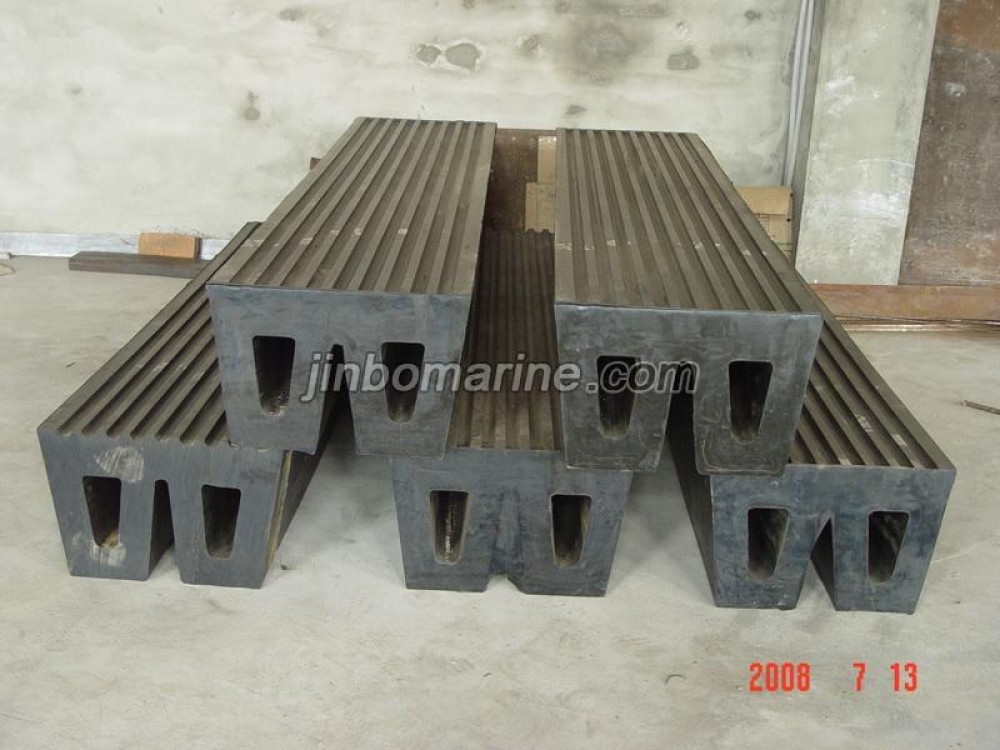

W Type Rubber Fender

The W type rubber fender is typically mounted to a dock or a ship to counteract the collision force between the dock and the ship generated during mooring and berthing,thus preventing ships and docks from being damaged.

The marine fender offers high energy absorption and low reaction force.

It is convenient for installation and maintenance.

1.High energy absorption, low reaction force.
2.Easy to be installed and maintained

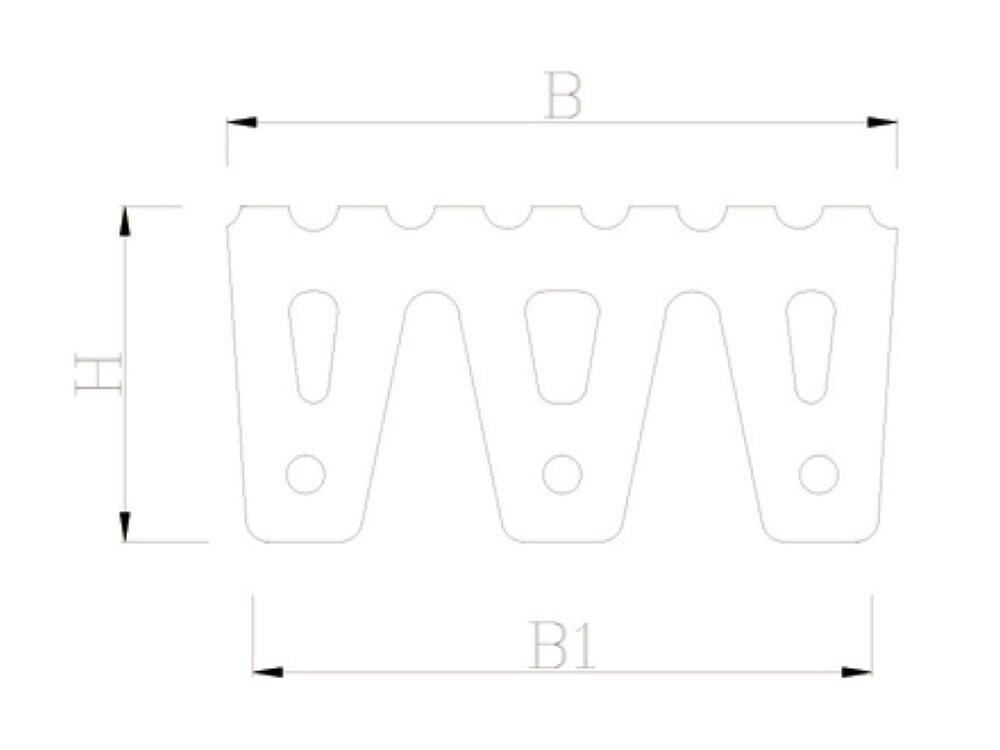

Type	Size(mm)
	B	B1	H	L
W300H	300	426	300	300-2000
W330H	400	420	330	300-2000
W450H	500	420	450	300-2000

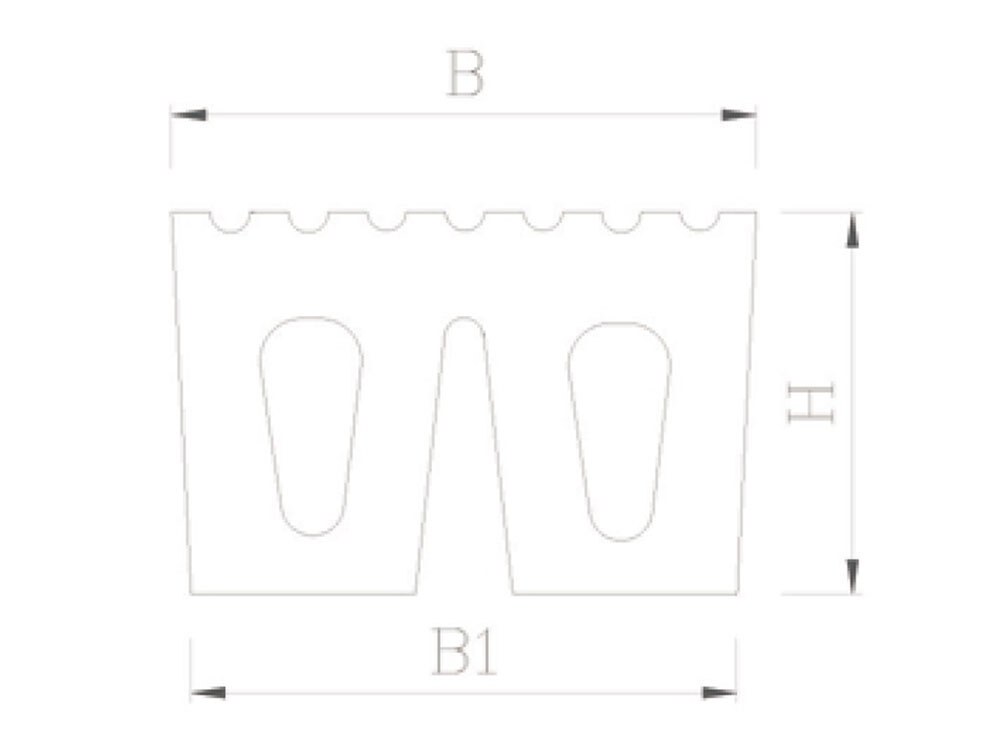

Type	Size(mm)
	B	B1	H	L
W300H	600	546	300	300-2000
W400H	600	550	400	300-2000
