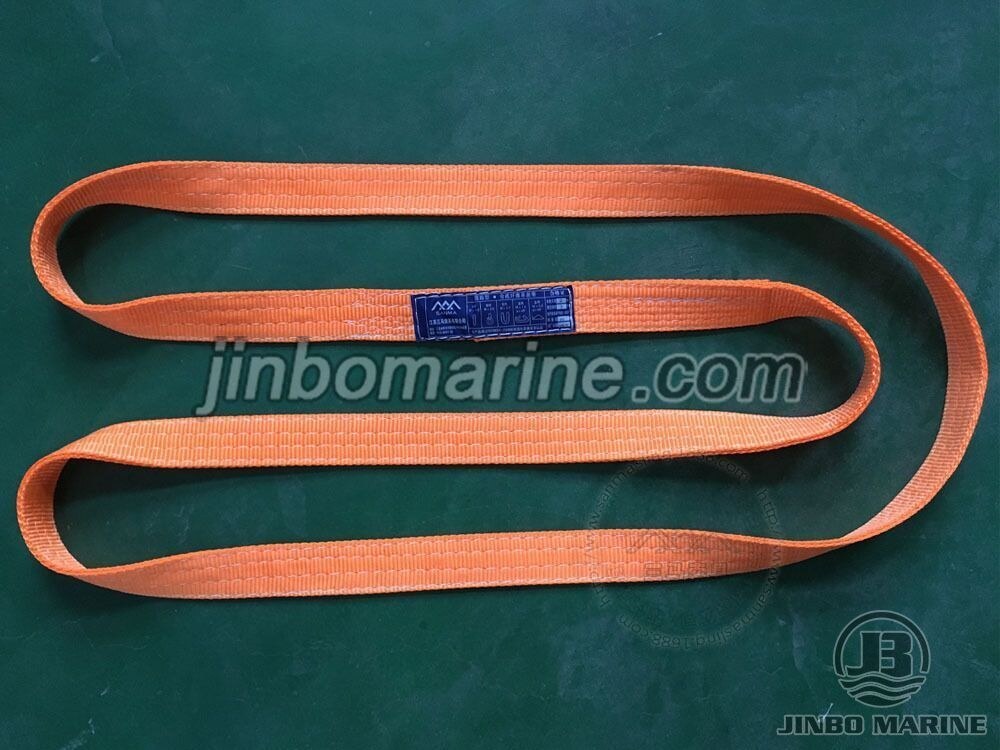

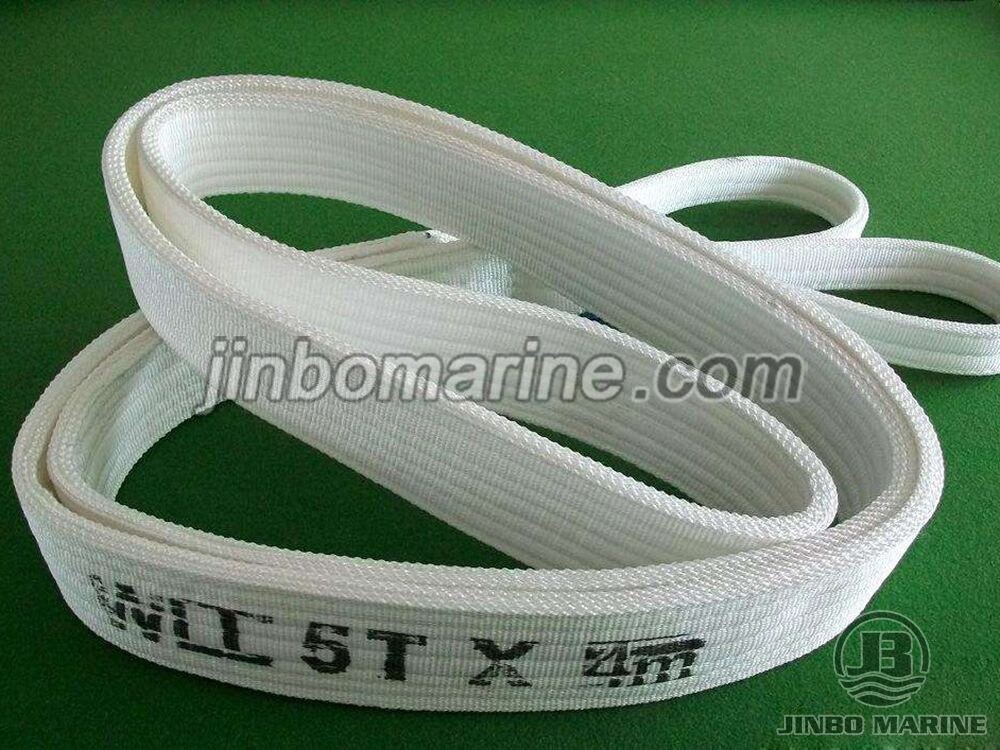

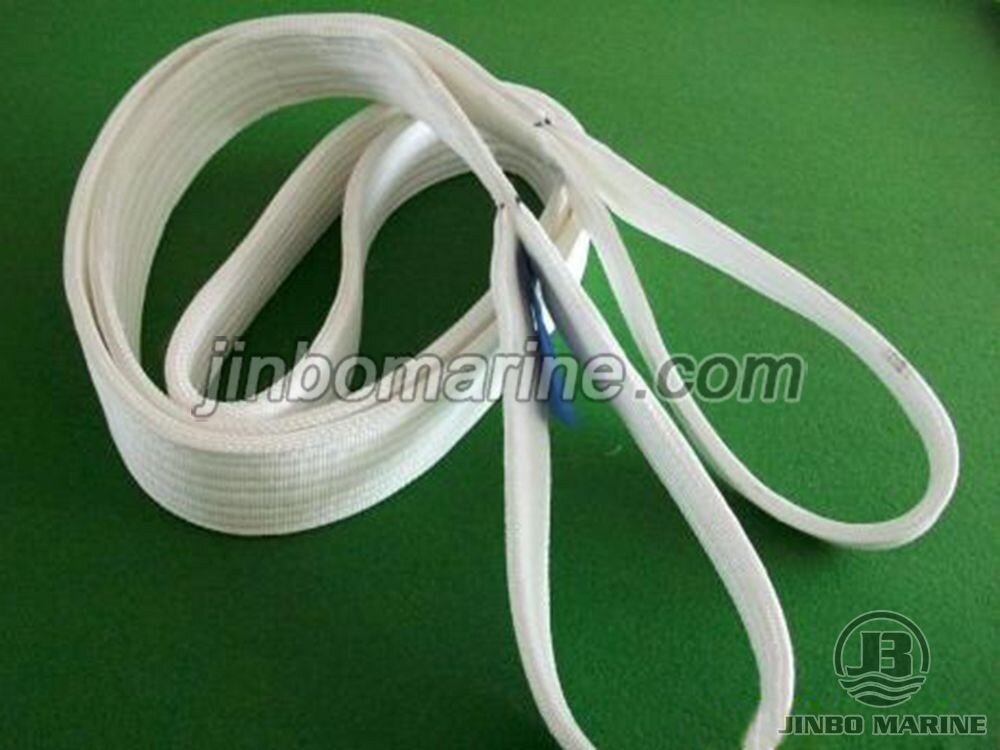

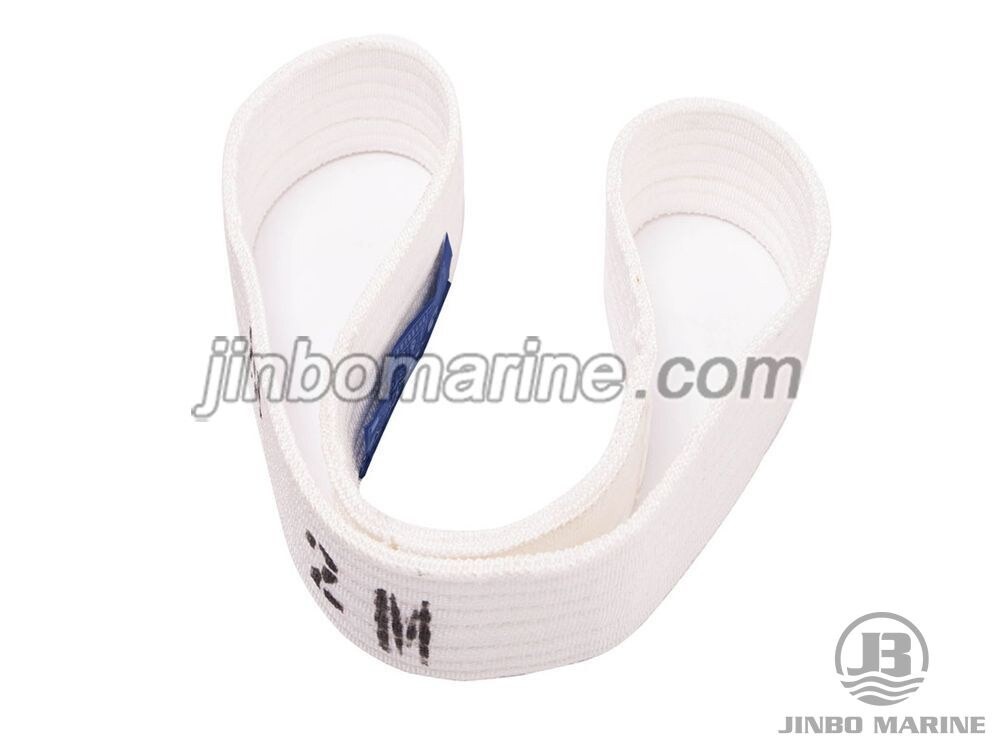

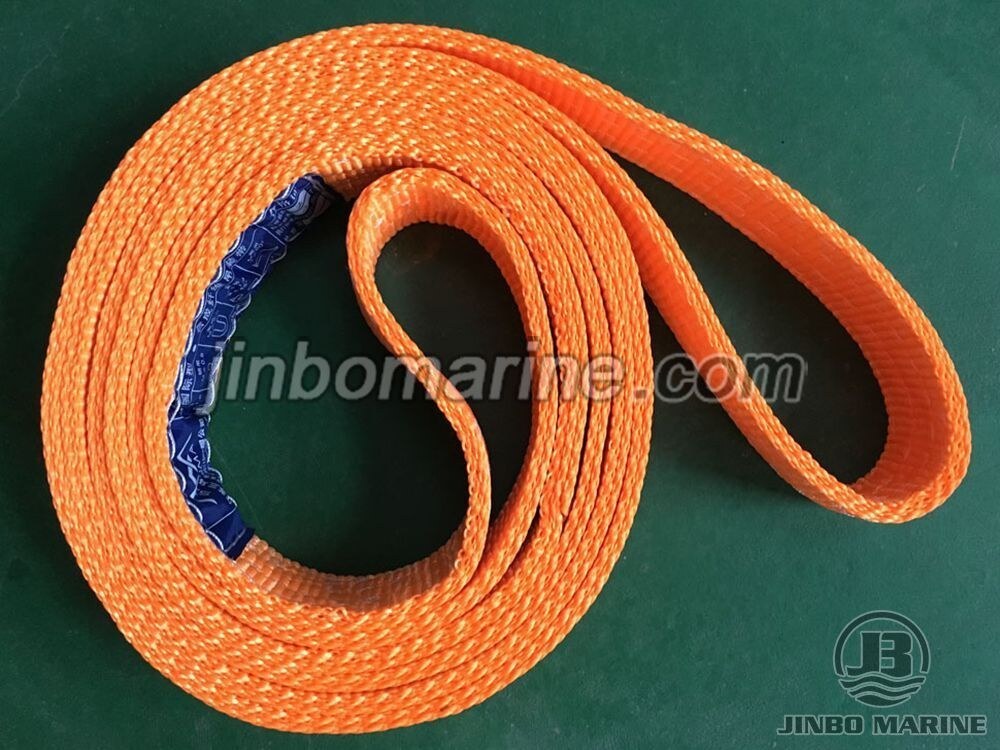

W04 Heavy Endless Type Flat Sling

  • Category:Chain Sling
  • Material:Cotton, nylon, synthetic fiber, polyester fiber
  • Standards:JB/T8521.1-2007
  • Certificate:CNAS, API, CCS, DNV.GL, KR, BV, CE, PCT.GOST, JIS, GS
  • Packing Details:Carton and composite pallet
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:


1. It is especially suitable for the lifting of circular objects.
2. The strength and weight are relatively high, light and soft, and easy to use in a small space.
3. The slings of the flexible slings are mostly hoisted and the slings are evenly stressed, so that the working life of the slings is longer.
4. There are many lifting methods, which can also be used to pull the hanging objects.
5, can be attached to the anti-wear and anti-cut protective sleeve.
6, no electricity, no risk of electric shock.

7. The outer surface of the flexible lifting belt is fine, and the smooth object will not cause damage, and will not cause damage to the vulnerable object.

Performance:

Strength: Flat sling with 1T-30T round sling with 1T-300T
Bandwidth: 25mm-250mm
Elastic elongation: <10% under rated load 2%-3% under ultimate working force
Load identification: During use, the label on the sling can be worn to identify the tonnage through the color of the sling jacket.
Working temperature: -40~100°C Safety factor: 5:1 6:1 7:1

Data sheet:

Art.No. Working Load Limit(kg) Approx Width(mm) Minimum Length L(m)
4、5、6:1 7:01
W04-02 2000 25 30 1
W04-04 4000 50 60 1
W04-06 6000 75 90 1
W04-08 8000 100 120 1.5
W04-10 10000 125 150 1.5
W04-12 12000 150 180 1.5
W04-16 16000 200 240 2
W04-20 20000 250 300 2
W04-24 24000 300 300 2
