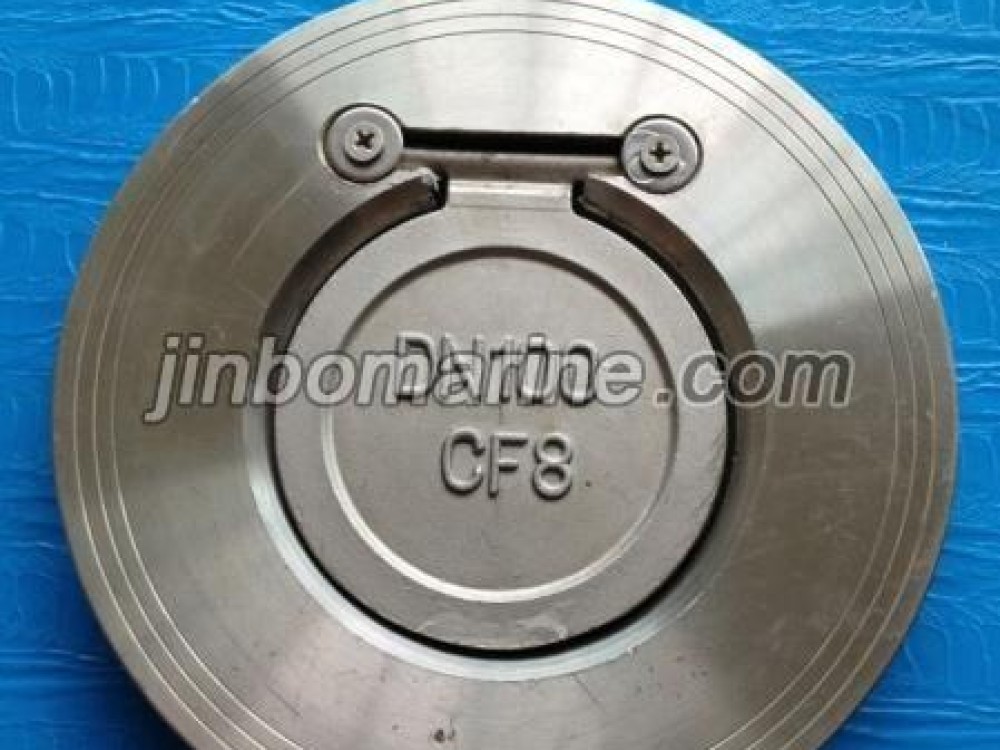

Wafer Single Disc Check Valve
- Category:Check Valve
- Material:WCB, Stainless Steel, Bronze
- Standards:API 594/API 6D，ISO 14313
- Certificate:Mill Certificate
- Packing Details:Plywood Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Wafer Single Disc Check Valve:
Wafer Single Disc Check Valve is simple in structure, beautiful appearance, light weight, convenient in installation, etc. This valve is mainly applicable to water supply system, petroleum, chemical industry, metallurgy, etc. that with limited installment space.
Technical Specification:
Size:DN15~DN400
| Nominal Pressure(Mpa) | Test Pressure (Mpa) | Temperaure | Applicable Medium | ||
| Body | Seat | Metal Sealing | Soft Sealing | ||
| 1 | 1.5 | 1.1 | ≤400℃ | ≤120℃/≤250℃ | Oil, Water, Acid, Alkali |
| 1.6 | 2.4 | 1.76 | |||
| 2.5 | 3.75 | 2.75 | |||
| 4 | 6 | 4.4 | |||
Standard:
Design Standard:API 594/API 6D，ISO 14313
Temperature & Pressure:ASME B16.34
Face to Face:GB/T9113.1-2000,ASME B 16.10
Flange Standard:ASME B 16.5, GB, DIN, JIS
Test Standard: API 598
Main Parts & Material:
1.Body--WCB, Stainless Steel, Bronze
2.Disc---WCB,Bronze, Stainless Steel
3.Stem---Stainless Steel
4.Spring---Stainless Steel (for II type)
5.Rubber Seat---NBR, EPDM, NEOPRENE, Teflon, Stainless Steel
