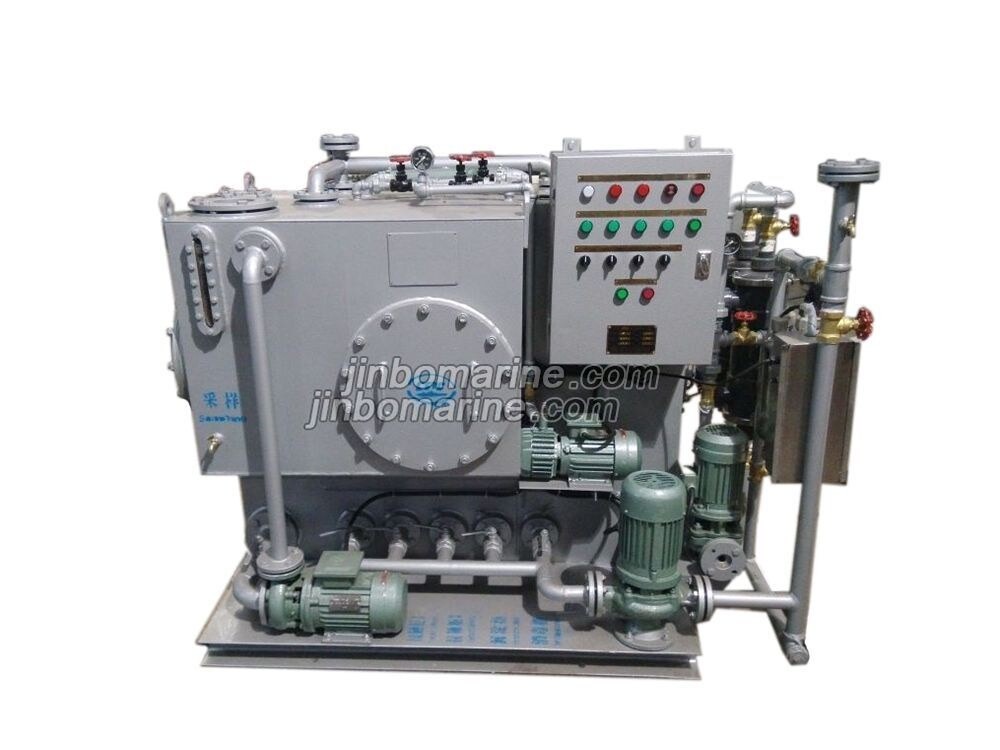

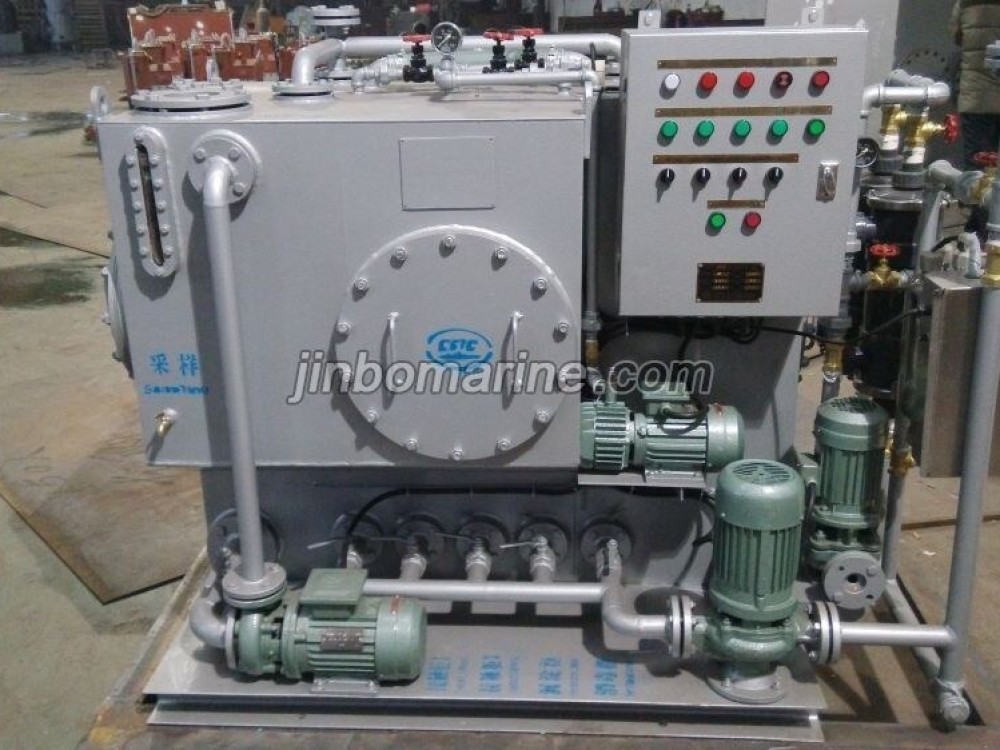

WCMBR Type Marine Membrane Sewage Treatment Plant
- Category:Sewage Treatment Plant
- Standards:IMO.MEPC.158 (55)
- Certificate:CCS,BV,GL,EC,mill certificate etc.
- Delivery Time:about 10 to 25 days,depends on your voltage requirment.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Wcmbr Type Marine Membrane Sewage Treatment Plant.pdf
Details
General Description:
The method of combining catalytic oxidation and physical disinfestations and sterilization is adopted in the WCMBR series domestic sewage treatment device; it treats the domestic sewage of kitchens, W.C.,and base room from ship. Since filler is set in the aeration chamber, the chlorine adding sterilization si adopted,so compare with the products of the same kind, it has the characteristics of small cubage, light weight, compact structure and without secondary pollution. The discharged water after the treatment of the device has reached the effluent standard stipulated internationally, and it accords with the requirement of Resolution MEPC.159(55) of International Marine Organization Environmental Protection Commission, and International waste fluid effluent standard.
Model | WCMBR6 | WCMBR10 | WCMBR15 | WCMBR20 | WCMBR25 | WCMBR30 | WCMBR40 | WCMBR50 | WCMBR60 |
People allowed | 6 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 |
Hydraulic
Load L/d |
490 | 840 | 1190 | 1540 | 1890 | 2240 | 3080 | 3780 | 4480 |
Peak Load L/h | 62 | 105 | 149 | 193 | 237 | 280 | 385 | 470 | 560 |
Average Load L/d | 20.5 | 33.8 | 49.6 | 64.2 | 78.8 | 93.4 | 128.4 | 157.5 | 186.7 |
Organic kg/d | 0.245 | 0.42 | 0.595 | 0.77 | 0.945 | 1.12 | 1.54 | 1.89 | 2.24 |
Power Supply | AC380V/50Hz | ||||||||
Control Model | Manual or Automatic | ||||||||
Quality
of effluent |
TSS<35mg/l BOD5<25mg/l Coliform<100/100ml Phvalue:6-8.5 | ||||||||
Dry weight(kg) | 950 | 1100 | 1200 | 1250 | 1300 | 1400 | 1550 | 1800 | 2000 |
6536 | 6536 | 6536 | 6536 | 6536 | 6536 | 6536 | 6536 | 6536 | 6536 |
Model |
WCMBR 80 |
WCMBR 100 |
WCMBR 150 |
WCMBR 200 |
WCMBR 250 |
WCMBR 300 |
WCMBR 400 |
WCMBR 500 |
WCMBR 600 |
People allowed | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
Hydraulic
Load L/d |
5880 | 7410 | 10920 | 14640 | 18240 | 21700 | 30800 | 38500 | 46200 |
Peak Load L/h | 735 | 928 | 1366 | 1830 | 2280 | 2712 | 3850 | 4813 | 5775 |
Average Load L/d | 245 | 308.8 | 455 | 610 | 760 | 904.2 | 1283.4 | 1604.2 | 1925 |
Organic kg/d | 2.94 | 3.71 | 5.46 | 7.35 | 9.1 | 10.9 | 15.4 | 19.25 | 23.1 |
Power Supply | AC380V/50Hz | ||||||||
Control Model | Manual or Automatic | ||||||||
Quality
of effluent |
TSS<35mg/l BOD5<25mg/l Coliform<100/100ml Phvalue:6-8.5 | ||||||||
Dry weight(kg) | 2200 | 2950 | 3850 | 4100 | 5050 | 6050 | 6950 | 7980 | 8995 |
Wet weight(kg) | 8150 | 10450 | 14730 | 18380 | 22100 | 28222 | 41316 | 59529 | 77323 |
