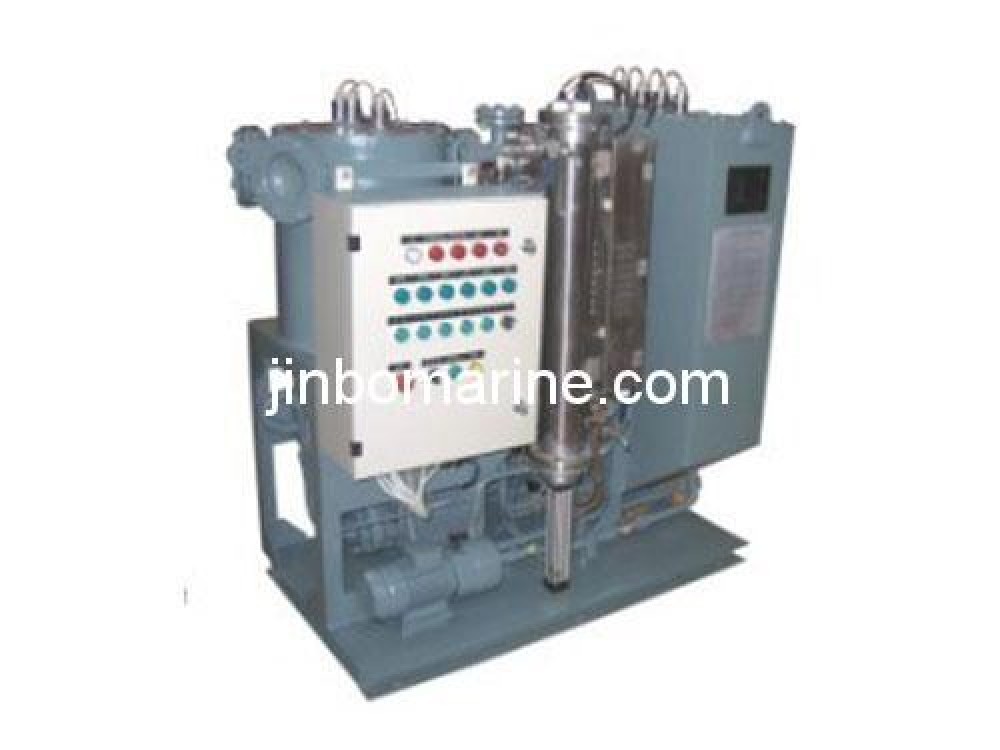

WCX-B Series Sewage Treatment Plant

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

WCX-B series sewage treatment plantadopts physical and chemical method to treat ship's domestic sewage.The structure type and technical performance of this device is designed and manufactured according to GJB 2957-97 marine sewage treatment system general specification,while satisfies the requirement of IMO.resolution MEPC.159 (55).This device has features of small size,light weight and compact structure,especially suitable for small installation space room or smaller ships.

WCX-B series sewage treatment is operated in a fully automatic control way and set up with alarm device.When the sewage load in the tank is to show anomalons high water,the alarm device will have alarm signal. This device is passive contact and can provide remote alarm signal. The water discharging for this device meets the IMO standard.

The water discharging meets the international stipulated discharging standard,and accords with the request of MEPC 159 (55) resolution of international maritime organization environmental committee and international waste liquid discharging standard. The device flushing water is applicable to clean seawater and fresh water.

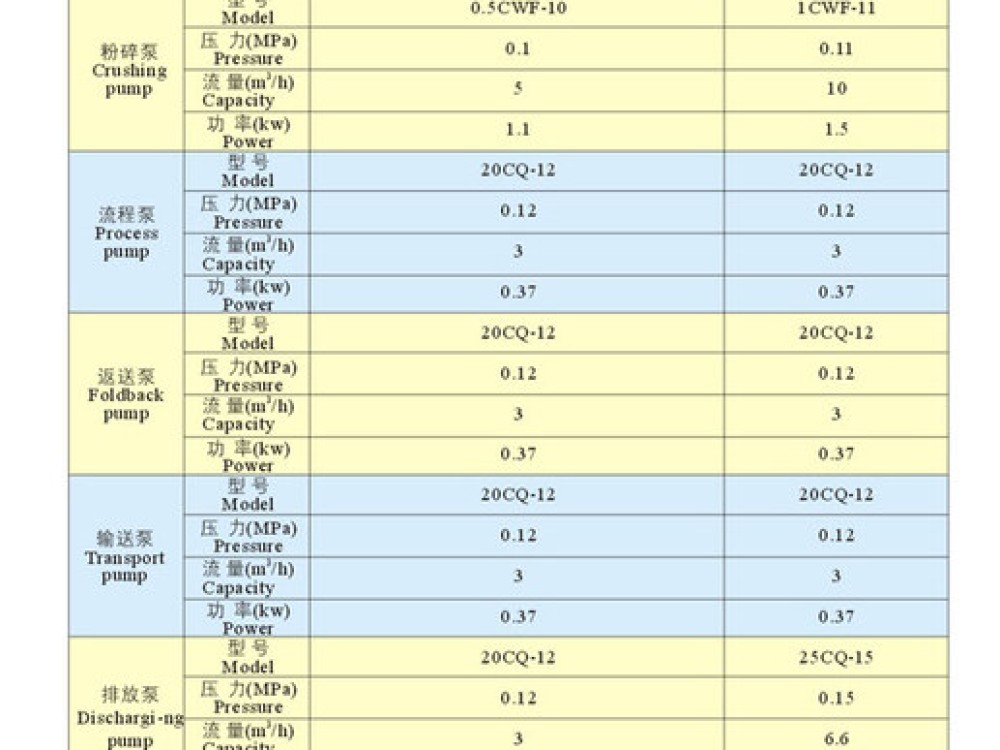

Techncial data:

Model WCX-6B WCX-12B WCX-25B WCX-36B WCX-50B WCX-72B
Suitable Personnel 6 12 25 36 50 72
Treatment Load
M3/d 		0.42 0.84 1.75 2.52 3.5 5.04
Organic Treatment
kgBOD/d 		0.21 0.42 0.875 1.26 1.75 2.5
Discharge Standard Coli Group(MPN)≤100/100ml;
BOD≤25mg/L;SS≤35mg/L; PH:6-8.5
Back Flushing Water Pressure 0.25MPa-0.4MPa
Power Supply AC 3Ph/380V/50Hz or AC 3Ph/440V/60Hz
Control Mode Automatic/manual

Size:

Model Overall size Base Szie Sewage Inlet Vent Emergency
overflow outlet 		Discharge Out Back
flushing inlet
L B H a b DN
WCX-6B 1046 685 1351 1000 685 80 80 32 20 20
WCX-12B 1146 685 1351 1100 685 80 80 40 20 20
WCX-25B 1246 685 1351 1200 685 100 100 40 20 20
WCX-36B 1396 685 1351 1350 685 100 100 40 20 20
WCX-50B 1496 770 1351 1450 770 100 100 50 20 25
WCX-72B 1696 770 1351 1650 770 100 100 50 20 25
