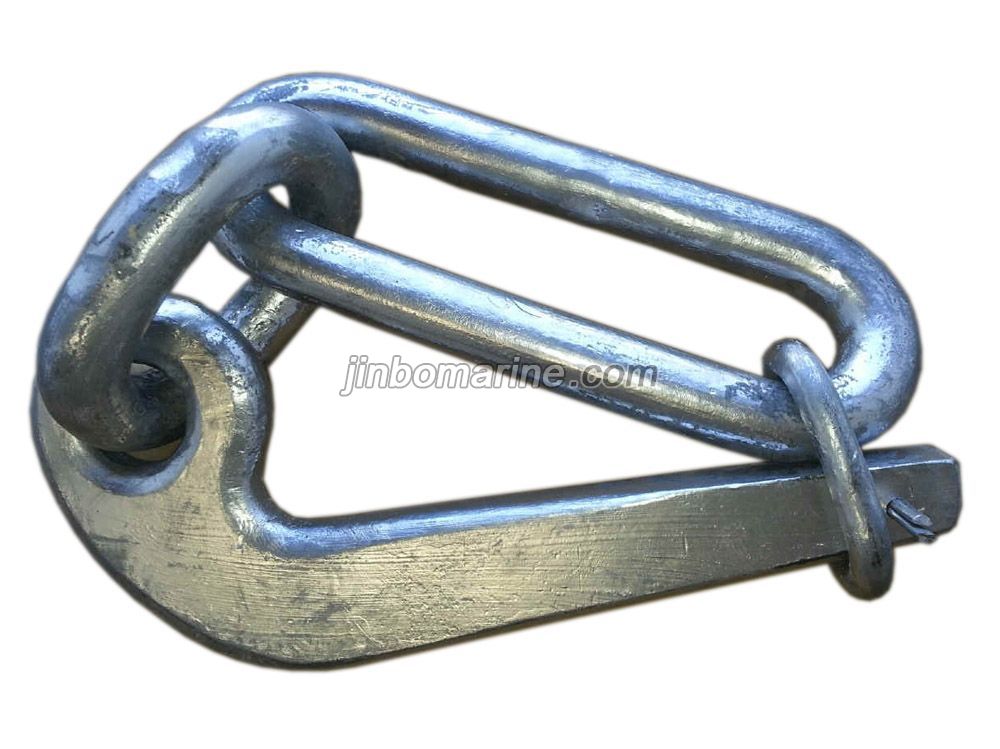

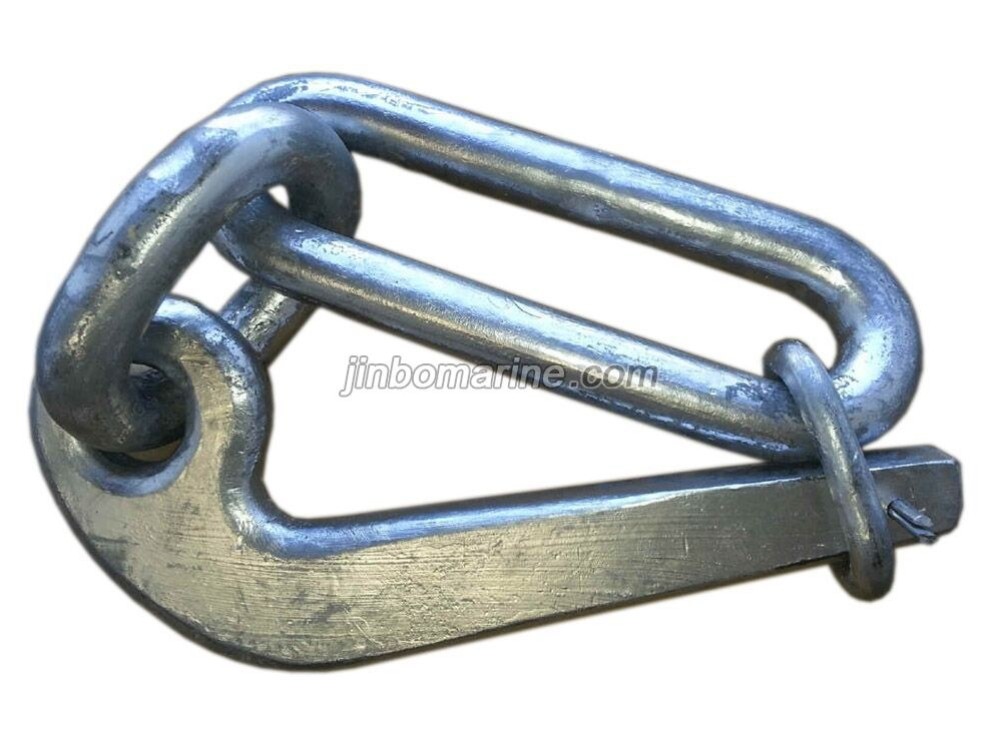

Wire Rope Pelican Hook

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Wire Rope Pelican Hook for wire size 1/2" to 2 1/8"

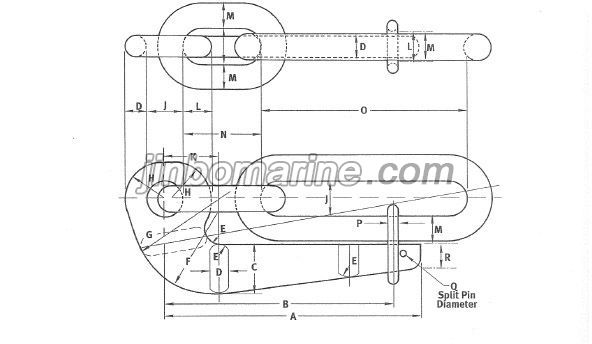

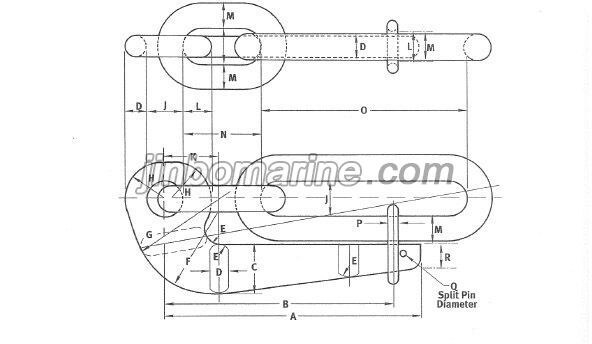

Table of sizes and dimensions(in inches)

Wire Size A B C D E F G H J WLL(lbs)
1/2 5 4 1/2 1 7/16 1/4 1 1/2 2 3/4 11/16 4000
5/8 6 1/4 5 5/8 1 1/4 1/2 3/4 17/8 2 1/2 15/16 7/8 9500
3/4 7 1/2 6 3/4 1 1/2 5/8 7/16 2 1/4 3 1 1/8 1 11600
7/8 8 3/4 7 7/8 1 3/4 11/16 1/2 2 11/16 3 1/2 1 1/4 1 1/8 17000
1 10 9 2 13/16 9/16 3 1/16 4 1 15/32 1 5/16 19000
1 1/8- 1 1/4 11 1/4 10 2 1/4 15/16 11/16 3 1/2 4 1/2 1 11/16 1 1/2 25000
1 3/8 13 3/4 12 1/4 2 3/4 1 1/8 13/16 4 7/16 5 1/2 2 1/16 1 7/8 32000
1 5/8 16 1/4 14 5/8 3 1/4 1 3/8 15/16 5 1/2 6 1/2 2 7/16 2 1/8 39600
1 7/8 18 3/4 16 3/4 3 3/4 1 9/16 1 1/16 6 3/16 7 1/2 2 13/16 2 1/2 48000
2 1/8 21 1/4 19 4 1/4 1 15/16 1 5/16 6 11/16 8 1/2 3 3/16 2 3/4 70000
