WLG-421 Type Metallic Sheath Thermometer
- Category:Marine Temperature Instrument
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:

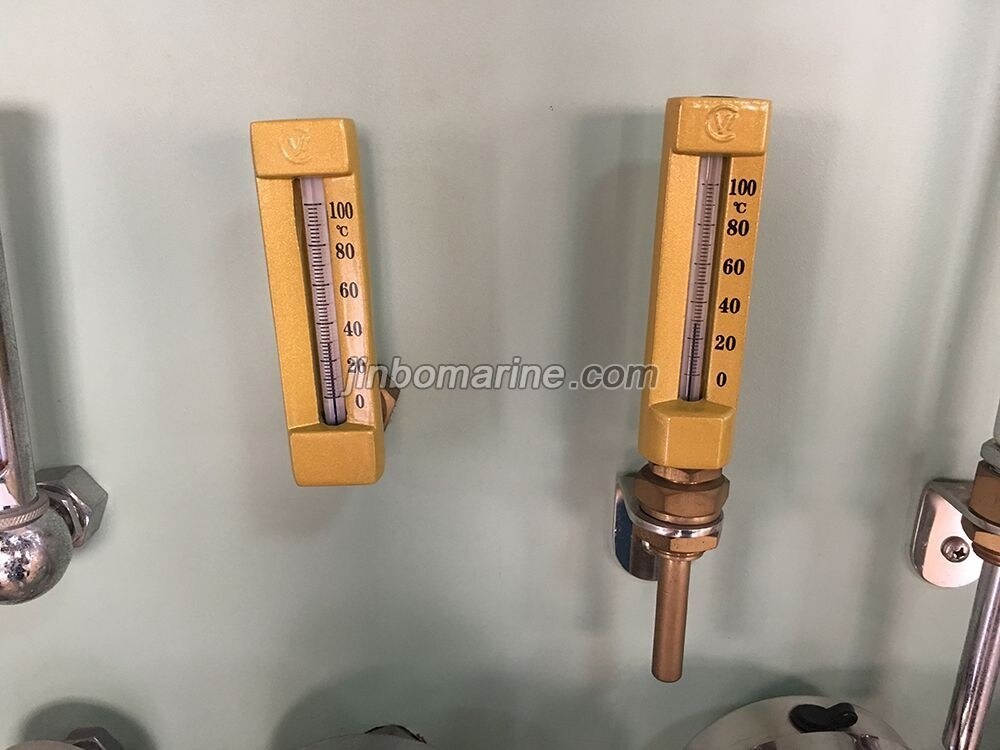

Metallic protector thermometer consists of glass thermometer and metallic protector.It is used to measure medium temperature of liquid,gas of tank and pipeline in ship and other industrial equipment.
Structure type: Straight type, 90 degree angle type, 135 degree angle type.
Main Technical Specification:
|
Measurement range (℃) |
Temperature sensor liquid | Model | Nonimal length(mm) | Connection size | |
| Upper body length | Lower body length | ||||
|
-50~50 -30~50 -30~100 -30~160 0~50 0~100 0~150 0~200 0~300 0~350 0~400 0~450 0~500 0~600 |
Organic liquid Mercury(Hg |
WLG-11-C | 130 ±2 |
25 30 40 60 80 100 120 160 200 |
G1/2" G3/4" M20x1.5 M27x2 |
| WLG-12-C | 150 ±2 | ||||
| WLG-13-C | 200 ±2 | ||||
| WLG-421-C | 110 ±2 | ||||
| WLG-422-C | 150 ±2 | ||||
| WLG-423-C | 200 ±2 | ||||
|
0~100 0~150 0~200 |
Organic liquid | WLG-1/2P-C | 110 | 40 | G1/2" |
| WLG-1/2PL-C | 110 | 100 | G1/2" | ||
| WLG-3/8-C | 70 | 25 | G3/8" | ||
|
0~500 0~600 |
Mercury(Hg) | WLG-162-C | 162 | 95 | G1/2" |
| WLG-212-C | 212 | 125 | G1/2" | ||
| WLG-242-C | 242 | 95 | G1/2" | ||
| Measuring accuracy: ±1~2 scale | |||||

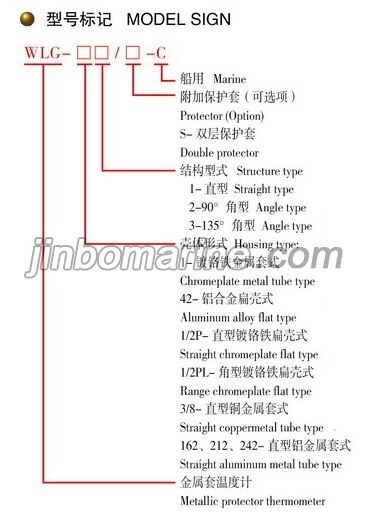

Model Design:
