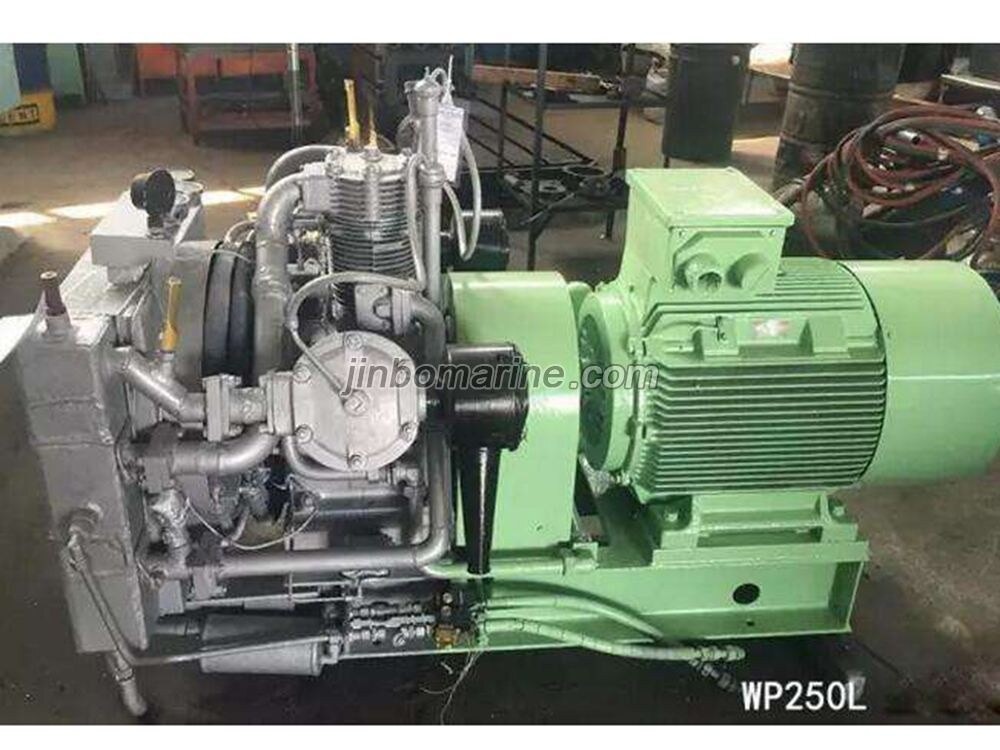

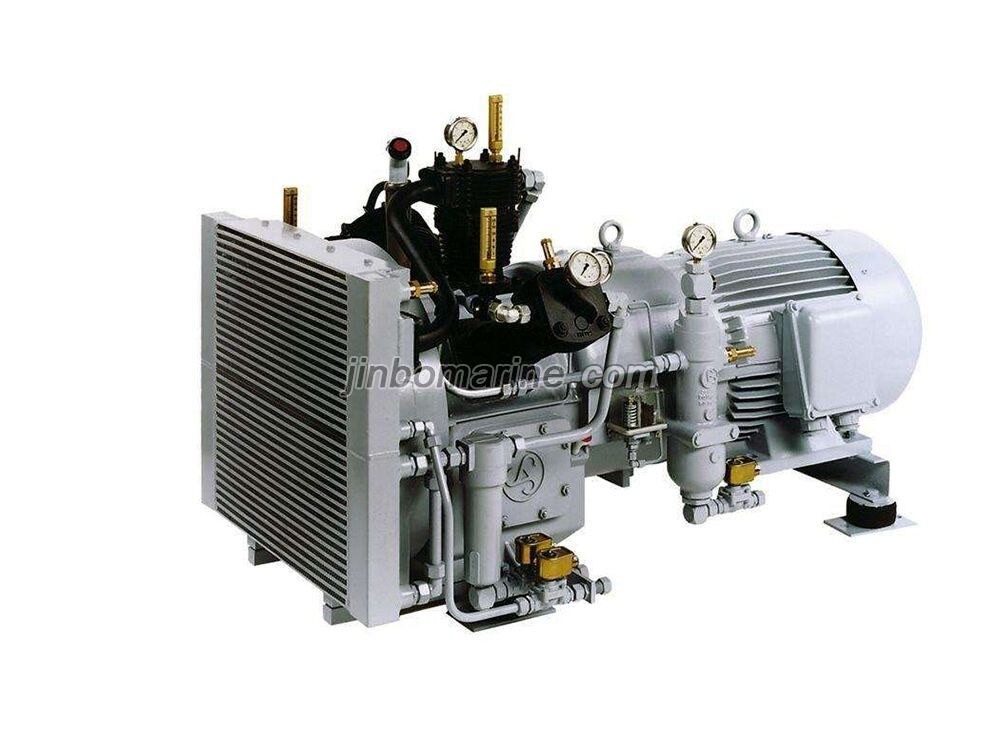

WP250L Large Capacity Medium Pressure Air Cooled Marine Air Compressor
- Category:Medium Pressure Air Cooled Marine Air Compressor
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Design Particulars:
Max Pressure 4.0Mpa
V-type/W-type arranged, Low vibration
Air-cooled type, avoid costs for water circuit
Lubrication system: splash/pressure oil lubrication
Performance data with 5% tolerance
Standard voltage and frequency: 380V/50HZ, 440V/60HZ
Technical Data:
| Model |
Pressure (MPa) |
Stages |
Speed (r/min) （50Hz） |
Speed (r/min) （60Hz） |
Capacity (m3/h) |
Power required (KW) |
Power of motor (KW) |
Cooling air required (L/min） |
Dimension (LxWxH) |
| WP18L | 3 | 2 | 970 | 12 | 2.8 | 3 | 12 | 884*640*534 | |
| 1150 | 14.3 | 3.2 | 4 | 14 | |||||
| 1450 | 18 | 3.8 | 5.5 | 18 | |||||
| 1750 | 22 | 4.8 | 5.5 | 22 | |||||
| WP25L | 3.0 | 2 | 970 | 16.5 | 3.6 | 4 | 17 | 884*640*534 | |
| 1150 | 20 | 4.2 | 5.5 | 19 | |||||
| 1450 | 24.5 | 5.4 | 7.5 | 25 | |||||
| 1750 | 30.5 | 6.4 | 7.5 | 30 | |||||
| WP32L | 3 | 2 | 970 | 20.6 | 4.7 | 5.5 | 21 | 930*640*534 | |
| 1150 | 25 | 5.6 | 7.5 | 25 | |||||
| 1450 | 31.5 | 6.8 | 7.5 | 31 | |||||
| 1750 | 38 | 8.2 | 11 | 39 | |||||
| WP80L | 3 | 3 | 870 | 44 | 9 | 11 | 42 | 1326*780*830 | |
| 970 | 50 | 10 | 15 | 46 | |||||
| 1170 | 64 | 13 | 15 | 60 | |||||
| 1470 | 80 | 15 | 18.5 | 69 | |||||
| 1770 | 92 | 18 | 18.5 | 83 | |||||
| WP100L | 3 | 3 | 870 | 59 | 12 | 15 | 53 | 1422*880*1086 | |
| 970 | 66 | 13.5 | 15 | 59 | |||||
| 1170 | 78 | 16 | 18.5 | 74 | |||||
| 1470 | 99 | 20 | 22 | 88 | |||||
| 1770 | 118 | 24 | 30 | 106 | |||||
| WP120L | 3 | 3 | 870 | 72 | 14.5 | 15 | 70 | 1422*800*1086 | |
| 970 | 81 | 16 | 18.5 | 78 | |||||
| 1170 | 98 | 19 | 22 | 88 | |||||
| 1470 | 121 | 24 | 30 | 116 | |||||
| 1770 | 145 | 30 | 37 | 143 | |||||
| WP150L | 3 | 3 | 870 | 90 | 18 | 18.5 | 89 | 1422*800*1086 | |
| 970 | 100 | 20 | 22 | 99 | |||||
| 1170 | 117 | 23 | 30 | 111 | |||||
| 1470 | 150 | 30 | 37 | 148 | |||||
| 1770 | 180 | 38 | 45 | 176 | |||||
| WP250L | 3 | 3 | 870 | 135 | 26.5 | 30 | 130 | 1590*930*1117 | |
| 970 | 150 | 29.5 | 30 | 145 | |||||
| 1170 | 180 | 37 | 45 | 180 | |||||
| 1470 | 225 | 44 | 45 | 217 | |||||
| 1770 | 275 | 53 | 55 | 264 | |||||
| WP300L | 3 | 3 | 870 | 180 | 33.6 | 37 | 155 | 2116*926*1026 | |
| 970 | 200 | 37.5 | 45 | 173 | |||||
| 1170 | 240 | 44 | 45 | 203 | |||||
| 1470 | 300 | 54 | 55 | 259 | |||||
| 1770 | 350 | 69 | 75 | 319 |
