WRY Series Hot Oil Pump
- Category:Hot Oil Transfer Pump
- Material:Carbon Steel, Alloy steel
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

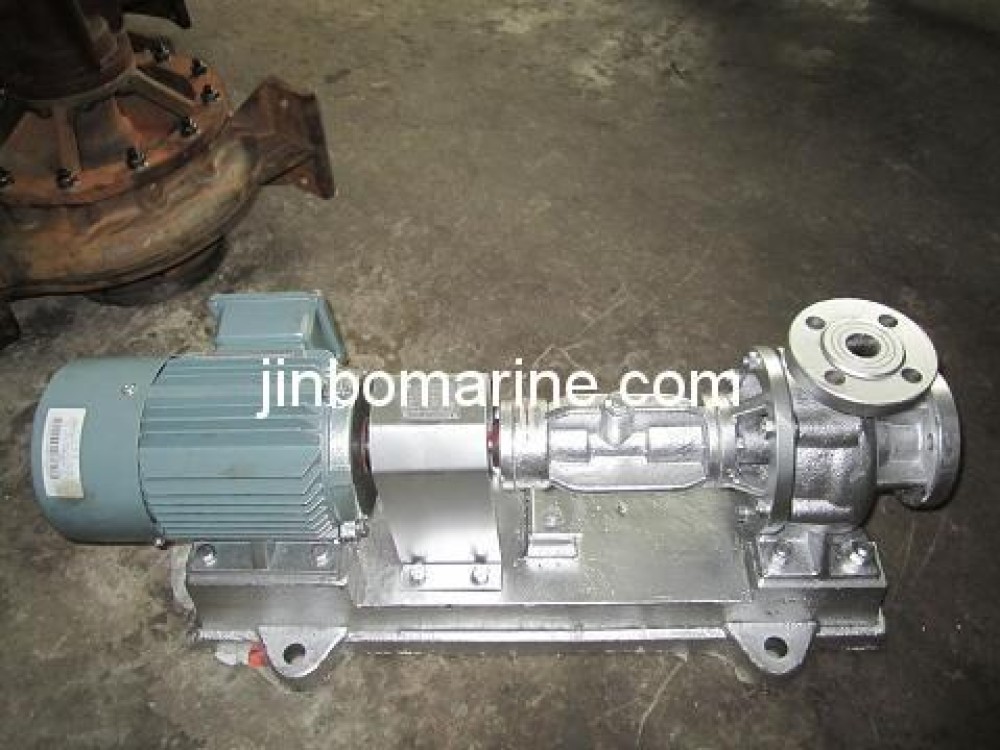

WRY Series Hot Oil Pump
General description
WRY series hot oil has been widely used in the heating system in China.It is widely used in Oil, Rubber, Resin, Textile, Printing, Construction,Road construction, Machinery and other industrial fields.Mainly used for transferring weak corrosion High temperature withoutsolid particles.The transport medium's temperature should not exceed 350C.
Model explanation
WRY 100-65-200
WRY: Air cooling hot oil pump
100: Inlet diameter mm
65: Outlet diameter mm
200: Impeller nominal diameter
Technical parameter
| Model | Capacity | Head | Speed | Power | Efficiency | NPSH | |
| WRY | m3/h | m | rpm | Shaft | Motor | % | m |
| 26-20-100 | 4.5 | 15 | 2825 | 0.45 | 0.75 | 40 | 0.8 |
| 50-32-150 | 8 | 22 | 2840 | 1.1 | 1.5 | 42 | 1.6 |
| 50-32-160 | 10 | 25 | 2840 | 1.6 | 2.2 | 42 | 1.8 |
| 65-40-160 | 12.5 | 25 | 2880 | 1.9 | 3 | 45 | 2.2 |
| 50-50-170 | 12.5 | 32 | 2890 | 2.4 | 4 | 45 | 2.5 |
| 80-50-180 | 32 | 32 | 2900 | 5.3 | 5.5 | 52 | 2.7 |
| 80-50-170 | 40 | 25 | 2900 | 5.2 | 5.5 | 52 | 2.7 |
| 80-50-190 | 40 | 40 | 2900 | 6.9 | 7.5 | 63 | 3.1 |
| 80-50-170 | 60 | 20 | 2900 | 6.7 | 7.5 | 62 | 3.1 |
| 100-65-190 | 60 | 38 | 2930 | 9.8 | 11 | 63 | 3.9 |
| 100-65-200 | 80 | 40 | 2930 | 13.6 | 15 | 64 | 3.5 |
| 100-65-220 | 58 | 50 | 2930 | 11.9 | 15 | 66 | 3.5 |
| 100-65-230 | 100 | 55 | 2940 | 21.4 | 22 | 67.5 | 3.6 |
| 125-100-190 | 155 | 30 | 2940 | 20 | 22 | 72 | 3.6 |
| 100-65-240 | 100 | 70 | 2950 | 28.3 | 30 | 68 | 4.1 |
| 100-65-257 | 100 | 80 | 2950 | 32.5 | 37 | 67 | 3.6 |
| 125-100-220 | 160 | 45 | 2950 | 25.5 | 37 | 75 | 3.6 |
| 125-80-245 | 160 | 60 | 2970 | 35.5 | 45 | 74 | 5 |
| 125-100-245 | 200 | 60 | 2970 | 42.8 | 55 | 76 | 6 |
| 125-100-257 | 260 | 70 | 2970 | 64.3 | 75 | 77 | 6.8 |
| 125-100-260 | 300 | 70 | 2970 | 75.3 | 90 | 78 | 8 |
| 125-100-270 | 220 | 85 | 2970 | 68 | 90 | 76 | 6 |
| 150-100-270 | 340 | 76 | 2970 | 89.5 | 110 | 78.6 | 8.5 |
| 150-125-270 | 400 | 78 | 2970 | 106.2 | 132 | 80 | 9.8 |
