WS1 MK5 Anchor

WS1 MK5 Anchor is improved anchor based on MK5 Anchor, in order to use in hard soils, such as limestone, dense sand, coral and calcarenite, the quality is the same as Stevpris MK5 Anchor.

• Easy handing
• Easy Install
• Easy Retrieve
• Uplift Capacity
• High Holding Capacity

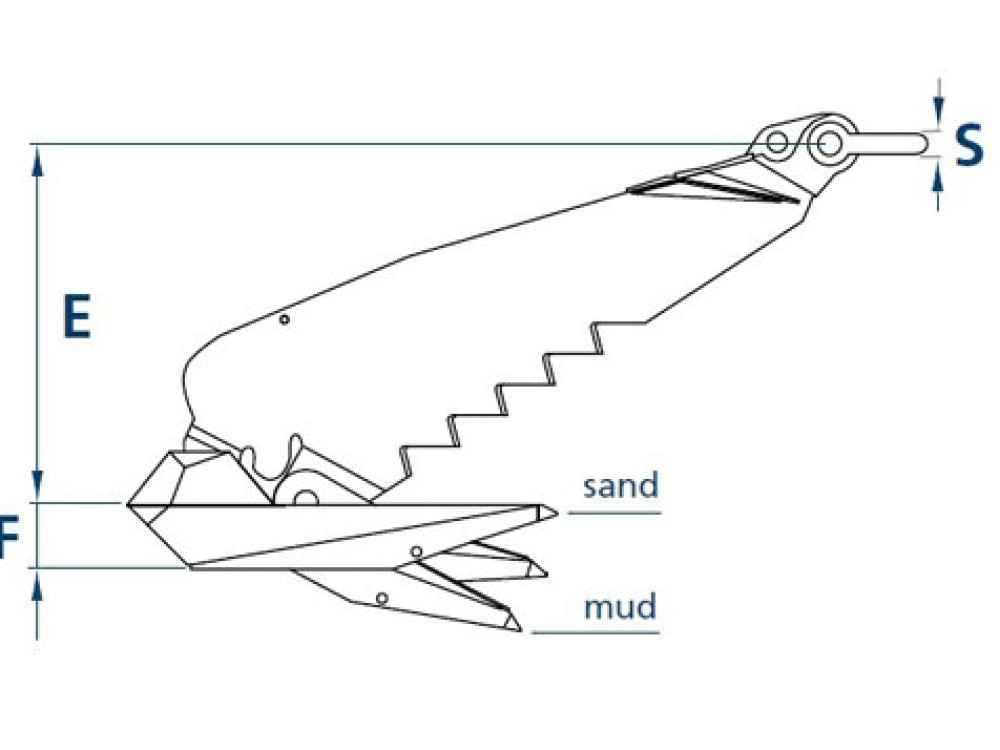

Main Dimensions (mm in dimension, kgs in anchor weight)

Weight	1500	3000	5000	8000	10000	12000	15000	18000	20000	22000	25000	30000	65000
A	2862	3605	4275	4999	5385	5273	6165	6551	6785	7004	7309	7767	10051
B	3085	3886	4608	5389	5805	6169	6645	7062	7314	7550	7879	8373	10834
C	1755	2212	2622	3067	3304	3511	3782	4019	4163	4297	4484	4765	6166
E	1458	1837	2178	2547	2743	2915	3140	3337	3457	3568	3723	3957	5120
F	263	332	393	460	495	526	567	602	624	644	672	714	924
H	1192	1502	1780	2082	2243	2383	2567	2728	2826	2917	3044	3235	4186
T	478	603	715	836	900	957	1031	1095	1135	1171	1222	1299	1681
S	80	90	110	130	140	150	160	170	180	190	200	210	300

The size and weight is for general review only.
