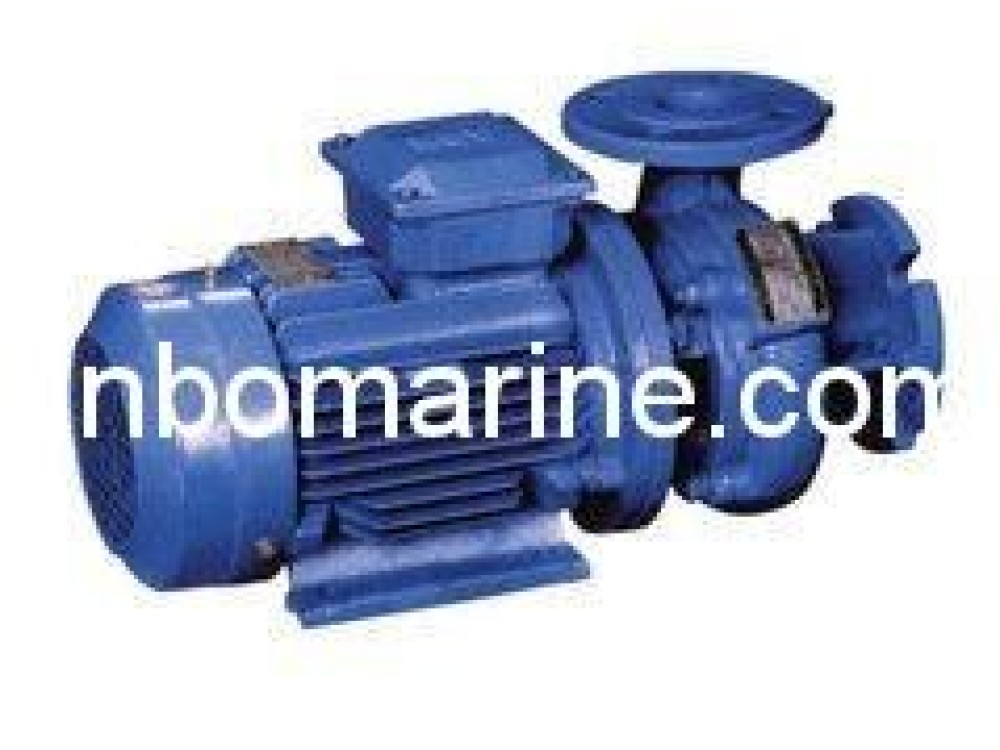

WYXH Series Marine Sludge Oil Circulation Pump
- Category:Sewage Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China WYXH Series Marine Sludge Oil Circulation Pump:
WYXH Series Marine Sludge Oil Circulation Pump
General discription
WYXH series marine sludge oil circulation pump is a motor-driven horizontal centrifugal sludge oil pump. The pumps are suitable for delivering heavy oil and sludge oil with temperature up to 90c.
Performance parameter
| Type | Capacity | Head | speed | power | In & outlet pipe diameter | |
| (Q) m3/h | m | r/min | kw | mm | ||
| 32WYXH-6-10 | 6 | 10 | 2900 | 1.1 | 32 | 25 |
| 40WYXH-6-20 | 6 | 20 | 2.2 | 40 | 32 | |
| 50WYXH-6-33 | 6 | 33 | 4 | 50 | 50 | |
