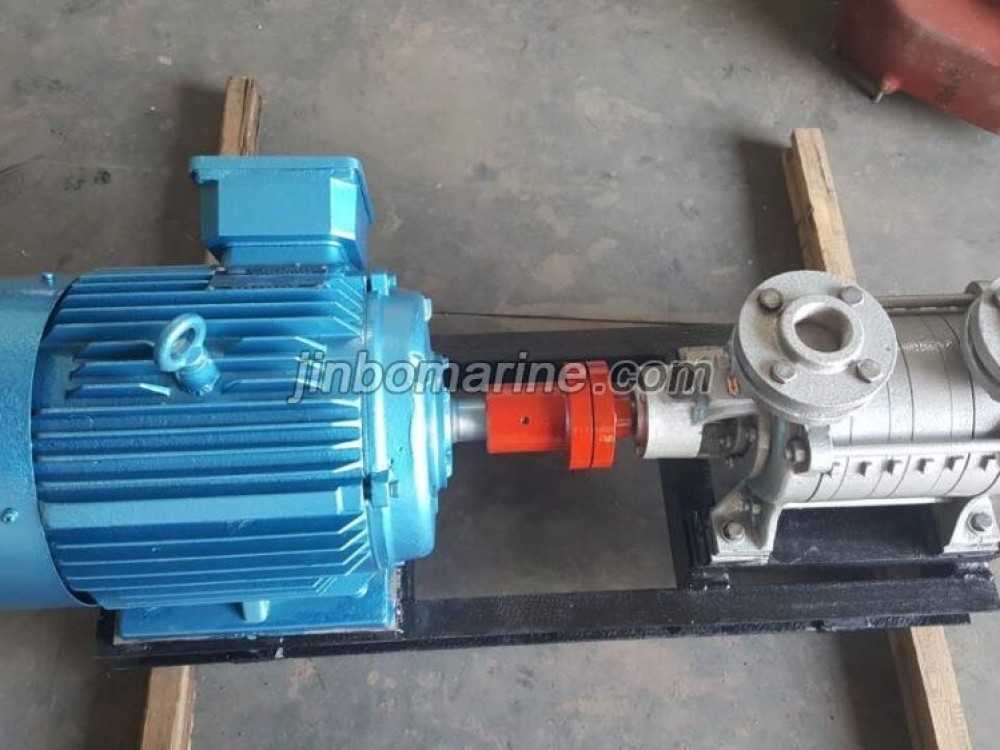

WZ Series Marine Multistage Self-priming Vortex Boiler Water Feed Pump
- Category:Vortex Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Packing Details:Standard packing
- Delivery Time:15days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
WZ Series Marine Multistage Self-priming Vortex pump
General description
WZ series is suitable for conveying at a temperature of -20c to +80c, Viscosity of not more than 5 E without solid particles, volatile, easy gasification of seawater and freshwater.It can be used for ship,petroleum,chemical industry,printing and dyeing industry, hotels, villas and high-rise living water for boiler.This type pump has the advantages of small volume,light weight,strong self-absorption,can be equipped with motor,gasoline engine,diesel engine as power.
Model explanation
For the model 32WZ-18x3
32:inlet and outlet diameter 32mm
W: vortex pump
Z: self-priming
18: single stage head 18m
3: stage series 3

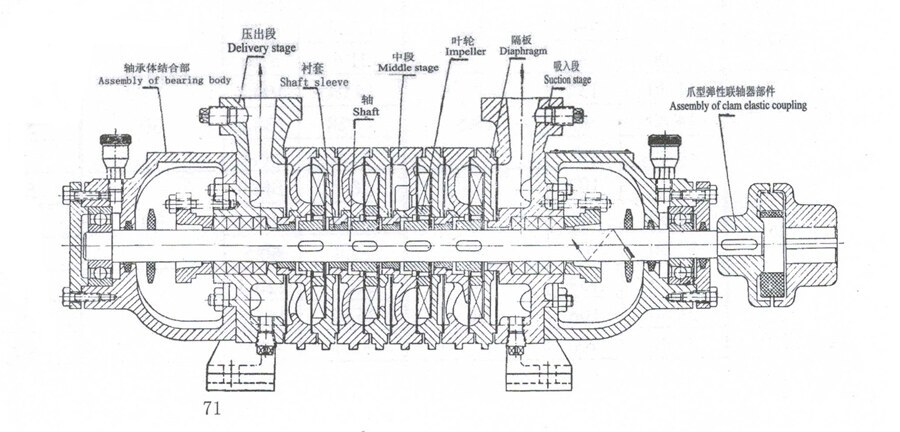

Structural Specifications
Performance parameter
| Type | impeller dia. | Suc'Head | efficiency | weight | Capacity | Head | Power | Capacity | Head | Power |
|
|
(mm) | (m) | % | (kg) | (m3/h) | m | kw | (m3/h) | m | kw |
|
|
50hz/60hz | 50hz/1450rpm | 60hz/1800rpm | |||||||
| 20WZ-14X2 | 100 | 7.5 | 23 | 10 | 1.44 | 28 | 0.75 | 1.73 | 23 | 1.5 |
| 20WZ-14X3 | 7.5 | 23 | 13 | 1.44 | 42 | 1.1 | 1.73 | 23 | 2.2 | |
| 20WZ-14X4 | 7.5 | 23 | 16 | 1.44 | 56 | 1.5 | 1.73 | 23 | 3 | |
| 25WZ-16X2 | 110 | 7 | 28 | 13 | 2.88 | 32 | 1.5 | 3.46 | 28 | 3 |
| 25WZ-16X3 | 7 | 28 | 17.6 | 2.88 | 48 | 2.2 | 3.46 | 28 | 4 | |
| 25WZ-16X4 | 7 | 28 | 22 | 2.88 | 64 | 3 | 3.46 | 28 | 5.5 | |
| 32WZ-18X2 | 132 | 6.5 | 32 | 19 | 5.4 | 36 | 3 | 6.48 | 32 | 5.5 |
| 32WZ-18X3 | 6.5 | 32 | 22 | 5.4 | 54 | 4 | 6.48 | 32 | 7.5 | |
| 32WZ-18X4 | 6.5 | 32 | 25 | 5.4 | 72 | 5.5 | 6.48 | 32 | 11 | |
| 40WZ-28X2 | 148 | 6 | 33 | 38 | 9 | 56 | 7.5 | 10.8 | 33 | 15 |
| 40WZ-28X3 | 6 | 33 | 45 | 9 | 84 | 11 | 10.8 | 33 | 18.5 | |
| 40WZ-28X4 | 6 | 33 | 52 | 9 | 112 | 15 | 10.8 | 33 | 22 | |
| 50WZ-32X2 | 170 | 5.5 | 35 | 49 | 14.4 | 64 | 11 | 17.28 | 35 | 18.5 |
| 50WZ-32X3 | 5.5 | 35 | 60 | 14.4 | 96 | 18.5 | 17.28 | 35 | 30 | |
| 65WZ-36X2 | 190 | 5 | 36 |
|
21.6 | 72 | 22 | 25.92 | 36 | 30 |
| 65WZ-36X3 | 5 | 36 |
|
21.6 | 108 | 20 | 25.92 | 36 | 45 | |
