XT Type Ladder Rubber Fender

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China XT Type Ladder Rubber Fender:

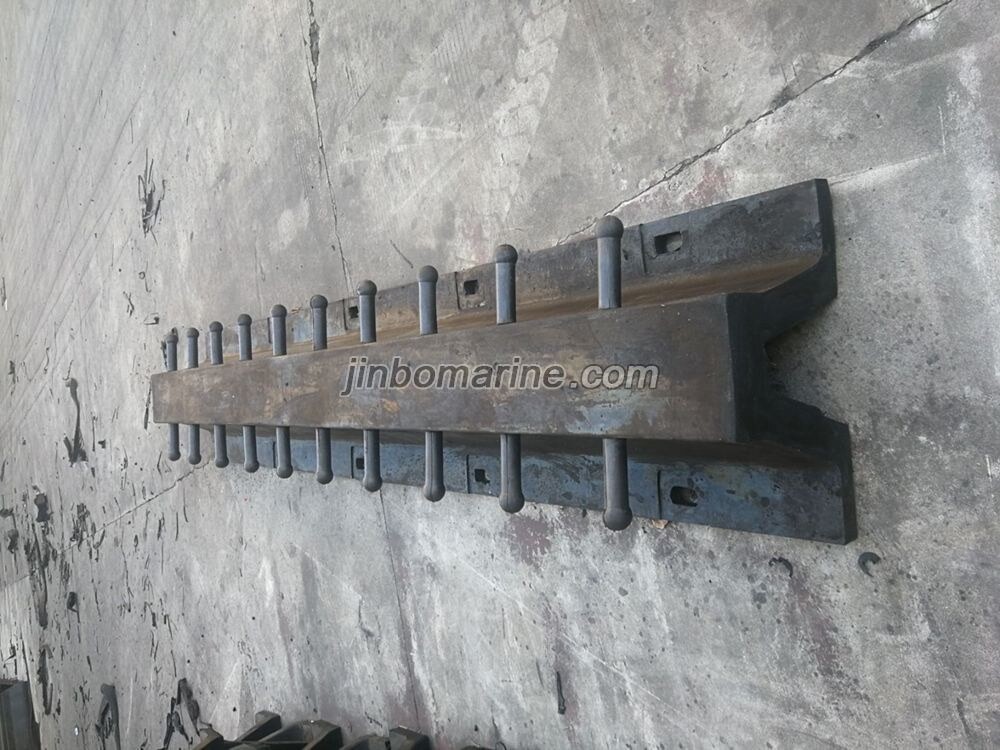

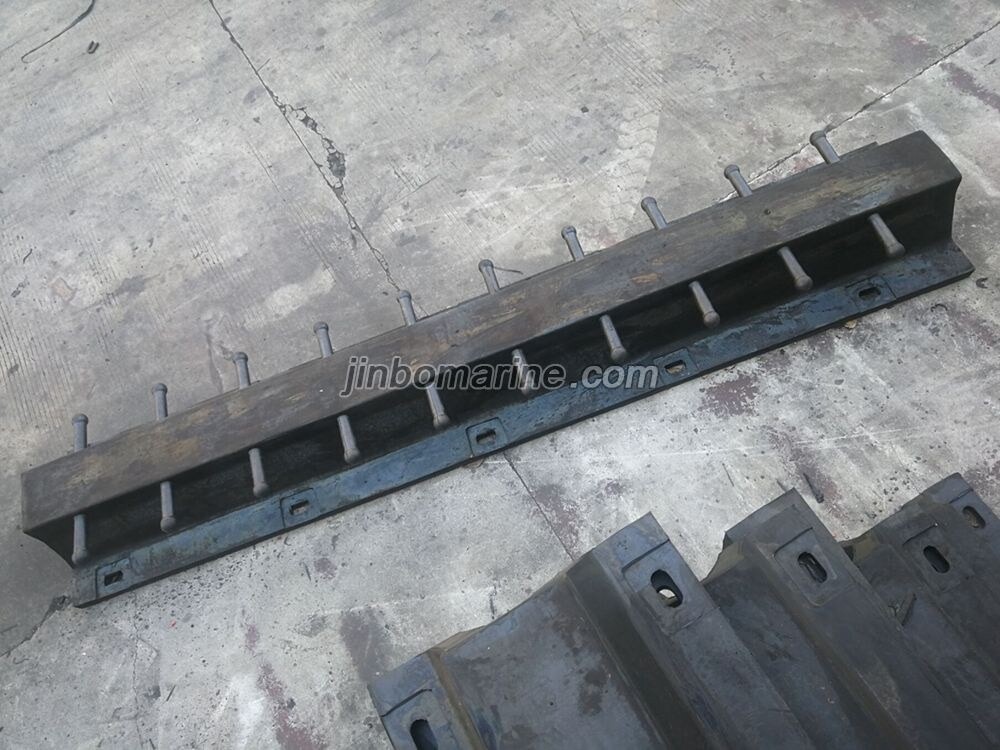

XT Type Ladder Rubber Fender

it is installed on the side of dock, it was designed on the basis of super arch type rubber fender, it has the same hole pitch of arch type fender. It adds handrail to up and down, satifsy both ladder and fender function.

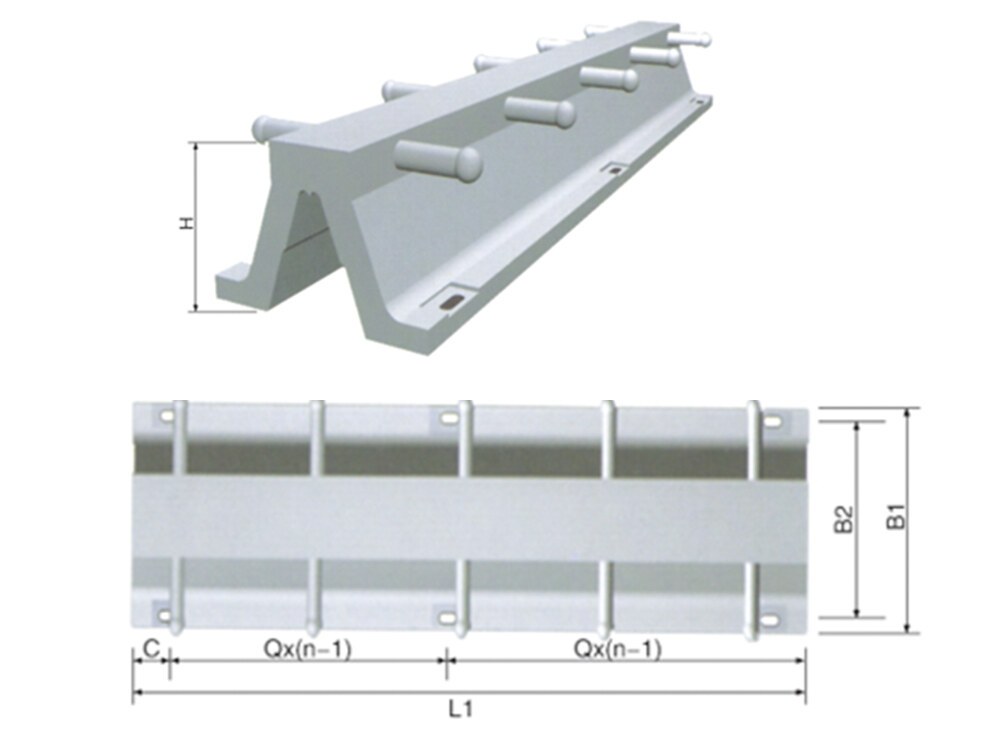

Specification:


Specification L1(mm) L(mm) Q(mm) C(mm) B1(mm) B2(mm) H(mm) J(mm) K n
H200x1500 1500 1500 650 100 400 320 200 270 M24 3
H200x1800 1800 1800 800 100 400 320 200 270 M24 3
H200x2100 2100 2100 750 100 400 320 200 270 M24 4
H200x2400 2400 2400 850 100 400 320 200 270 M24 4
H200x2700 2700 2700 850 100 400 320 200 270 M24 4
H200x3000 3000 3000 700 100 400 320 200 270 M24 5
H300x1000 1150 1000 870 100 400 320 200 270 M24 2
H300x1500 1650 1500 685 140 600 490 300 300 M30 3
H300x2000 2150 2000 625 140 600 490 300 300 M30 4
H300x2500 2650 2500 790 140 600 490 300 300 M30 4
H300x3000 3150 3000 725 140 600 490 300 300 M30 5
H300x3500 3650 3500 674 140 600 490 300 300 M30 6
H400x1000 1200 1000 900 150 800 670 400 360 M36 2
H400x1500 1700 1500 700 150 800 670 400 360 M36 3
H400x2000 2200 2000 635 150 800 670 400 360 M36 4
H400x2500 2700 2500 800 150 800 670 400 360 M36 4
H400x3000 3200 3000 725 150 800 670 400 360 M36 5
H400x3500 3700 3500 680 150 800 670 400 360 M36 6
