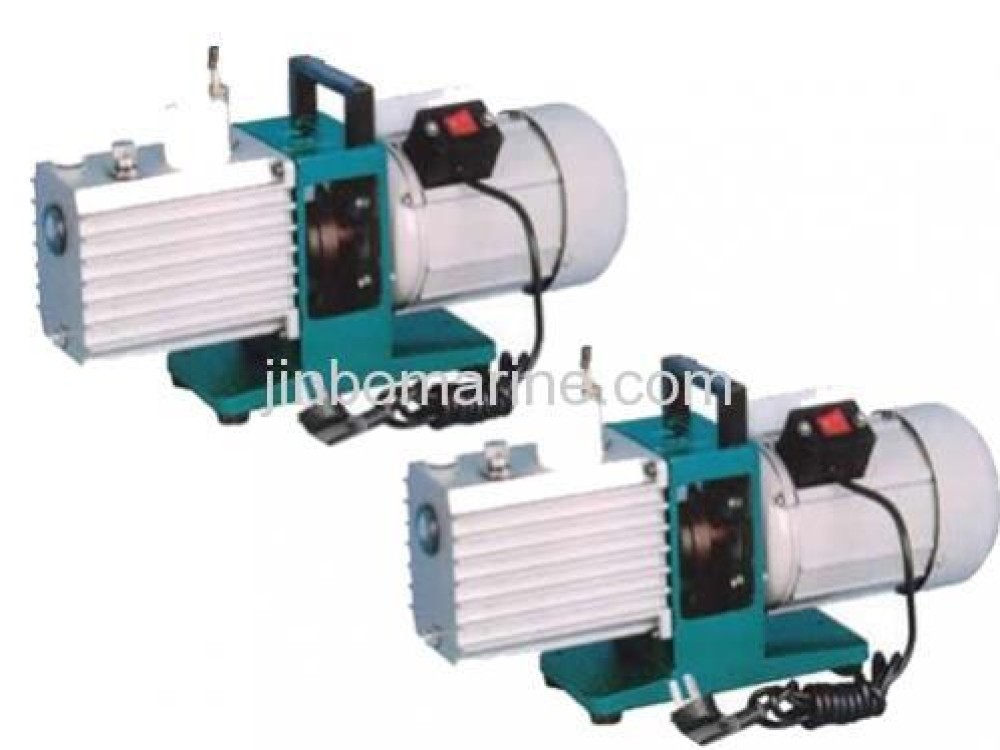

XZ Series Marine Vacuum Pump
- Category:Vacuum Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China XZ Series Marine Vacuum Pump:
XZ series Vacuum Pump is a kind of rotary vane vacuum pump oil seal single stage vacuum pump. Used to pumping air in the sealed containerto get vacuum.
Main Specification
| Type | Capacity L/S | Presure Mpa | Speed r/min | Power W | Voltage V | Caliber mm | Weight kg | Size mm |
| XZ-0.5 | 0.5 | 10 | 1400 | 90 | 220 | Φ6 | 7.5 | 251×112×217 |
| XZ-1 | 1 | 10 | 1400 | 120 | 220 | Φ6 | 7.8 | 268×112×211 |
| XZ-1B | 1 | 10 | 1400 | 120 | 220 | Φ6 | 7.8 | 268×112×208 |
| XZ-1B | 1 | 10 | 1400 | 120 | 220 | Φ13 | 8 | 268×112×222 |
| XZ-2A | 2 | 10 | 1400 | 250 | 220/380 | Φ20 | 16 | 430×145×300 |
| XZ-1G | 1 | 10 | 1400 | 120 | 220 | Φ6 | 8 | 268×112×225 |
| XZ-1.5G | 1.5 | 10 | 1400 | 135 | 220 | Φ6 | 8 | 273×112×228 |
| XZ-2G | 2 | 10 | 2800 | 250 | 220 | Φ6/Φ16 | 12.5 | 336×142×290 |
The description/sizes may be different with goods, please check with us when order.
