XZL400 Model Inspiration Strainer Filter
This strainer is applicable for oil pipelines of diesel generator and other equipment for filtering lubricant, fuel oil and heavy oil, operation pressure of which is recommened not to exceed 0.8Mpa, working temperature I t≤85℃ IIT≤135℃ ≤200℃, with range of filtering precision avaliable for option between20-200mesh/inch. it's designed with top inlet and botton outlet, all filtered substances are intercepted inside the mesh cage, which is easy to clear and clear. magnet maybe equipped for adsorption of ferromagent upon request.

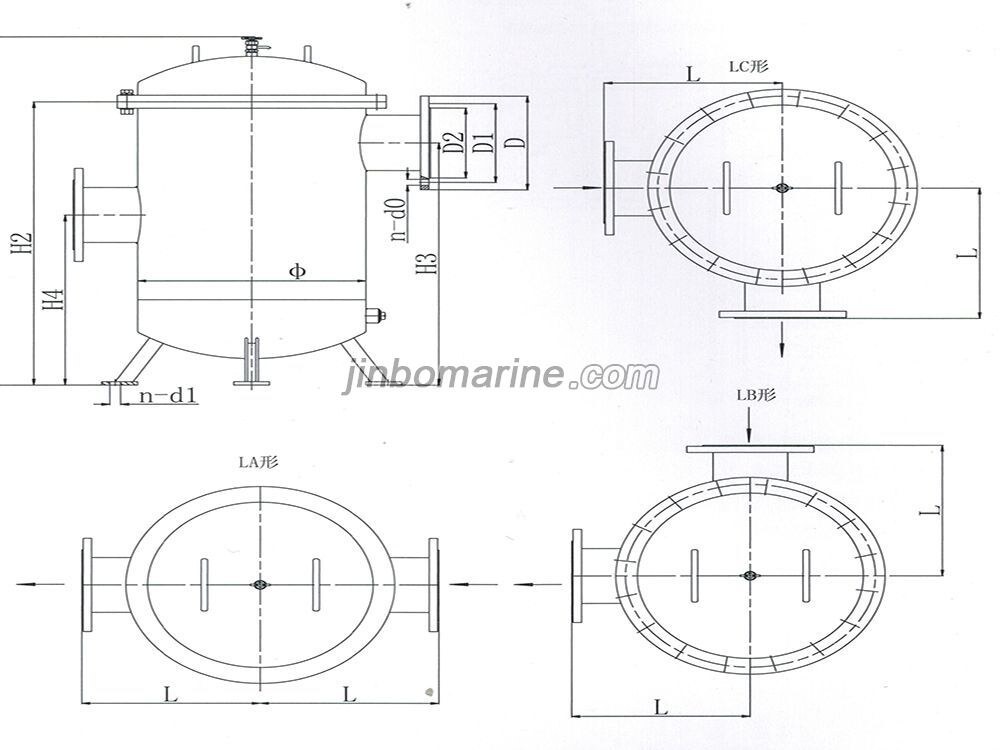

XZL400 Model Inspiration Strainer Filter Drawing
XZL400 Model Inspiration Strainer Filter Technical Parameters
DN | Structure size | Flange | Anchor | |||||||||
L | H1 | H2 | H3 | H4 | Φ | D | D1 | D2 | n | n | n-d1 | |
100 | 240 | 630 | 465 | 375 | 289 | 312 | 220 | 180 | 158 | 8 | 8 | 3-Φ22 |
125 | 250 | 680 | 515 | 422 | 339 | 250 | 210 | 184 | 8 | 22 | ||
150 | 340 | 810 | 642 | 527 | 357 | 412 | 285 | 240 | 212 | |||
200 | 340 | 915 | 740 | 595 | 375 | 340 | 295 | 268 | ||||
250 | 400 | 1005 | 820 | 635 | 365 | 512 | 395 | 350 | 320 | |||
300 | 400 | 1145 | 965 | 750 | 430 | 445 | 400 | 375 | 16 | 22 | ||
350 | 448 | 1255 | 1045 | 810 | 440 | 612 | 505 | 460 | 430 | |||
400 | 448 | 1420 | 1220 | 950 | 530 | 565 | 515 | 482 |
