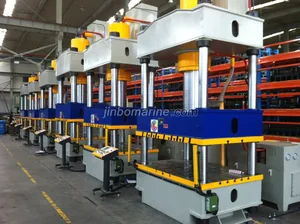

Y32 Hydraulic Press For Shipyard
- Category:Shipbuilding Steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Y32 Hydraulic Press
Y32 Serial Press composed of main body and control devices which respectively formed with frame, main cylinder, knock-out cylinder, hydraulic system and drive mechanism, lower and upper limit switches pipe lines, electrical control cabinet and etc.
Drive mechanism includes oil tank, high pressure pumps, low pressure control system, valves, Electrical control system is designed according to the working procedure of hydraulic principle. By preset, sequential operation can be achieved by drive mechanism via pumps, cylinders, valves, and tank and pipe lines.
The press Y32 is applicable to compression of plastic materials, For example, powder and plastics products forming and heat/cool metal extrusion, metal sheet drawing, stamping, bending, edge-folding, straightening, depressed mounting and etc.
Independent drive structures and electrical devices insure reliable operation with centered control buttons. Adjustment, manual operation and semi-automatic operation, three modes are provided respectively for your choice.
The working pressure, pressing speed, unload-descending speed and decelerated pressing speed can be respectively adjusted in requirements.
By preset, knock-out, non-knock-out and drawing can be taken out with pressure-dependent or distance-dependent movement of die. In the case of pressure-dependent movement, the main cylinder of YQ32 type press initiates pressure-holding, time delay and automatic return.
Y32 Hydraulic Press Technical Specifications
NAME | UNIT | 32-FOUR COLUMNS HYDRAULIC PRESS | |||||||||||||||||
40 | 63 | 100 | 100 | 160 | 160B | 200 | 315 | 400 | 500 | 500C | 630 | 800 | 1000 | 1250 | 1600 | 2000 | |||
PRESS | KN | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | |
OUT-PRESS | KN | 120 | 190 | 190 | 190 | 400 | 400 | 400 | 630 | 630 | 1000 | 1000 | 1000 | 1600 | 2000 | 2000 | 2000 | 3200 | |
MAX PRESSURE | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 26 | |
BLOCK MAX TRAVEL | mm | 450 | 500 | 600 | 700 | 700 | 700 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 1300 | |
PISTON TRAVEL | mm | 150 | 200 | 200 | 200 | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 500 | |
OPENING MOUTH | mm | 700 | 750 | 880 | 880 | 900 | 1000 | 1100 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 1600 | 1600 | 1800 | |
BLOCK SPEED | EMPTY | mm/s | 20 | 20 | 22 | 120 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 80 | 110 |
WORKING | mm/s | 14 | 14 | 14 | 14 | 12 | 12 | 8 | 6-8 | 5-7 | 5 | 6 | 10 | 8 | 10 | 6-10 | 6-10 | 4-9 | |
RETURN | mm/s | 45 | 120 | 47 | 120 | 70 | 70 | 52 | 60 | 45 | 70 | 70 | 60 | 70 | 60 | 50 | 40 | 70 | |
WORKING TABLE DIMENSION | L-r | mm | 500 | 580 | 720 | 720 | 680 | 1000 | 1000 | 1260 | 1240 | 1400 | 2400 | 1500 | 1500 | 1580 | 1700 | 2000 | 3200 |
F-B | 460 | 500 | 580 | 580 | 620 | 800 | 900 | 1200 | 1200 | 1400 | 1400 | 1500 | 1400 | 1600 | 1600 | 1600 | 2200 | ||
MAIN POWER | KW | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 37 | 37 | 44 | 60 | 60 | 74 | 74 | 3x37 |
