Yatch Capstan
- Category:Yacht Windlass & Winch
- Material:Stainless steel 304,316, 316L
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

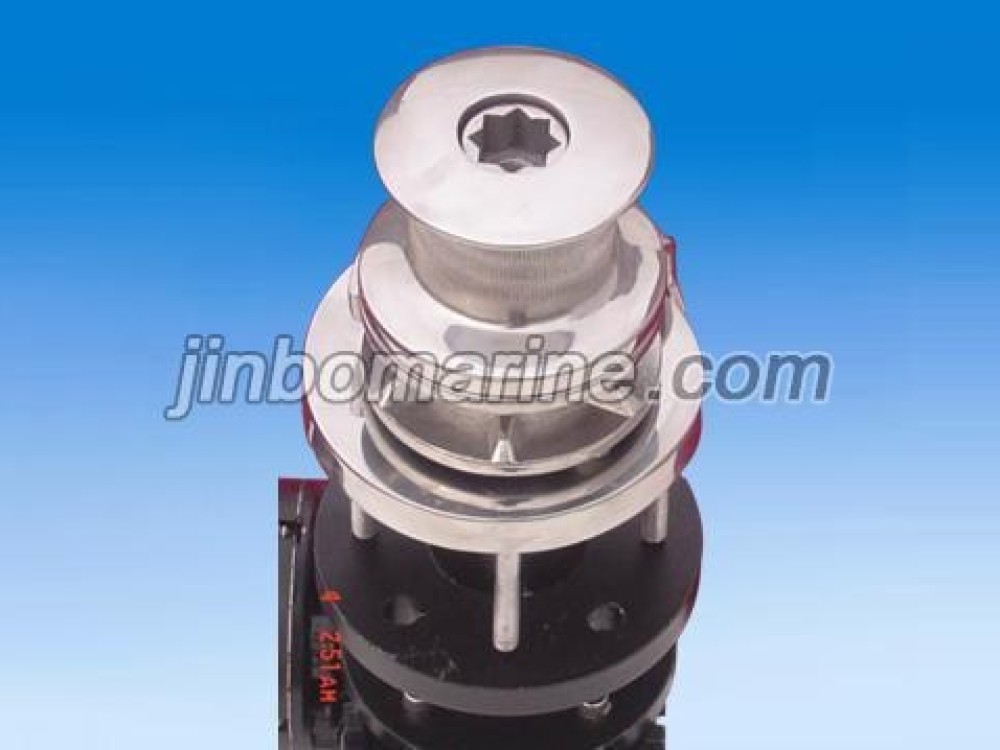

Yatch Capstan
Features
1.Designed for traditional rope and chain combination anchor rodes
2.line hauling from any direction
3.High quality finish on above deck components
4.Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade SS bolts
5.Compact, reliable gearbox, made of corrosion resistant material
6.Heavy duty ,dual direction motors, designed for marine winches
7.Easily disassembled for servicing
8.Fit include hand-switch, foot-switch, control box and wrench
Specifications
Model | Weight | Power | Motor | No load | Max. | Max. | Line | Rope | Chain | |
Net(DC) | DC | (W) | absorption | load | Pull | Speed | size | size | ||
YDVC-003 | 7kg | 12V/24V | 400 | 30A | 125kg | 420kg | 30m/min | 12mm | 6-7mm | |
YDVC-004 | 9kg | 12V/24V | 600 | 60A | 210kg | 600kg | 25m/min | 12mm | 6-7mm |
