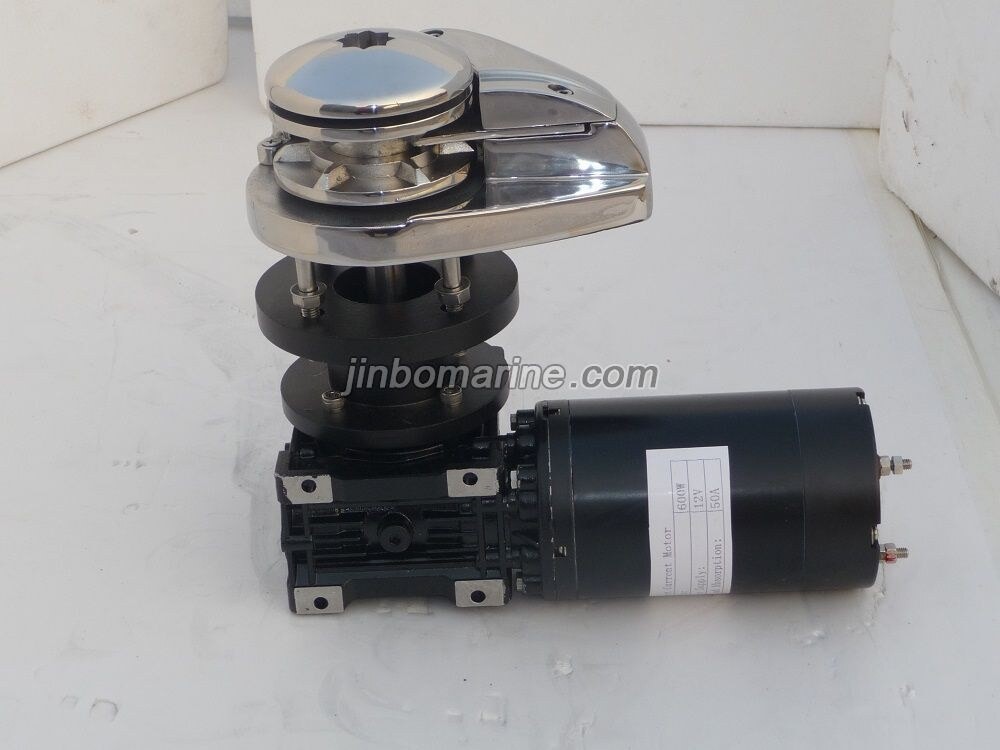

Yatch Vertical Windlass with DC Model
- Category:Yacht Windlass & Winch
- Material:Stainless steel 304,316, 316L
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Yatch Vertical Windlass with DC Model
Features
1.Vertical design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.
2.High-quality polished 316 stainless steel surface makes for a good appearance.
3.Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.
4.Rope-chain gypsy, choice of two gypsy.
5.Fit include hand-switch, foot-switch, control box and wrench.
Main Parameter
| Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model | Weight | Power | Motor | No load | Max | Max. | Line | Rope | Chain | |
|
|
net(kg) |
|
(W) | absorption | Load | Pull | Speed | Size | Size | |
| YD411 | 12 | 12V/24V | 400 | 30A | 125KG | 420KG | 30m/min | 12-14mm | 6-7mm | |
| YD411H | 12.6 | 12V/24V | 400 | 30A | 130KG | 450KG | 30m/min | 12-14mm | 6-7mm | |
| YD511 | 12.3 | 12V/24V | 600 | 60A | 186KG | 560KG | 25m/min | 12-14mm | 6-7mm | |
| YD511H | 13 | 12V/24V | 600 | 60A | 210KG | 600KG | 25m/min | 12-14mm | 6-7mm | |
| YD611 | 19 | 12V/24V | 800 | 100A | 250KG | 700KG | 20m/min | 16-20mm | 8-10mm | |
| YD611H | 21 | 12V/24V | 800 | 100A | 280KG | 700KG | 20m/min | 16-20mm | 8-11mm | |
| YD711 | 24 | 12V/24V | 1200 | 120A | 400KG | 1200KG | 20m/min | 16-20mm | 8-12mm | |
| YD711H | 25.5 | 12V/24V | 1200 | 120A | 400KG | 1200KG | 20m/min | 16-20mm | 8-13mm | |
| YD811 | 26 | 12V/24V | 1600 | 140A | 560KG | 1600KG | 20m/min | 16-20mm | 8-14mm | |
| YD811H | 27.5 | 12V/24V | 1600 | 140A | 560KG | 1600KG | 20m/min | 16-20mm | 8-15mm | |
| YD811 | 29 | 12V/24V | 2000 | 170A | 660KG | 1900KG | 20m/min | 20-24mm | 10-12.5mm | |
| YD811H | 31.5 | 12V/24V | 2000 | 170A | 660KG | 1900KG | 20m/min | 20-24mm | 10-12.5mm | |
| YD1011 | 25 | 12V/24V | 1600 | 140A | 560KG | 1600KG | 20m/min | 20-24mm | 10-12.6mm | |
| YD1011H | 27.5 | 12V/24V | 1600 | 140A | 560KG | 1600KG | 20m/min | 20-24mm | 10-12.7mm | |
| YD1011 | 30.5 | 12V/24V | 2000 | 170A | 660KG | 1900KG | 20m/min | 20-24mm | 10-12.8mm | |
| YD1011H | 33 | 12V/24V | 2000 | 170A | 660KG | 1900KG | 20m/min | 20-24mm | 10-12.9mm | |
