Yatch Vertical Windlass With Mooring Drum
- Category:Yacht Windlass & Winch
- Material:Stainless steel 304,316, 316L
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Features
1. Vertical design suits powerboats or silboats and can be utilized for anchor ropes,as dockingcapstans on larger craft, or auxiliary line hauling.
2.High-quality polished 316 stainless steel surface makes for a good appearance.
3.Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.
4.Rope-chain gypsy, choice of two gypsy.
5.Fit include hand-switch, foot-switch, control box and wrench.

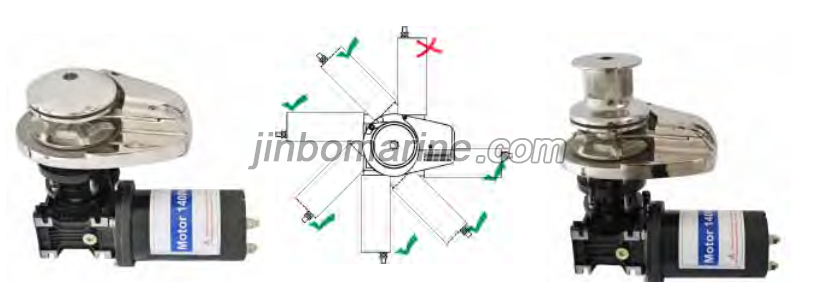

Installation Positions
Main Parameter
| Model | Net Weight | Power Supply | Motor | AMPS@ WORIKING LOAD | Max. Load | Max. Pull | Line Speed | Rope Size | Chain Size |
| YD411/ YD411H | 12/12. 6KG | 12V/24V | 400W | 30A/20A | 125kg | 420kg | 30in/min | 14/16mm | 6/7min |
| YD511/ W511H | 12. 3/13KG | 12V/24V | 600W | 60A/40A | 186kg | 560kg | 25in/min | 14/16mm | 6/7min |
| YD611/ YD611H | 19/21KG | 12V/24V | 800W | 100A/50A | 250kg | 700kg | 20ni/min | 18/20mm | 8/10mni |
| YD711/ YD711H | 24/25. 5KG | 12V/24V | 1200W | 120A/75A | 400kg | 1200kg | 20in/min | 18/20mm | 8/10mni |
| YD811/ YD811H | 29/31. 5KG | 12V/24V | 1600W | 165A/90A | 660kg | 1600kg | 20in/min | 18/20/26mm | 8/10/12mni |
| YD1011/ YD1011H | 30. 5/33KG | 12V/24V | 2000W | 170A/95A | 660kg | 1900kg | 20in/min | 20/26/28mm | 10/12/13mm |

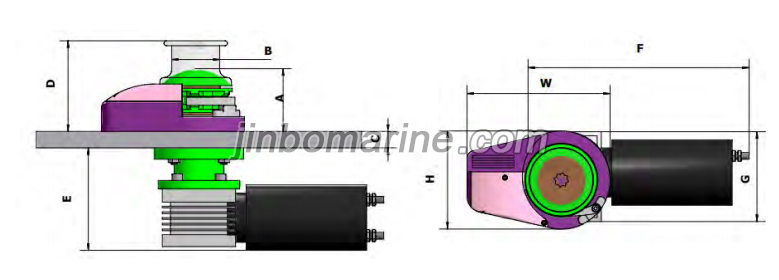

Dimension
| Model | Motor | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | H(mm) | |
| YD411 | 400W | 85 | 22-41 | 140 | 265 | 122 | 180 | ||
| YD411H | 400W | 59 | 22-41 | 115 | 135 | 265 | 122 | 181 | |
| YD511 | 600W | 85 | 22-41 | 140 | 275 | 122 | 180 | ||
| YD511H | 600W | 59 | 22-41 | 115 | 135 | 275 | 122 | 181 | |
| YD611 | 800W | 110 | 38-54 | 145 | 320 | 155 | 220 | ||
| YD611H | 800W | 79 | 38-54 | 165 | 145 | 320 | 155 | 220 | |
| YD711 | 1200W | 110 | 38-54 | 172 | 350 | 170 | 265 | ||
| YD711H | 1200W | 79 | 38-54 | 165 | 172 | 350 | 170 | 265 | |
| YD811 | 1600W | 110 | 38-54 | 190 | 415 | 170 | 265 | ||
| YD811H | 1600W | 79 | 38-54 | 165 | 190 | 415 | 170 | 265 | |
| YD1011 | 2000W | 130 | 38-54 | 190 | 415 | 195 | 295 | ||
| YD1011H | 2000W | 110 | 38-54 | 235 | 190 | 415 | 195 | 295 |
Options
1. With capstan & without capstan.
2. Different-length bolts for any deck thickness.
3. Full range of accessories including anchors, bow rollers, chain stoppers, chain & rope .
4.AC eletric motor available .
