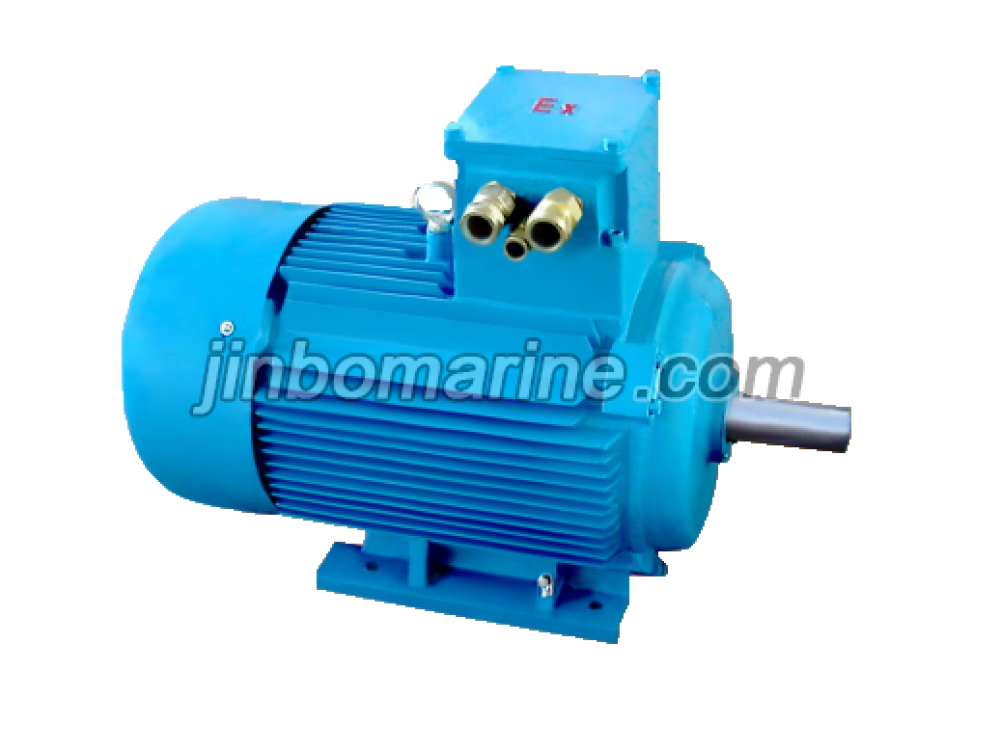

YB2—H Totally-Enclosed/Fan-Cooled /Three-Phase Marine Flameproof Motors

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Introduction

YB2—H Series are totally-enclosed, fan-cooled three-phase marine flameproof motors of the squirrel-cage type. The motors are designed and manufactured according to National Standard IEC60079-0 《Electrical apparatus for explosive gas atmosphere-Part 0： General requirements 》and IEC60079-1《Electrical apparatus for explosive gas atmosphere-Part 1： Flameproof enclosure“d”》. The protection type of the motor is ExdⅡBT4 or ExdⅡCT4. They have the features of good function, low noise , and convenient protection.

The motors can be used to drive various machines, such as pumps, ventilator, separators and hydraulic machines which placed in areas where flameproof grade is ⅡA、ⅡB and IIC, temperature class T1~T4, easy-ignition and explosive gas ,steam and air mixtures.

The motors is also accordance with the following standards and specifications:

IEC60034 Rotating electrical machines

IEC60068 Basic environmental testing procedures

IEC60072 Dimensions and output ratings for rotating electrical machines

IEC60092 Electrical installation in ships

Type Designation

The type designation consists of several letters and digits.

perating Conditions

Temperature of Ambient air: -20℃ ~+45℃

Altitude : 0m

Relative humidity : ≤ 95%

Dew : exists

Salt mist : exists

Oil mist : exists

Fungus : exists

Shock : exists

Vibration : exists

Inclination and swing : ±22.5°

Rated Voltage : 380V or 440V

Rated Frequency : 50Hz or 60Hz

Connection : 3kW or Less Y、more than 3kW △

Duty Type : Continuous

Insulation : F

Rise of winding(resistance method) 80K,Permissible working temp of bearing(thermometer method) 90℃

Mounting Arrangement

Mounting arrangements available for various frame sizes are shown in table 1.

Table 1

Frame Size

Mounting Arrangements (IM)

80 〜160 B3, B5, B6, B7, B8, B35, VI, V3, V5, V6, V15, V36
180~225 B3, B5B35, VI
250 〜355 B3, B35, VI

Technical Data and Mounting and Overall Dimensions

Mounting and overall dimensions are shown respectively by table 2 ～ 5

Table 2
Type Output kW Current A Type Output kW Current A
380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz
YB280M1-2-H 0.75 1.8 1.6 YB2315L2-4-H 200 361.3 318.9
YB280M2-2-H 1.1 2.6 2.2 YB2355M-4-H 250 464 410
YB290S-2-H 1.5 3.5 3. 1 YB2355L-4-H 315 582 514.0
YB290L-2-H 2.2 4.9 4.3 YB290S-6-H 0.75 2.2 2.0
YB2100L-2-H 3 6.2 5.4 YB290L-6-H 1.1 3.2 2.9
YB2112M-2-H 4 8.2 7.2 YB2100L-6-H 1.5 4.0 3.5
YB2132S1-2-H 5.5 11 9.6 YB2112M-6-H 2.2 5.8 5.2
YB2132S2-2-H 7.5 14.6 12.9 YB2132S-6-H 3 7.2 6.4
YB2160M12-H 11 21.6 18.7 YB2132M1-6-H 4 9.5 8.2
YB2160M2-2-H 15 28.9 25.1 YB2132M2-6-H 5.5 12.5 10.7
YB2160L-2-H 18.5 35.7 30.3 YB2160M-6-H 7.5 17.1 14.8
YB2180M-2-H 22 42.2 36.9 YB2160L-6-H 11 25.0 21.7
YB2200L1-2-H 30 57.9 50.3 YB2180L-6-H 15 33.0 29.3
YB2200L2-2-H 37 69.4 60.3 YB2200L1-6-H 18.5 37.6 32.7
YB2225M-2-H 45 85.9 76.3 YB2200L2-6-H 22 44.7 38.9
YB2250M-2-H 55 103.2 91.7 YB2225M-6-H 30 61.1 53.1
YB2280S-2-H 75 139.2 120.9 YB2250M-6-H 37 71.0 61.3
YB280M-2-H 90 167.1 143.5 YB2280S-6-H 45 86.4 74.6
YB2315S-2-H 110 203.0 180.2 YB2280M-6-H 55 103.2 89.7
YB2315M-2-H 132 242.3 215.1 YB2315S-6-H 75 141.1 123.9
YB2315L12-H 160 292.1 259.3 YB2315M-6-H 90 168.6 148. 1
YB2315L2-2-H 200 365.1 324.1 YB2315L1-6-H 110 205.4 180.4
YB2355M-2-H 250 451 401 YB2315L2-6-H 132 245.7 215.8
YB2355L-2-H 315 566 502 YB2355M1-6-H 160 302.0 265.3
YB280Ml-4-H 0.55 1.5 1.4 YB2355M2-6-H 200 377 331
YB280M2-4-H 0.75 2.1 1.8 YB2355L-6-H 250 469 412
YB290S-4-H 1.1 2.7 2.4 YB2132S-8-H 2.2 5.8 5.2
YB290L-4-H 1.5 3.6 3.2 YB2132M-8-H 3 7.6 6.8
YB2100L1-4-H 2.2 5.0 4.5 YB2160Ml-8-H 4 10.5 9.1
YB2100L2-4-H 3 6.8 5.9 YB2160M2-8-H 5.5 13.4 11.5
YB2112M-4-H 4 8.9 7.7 YB2160L-8-H 7.5 17.7 15.5
YB2132S-4-H 5.5 11.7 10 YB2180L-8-H 11 25.6 22.2
YB2132M-4-H 7.5 15.4 13.2 YB2200L-8-H 15 33.3 29.2
YB2160M-4-H 11 22.6 19.5 YB2225S-8-H 18.5 40.3 35.6
YB2160L-4-H 15 30.5 26.3 YB2225M-8-H 22 47.4 41.7
YB2180M-4-H 18.5 35.9 30.8 YB2250M-8-H 30 64.7 57.1
YB2180L-4-H 22 42.2 36.9 YB2280S-8-H 37 79.8 68.9
YB2200L-4-H 30 57.3 49.8 YB2280M-8-H 45 94.8 80.8
YB2225S-4-H 37 70.2 60.3 YB2315S-8-H 55 113.5 98.59
YB2225M-4-H 45 84.0 73.4 YB2315M-8-H 75 152.1 132.0
YB2250M-4-H 55 103.8 88.7 YB2315L1-8-H 90 179.3 155.6
YB2280S-4-H 75 139.2 120 YB2315L2-8-H 110 218.4 189.6
YB2280S-4-H 90 164.3 141.9 YB2355M1-8-H 132 265 230
YB2315S-4-H 110 200.8 177.3 YB2355M2-8-H 160 320 278
YB2315M-4-H 132 239.7 211.6 YB2355L-8-H 200 399 347
YB2315L1-4-H 160 289.0 255.1

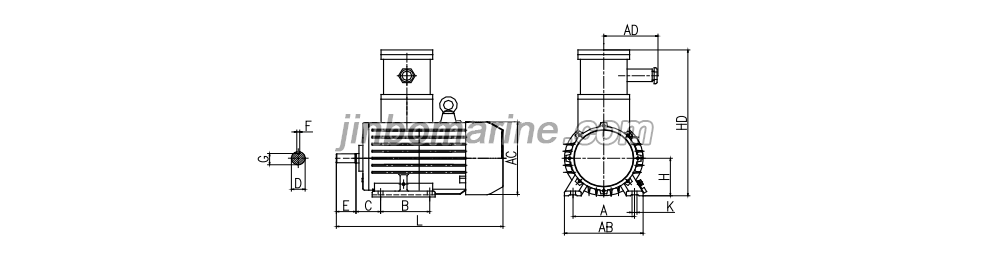

Table 3
Frame Size Pole A AB AC AD B C H HD L K Bearings Shaft extension
Driving end Non-Driving end D E F G
80M 2、4、6 125 165 175 160 100 50 80 340 360 10 6204-2RS 6204-2RS 19 40 6 15.5
90S 2、4、6 140 180 180 160 100 56 90 350 390 6205-2RS 6205-2RS 24 50 8 20
90L 2、4、6 125 440
100L 2、4、6 160 205 205 160 140 63 100 400 470 12 6206-2RS 6206-2RS 28 60 8 24
112M 2、4、6 190 245 230 160 140 70 112 420 470 6306-2RS 6306-2RS
132S 2、 4、 6、 8 216 280 280 200 140 89 132 450 590 12 6308-2RS 6308-2RS 38 80 10 33
132M 2、 4、 6、 8 178 590
160M 2、 4、 6、 8 254 330 325 220 210 108 160 560 680 15 6309-2RS 6309-2RS 42 110 12 37
160L 2、 4、 6、 8 254 720
180M 2、 4、 6、 8 279 355 360 220 241 121 180 580 830 15 6311-2RS 6311-2RS 48 110 14 42.5
180L 2、 4、 6、 8 279 830
200L 2、 4、 6、 8 318 395 420 250 305 133 200 650 850 19 6312-2RS 6312-2RS 55 110 16 49
225S 2 356 435 450 250 286 149 225 690 970 6313-2RS 6313-2RS 55 110 16 49
4、6、8 60 140 18 53
225M 2 450 311 55 110 16 49
4、6、8 60 140 18 53
250M 2 406 495 500 300 349 168 250 800 1100 24 6314 6314 60 140 18 53
4、6、8 65 58
280S 2 457 550 565 300 368 190 280 860 1140 6314 6314 65 18 58
4、6、8 6317 6317 75 20 67.5
280M 2 419 1190 6314 6314 65 18 58
4、6、8 6317 6317 75 20 67.5
315S 2 508 640 645 300 406 216 315 1050 1255 28 6317 6317 65 170 18 58
4、6、8 6319 6319 80 22 71
315M 2 457 1315 6317 6317 65 18 58
4、6、8 6319 6319 80 22 71
315L 2 508 1460 6317 6317 65 18 58
4、6、8 6319 6319 80 22 71
355M 2 610 740 750 350 560 254 355 1150 1580 6319 6319 75 20 67.5
4、6、8 6322 6322 95 25 86
355L 2 630 1620 6319 6319 75 20 67.5
4、6、8 6322 6322 95 25 86

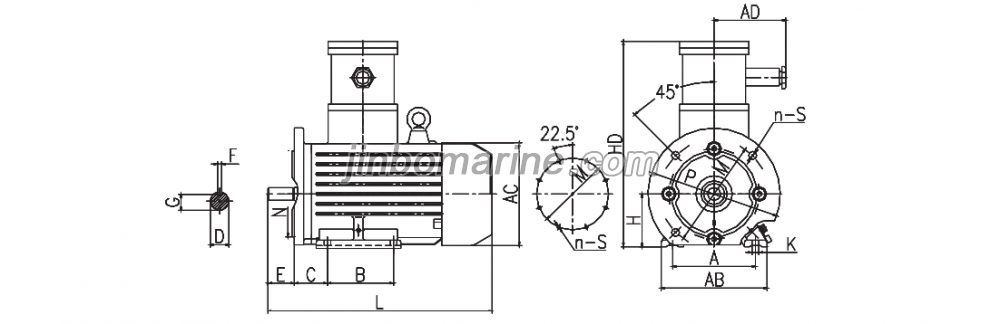

Table 4

Frame Size

Pole

A

AB

AC

AD

B

C

H

HD

L

K

M

N

P

S

T

n

hearings

Shaft extension

Driving end

Non-Driving end

D

E

F

G

80M 2、4、6 125 165 175 160 100 50 80 340 360 10 165 130 200 12 3.5 4 6204-2RS 6204-2RS 19 40 6 15.5
90S 2、4、6 140 180 180 160 100 56 90 350 390 165 130 200 12 3.5 6205-2RS 6205-2RS 24 50 8 20
90L 2、4、6 125 440
100L 2、4、6 160 205 205 160 140 63 100 400 470 12 215 180 250 15 4 6206-2RS 6206-2RS 28 60 8 24
112M 2、4、6 190 245 230 160 140 70 112 420 470 215 180 250 15 4 6306-2RS 6306-2RS
132S 2、 4、 6、 8 216 280 280 200 140 89 132 450 590 12 265 230 300 15 4 6308-2RS 6308-2RS 38 80 10 33
132M 2、 4、 6、 8 178 590
160M 2、 4、 6、 8 254 330 325 220 210 108 160 560 680 15 300 250 350 19 5 6309-2RS 6309-2RS 42 110 12 37
160L 2、 4、 6、 8 254 720
180M 2、 4、 6、 8 279 355 360 220 241 121 180 580 830 15 300 250 350 19 5 6311-2RS 6311-2RS 48 110 14 42.5
180L 2、 4、 6、 8 279 830
200L 2、 4、 6、 8 318 395 420 250 305 133 200 650 850 19 350 300 400 19 5 6312-2RS 6312-2RS 55 110 16 49
225S 2 356 435 450 250 286 149 225 690 970 400 350 450 19 5 8 6313-2RS 6313-2RS 55 110 16 49
4、6、8 60 140 18 53
225M 2 450 311 55 110 16 49
4、6、8 60 140 18 53
250M 2 406 495 500 300 349 168 250 800 1100 24 500 450 550 19 5 6314 6314 60 140 18 53
4、6、8 65 58
280S 2 457 550 565 300 368 190 280 860 1140 6314 6314 65 18 58
4、6、8 6317 6317 75 20 67.5
280M 2 419 1190 6314 6314 65 18 58
4、6、8 6317 6317 75 20 67.5
315S 2 508 640 645 300 406 216 315 1050 1255 28 600 550 660 24 6 6317 6317 65 170 18 58
4、6、8 6319 6319 80 22 71
315M 2 457 1315 6317 6317 65 18 58
4、6、8 6319 6319 80 22 71
315L 2 508 1460 6317 6317 65 18 58
4、6、8 6319 6319 80 22 71
355M 2 610 740 750 350 560 254 355 1150 1580 740 680 800 24 6 6319 6319 75 20 67.5
4、6、8 6322 6322 95 25 86
355L 2 630 1620 6319 6319 75 20 67.5
4、6、8 6322 6322 95 25 86

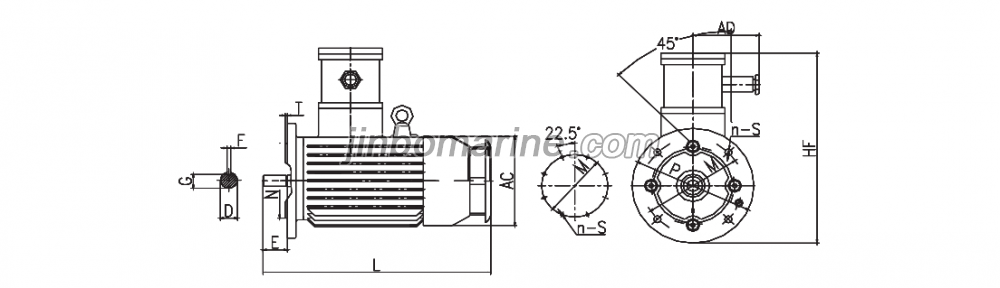

Table 5

Frame Size

Pole

AC

AD

L

M

N

P

S

T

n

HF

Bearings

Shaft extension

Driving end Non-Driving end D E F G
80M 2、4、6 175 160 400 165 130 200 12 3.5 4 340 6204-2RS 6204-2RS 19 40 6 15.5
90S 2、4、6 180 160 430 165 130 200 12 3.5 350 6205-2RS 6205-2RS 24 50 8 20
90L 2、4、6 470
100L 2、4、6 205 160 500 215 180 250 15 4 400 6206-2RS 6206-2RS 28 60 8 24
112M 2、4、6 230 160 520 215 180 250 15 4 420 6306-2RS 6306-2RS
132S 2、 4、 6、 8 280 200 630 265 230 300 15 4 450 6308-2RS 6308-2RS 38 80 10 33
132M 2、 4、 6、 8 630
160M 2、 4、 6、 8 325 220 770 300 250 350 19 5 560 6309-2RS 6309-2RS 42 110 12 37
160L 2、 4、 6、 8 810
180M 2、 4、 6、 8 360 220 860 300 250 350 19 5 580 6311-2RS 6311-2RS 48 110 14 42.5
180L 2、 4、 6、 8 860
200L 2、 4、 6、 8 420 250 950 350 300 400 19 5 650 6312-2RS 6312-2RS 55 110 16 49
225S 2 450 250 1020 400 350 450 19 5 8 690 6313-2RS 6313-2RS 55 110 16 49
4、6、8 60 140 18 53
225M 2 55 110 16 49
4、6、8 60 140 18 53
250M 2 500 300 1250 500 450 550 19 5 800 6314 6314 60 140 18 53
4、6、8 65 18 58
280S 2 565 300 1250 860 6314 6314 65 18 58
4、6、8 6317 6317 75 20 67.5
280M 2 1300 6314 6314 65 18 58
4、6、8 6317 6317 75 20 67.5
315S 2 645 300 1430 600 550 660 24 6 1050 6317 6317 65 170 18 58
4、6、8 6319 6319 80 22 71
315M 2 1520 6317 6317 65 18 58
4、6、8 6319 6319 80 22 71
315L 2 1660 6317 6317 65 18 58
4、6、8 6319 6319 80 22 71
355M 2 750 350 1820 740 680 800 24 6 1200 6319 6319 75 20 67.5
4、6、8 6322 6322 95 25 86
355L 2 1950 6319 6319 75 20 67.5
4、6、8 6322 6322 95 25 86
