YD—H Three Phase Induction Marine Electronic Motor

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

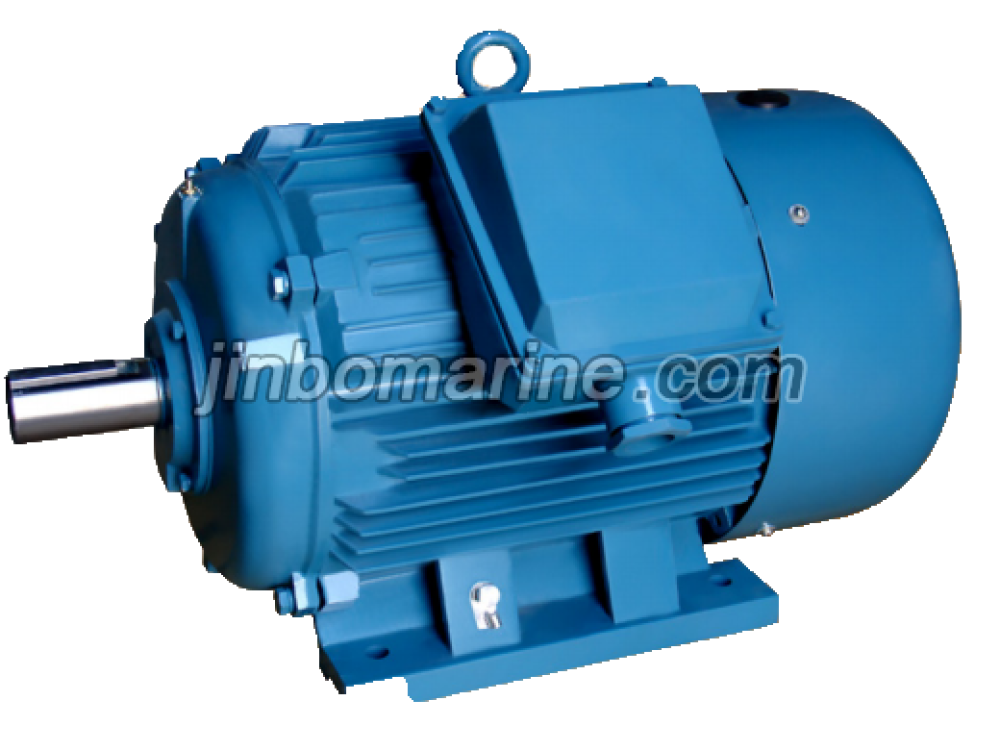

Introduction

YD-H series is a deriving series of YH series marine use threephase induction motors. It is able to change its poles and rotation speeds according to various loading, so as to match with the powers and to simplify speed-changing system. It has the features of high efficiency, energy saving, large starting torque, low noise and small vibration.

Enclosure is made of gray cast iron, surface of winding and all of metal parts should meet humid-tropic requirement. After specialized impregnation and well treatment to obtain the adequate damp-proof, anti-fungus, slatmist properties.It can be widely used drive marine machine which need varied speed.

Operating Conditions:

Ambient temperature: 0℃～ 45℃ ;

Altitude: 0m;

Relative humidity of air: ≤ 95%

Frozen dew: Oil dew: Fungus: Shock: Vibration: exist;

Inclination and Swing:±22.5°

Rated frequency: 50Hz/60Hz;

Rated Voltage: 380V/440V;

Protection class：IP44;

Insulation class: B or F;

Connecting methods: △ /YY、Y/ △ /YY、△ /Y △ /YY/YY;

Mounting ways: IMB3、IMB35、IMB5、IMV1;

Power scope: 0.45~250kW;

Frame size: H80~355

Duty: continuous S1

Pulley, spur gear and flexible coupling can be used for driving.

Main technical data

Type

Output
 /kW

Electric Current/A

Rotating Speed/
r/min

Connecting methods

Type

Output
 /kW

Electric Current/A

Rotating Speed/
r/min

Connecting methods

YD801-4/2-H 0.45/0.55 1.4/1.5 1420/2860 △ /YY YD160L-6/4-H 9/11 20.6/23.7 965/1465 △ /YY
YD802-4/2-H 0.55/0.75 1.7/2.0 1420/2860 YD160L-8/4-H 7/11 19.0/21.8 730/1455
YD90S-4/2-H 0.85/1.1 2.3/2.8 1415/2845 YD160L-8/6-H 6/8 17.5/19.4 730/980
YD90L-4/2-H 1.3/1.8 3.3/4.4 1410/2855 YD160L-12/6-H 3.7/7 16.1/15.8 485/975
YD90S-6/4-H 0.65/0.85 2.3/2. 3 920/1410 YD160L-6/4/2-H 4.5/7/9 11.4/15.1/18.8 980/1470/2940 Y/ △ /YY
YD90L-6/4-H 0.85/1.1 2.8/3.0 925/1415 YD160L-8/4/2-H 2.8/7/9 9.2/15.1/18.8 730/1470/2940
YD90L-8/4-H 0.45/0.75 1.9/1.9 670/1390 YD160L-8/6/4-H 4.5/6/7.5 13.8/14.5/15.6 735/980/1460 △ /Y/YY
YD90S-8/6-H 0.35/0.45 1.6/1.4 675/930 YD180M-6/4-H 4.5/14 17.5/32 984/1479 △ /YY
YD90L-8/6-H 0.45/0.65 1.9/1.8 680/920 YD180M-8/6-H 4.5/10 21/24.5 736/984
YD100L1-4/2-H 2/2.4 4.8/5.6 1435/2855 YD180M-8/6-H 5.5/10 22.1/24.5 736/984
YD100L2-4/2-H 2.4/3 5.6/6.7 1430/2855 YD180L-6/4-H 6.5/13 19.3/30.5 984/1479
YD100L1-6/4-H 1.3/1.8 3.8/4.4 940/1440 YD180L-6/4-H 4.5/15 17.5/33.5 984/1479
YD100L2-6/4-H 1.5/2.2 4.3/5. 4 945/1435 YD180L-6/4-H 13/16 28.6/35.5 984/1479
YD100L-8/4-H 0.85/1.5 3.1/3. 5 710/1415 YD180L-6/4-H 14/16 30/35.5 984/1479
YD100L-8/6-H 0.75/1.1 2.9/3.1 710/950 YD180L-6/4-H 5.5/17 18.3/36.8 984/1479
YD100L-6/4/2-H 0.75/1.3/1.8 2.6/3.7/4.5 950/1450/2905 Y/△ /YY YD180L-6/4-H 5/19.5 17.8/43 984/1479
YD112M-4/2-H 3.3/4 7.4/8.6 1460/2960 △ /YY YD180L-8/4-H 11/17 30/32 725/1460
YD112M-6/4-H 2.2/2.8 5.7/6. 7 945/1450 YD180L-8/4-H 5.5/19 23/36 725/1460
YD112M-8/4-H 1.5/2.4 5.0/5.3 690/1445 YD180L-8/6-H 2.5/12 22.1/27.5 725/1460
YD112M-8/6-H 1.3/1.8 4.5/4.8 695/950 YD200L-4/2-H 26/30 49.9/58.3 1470/2950 △ /YY
YD112M-6/4/2-H 1.1/2/2.4 3.5/5.1/5.8 960/1465/2975 Y/ △ /YY YD200L-6/4-H 8/24 24/48.2 980/1460
YD112M-8/4/2-H 0.65/2/2.4 2.7/5.1/5.8 685/1465/2975 YD200L-6/4-H 18.5/22 41.4/44.9 980/1460
YD112M-8/6/4-H 0.85/1/1.5 3.7/3.1/3.5 700/950/1460 △ /Y/YY YD200L-6/4-H 12/20 27.5/40.5 980/1460
YD132S-4/2-H 4.5/5.5 9.8/11.9 1470/2957 △ /YY YD200L-6/4-H 5/19 20/39 980/1460
YD132S-6/4-H 3/4 7.7/9.5 965/1470 YD200L-6/4-H 11/18.5 26/38.5 980/1460
YD132S-8/4-H 2.2/3.3 7.0/7.1 715/1465 YD200L-6/4-H 12/17 27.3/34 980/1460
YD132S-8/6-H 1.8/2.4 5.8/6.2 715/970 YD200L1-8/6-H 8/17 24/40 730/976
YD132S-6/4/2-H 1.8/2.6/3 5.1/6.1/7.4 970/1475/2970 Y/ △ /YY YD200L2-8/6-H 11/22 30/47 730/976
YD132S-8/4/2-H 1/2.6/3 3.5/5.9/7.0 710/1475/2970 YD200L2-8/6-H 15/20 31/43 730/976
YD132S-8/6/4-H 1.1/1.5/1.8 4.1/4.2/4.0 720/970/1470 △ /Y/YY YD200L2-8/6-H 10/20 28.5/43 730/976
YD132M-4/2-H 6.5/8 13.8/17.1 1470/2960 △ /YY YD200L-8/6/4-H 10/13/17 27.2/34/40 740/980/1470 Y/ △ /YY
YD132M-6/4-H 4/5.5 9.8/12.3 960/1470 YD225S-6/4-H 22/28 43.5/53.1 984/1479 △ /YY
YD132M-8/4-H 3/4.5 9.0/9.4 715/1465 YD225S-8/6/4-H 14/18.5/24 35/40/48 740/990/1480 △ /Y/YY
YD132M-8/6-H 2.6/3.7 5.8/6.2 715/970 YD225M-6/4-H 35/32 51.5/60.5 985/1475 △ /YY
YD132M1-6/4/2-H 2.2/3.3/4 6.0/7.5/8.8 970/1470/2970 Y/△ /YY YD225M-8/4-H 24/34 52.5/66.7 734/1469
YD132M2-6/4/2-H 2.6/4/5 6.9/9.0/10.8 970/1475/2960 YD225M-8/6-H 12/25 34/50 739/979
YD132M-8/4/2-H 1.3/3.7/4.5 4.6/8.4/10.0 710/1475/2970 YD225M-8/6-H 15/22 34/48 739/979
YD132M1-8/6/4-H 1.5/2/2.2 5.2/5.4/4.9 720/975/1470 △ /Y/YY YD225M-12/6-H 7.5/22 20/44 480/980 Y/YY
YD132M2-8/6/4-H 1.8/2.6/3 6.1/6.8/6.5 720/975/1470 YD225M-12/6-H 4.4/22 14. 8/44 480/980
YD160M-4/2-H 9/11 18.5/22.9 1460/2920 △ /YY YD250M-6/4-H 32/42 62/80 989/1482 △ /YY
YD160M-6/4-H 6.5/8 15.1/17.4 965/1460 YD250M-8/6-H 15/30 35/56 742/983
YD160M-8/4-H 5/7.5 13.9/15.2 730/1450 YD280S-8/6-H 20/37 48/69.5 720/970 △ /YY
YD160M-8/6-H 4.5/6 13.3/14.7 730/975 YD280S-8/6-H 18/37 43/69.5 743/970
YD160M-6/12-H 2.6/5 11.6/11.9 485/975 YD280M1-8/6-H 22/40 56/77 744/983
YD160M-6/4/2-H 3.7/5/6 9.5/11.2/13.2 975/1475/2945 Y/ △ /YY YD280M1-8/6-H 22/45 56/87 744/983
YD160M-8/4/2-H 2.2/5/6 7.6/11.2/13.2 730/1475/2945 YD280M2-8/6-H 27/55 65/108 744/983
YD160M-8/6/4-H 3.3/4/5.5 10.2/9.9/11.6 735/980/1460 △ /Y/YY YD280M-10/8-H 22/35 60/80 593/939 Y/Y
YD160L-4/2 11/14 22.3/28.8 1455/2925 △ /YY

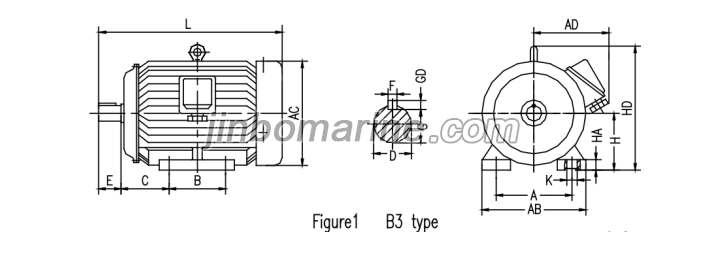

B3 Mounting and overall dimensions


Frame size

Mounting and overall dimensions

A B C D E F G GD H K AB AC AD HA HD L
80 125 100 50 19 40 6 15.5 6 80 10 165 165 160 12 205 290
90S 140 56 24 50 8 20 7 90 180 180 175 14 225 320
90L 125 350
100L 160 140 63 28 60 24 100 12 205 205 185 16 250 385
112M 190 70 112 245 230 195 18 270 405
132S 216 89 38 80 10 33 8 132 280 270 245 20 320 480
132M 178 520
160M 254 210 108 42 110 12 37 160 15 330 325 270 22 385 605
160L 254 650
180M 279 241 121 48 14 42.5 9 180 355 360 290 24 425 670
180L 279 710
200L 318 305 133 55 16 49 10 200 19 395 400 355 28 475 780
225S 356 286 149 55/60 110/140 16/18 49/53 10/11 225 435 450 370 30 530 825
225M 311 820/850
250M 406 349 168 60/65 140 18 53/58 11 250 24 490 495 455 32 570 935
280S 457 368 190 65/75 18/20 58/67. 5 11/12 280 550 550 470 38 640 1020
280M 419 1070
Note ：The numerators of fractions in the table give the data of 2-pole motors and the denominators of fractions the data motors more than 2-pole。

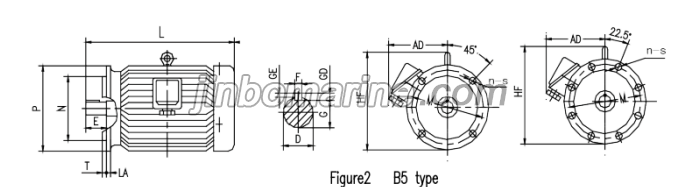

B5 Mounting and overall dimensions


Frame size

Mounting and overall dimensions

D E F G GD M N P S T n AC AD HF LA L
80 19 40 6 15.5 6 165 130 200 12 3.5 4 165 160 230 12 290
90S 24 50 8 20 7 180 175 235 320
90L 345
100L 28 60 24 215 180 250 15 4 205 185 275 14 385
112M 230 195 285 405
132S 38 80 10 33 8 265 230 300 270 245 340 18 480
132M 520
160M 42 110 12 37 300 250 350 19 5 325 270 400 605
160L 650
180M 48 14 42.5 9 360 290 420 670
180L 705
200L 55 16 49 10 350 300 400 400 355 470 780
225S 55/60 110/140 16/18 49/53 10/11 400 350 450 8 450 370 530 20 825
225M 820/850
Note ：The numerators of fractions in the table give the data of 2-pole motors and the denominators of fractions the data motors more than 2-pole。

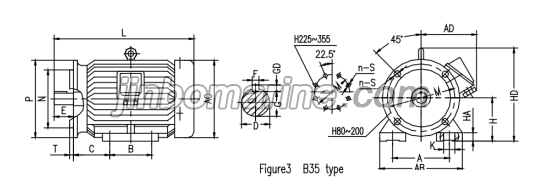

B35 Mounting and overall dimensions


Frame size

Mounting and overall dimensions

A B C D E F G GD H K M N P S T n AB AC AD HA HD L
80 125 100 50 19 40 6 15.5 6 80 10 165 130 200 12 3.5 4 165 165 160 12 205 290
90S 140 56 24 50 8 20 7 90 180 180 175 14 225 320
90L 125 350
100L 160 140 63 28 60 24 100 12 215 180 250 15 4 205 205 185 16 250 385
112M 190 70 112 245 230 195 18 270 405
132S 216 89 38 80 10 33 8 132 265 230 300 280 270 245 20 320 480
132M 178 520
160M 254 210 108 42 110 12 37 160 15 300 250 350 19 5 330 325 270 22 385 605
160L 254 650
180M 279 241 121 48 14 42.5 9 180 355 360 290 24 425 670
180L 279 710
200L 318 305 133 55 16 49 10 200 19 350 300 400 395 400 355 28 475 780
225S 356 286 149 55/60 110/140 16/18 49/53 10/11 225 400 350 450 8 435 450 370 30 530 825
225M 311 820/850
250M 406 349 168 60/65 140 18 53/58 11 250 24 500 450 550 495 495 455 32 570 935
280S 457 368 190 65/75 18/20 58/67.5 11/12 280 550 550 470 38 640 1020
280M 419 1070
Note : The numerators of fractions in the table give the data of 2-pole nntors and the denominators of fractions the data nntors more than 2-pole。

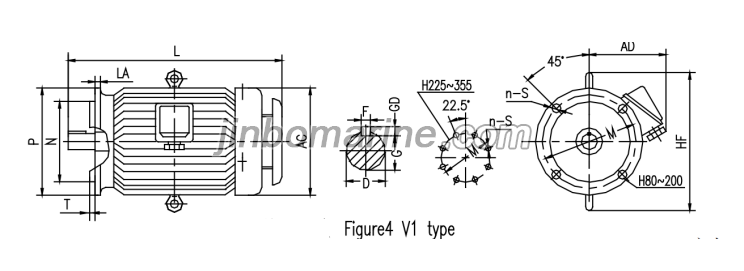

V1 Mounting and overall dimensions


Frame size

Mounting and overal1 dimensions

D E F G GD M N P S T n AC AD HF LA L
80 19 40 6 15.5 6 165 130 200 12 3.5 4 165 165 260 12 335
90S 24 50 8 20 7 180 180 270 365
90L 400
100L 28 60 24 215 180 250 15 4 205 195 300 14 430
112M 230 205 320 450
132S 38 80 10 33 8 265 230 300 270 265 380 18 535
132M 575
160M 42 110 12 37 300 250 350 19 5 325 270 450 660
160L 705
180M 48 14 42.5 9 360 290 490 730
180L 765
200L 55 16 49 10 350 300 400 400 355 550 840
225S 55/60 110/140 16/18 49/53 10/11 400 350 450 8 450 370 610 20 890
225M 880/915
250M 60/65 140 18 53/58 11 500 450 550 495 455 640 22 995
280S 65/75 18/20 58/67.5 11/12 550 470 720 1090
280M 1140
Note : The numerators of fractions in the table give the data of 2-pole nntors and the denominators of fractions the data nntors more than 2-pole。
