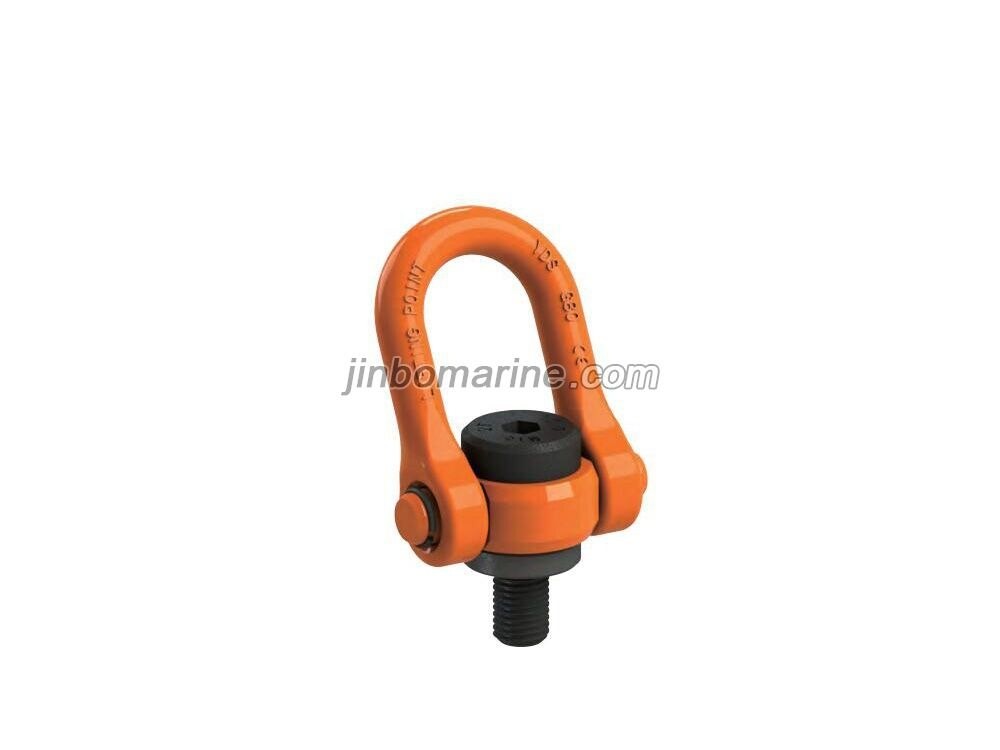

YDS Swivel Hoist Ring With Unc Thread

1.360° rotation, 180° flip
The lifting ring can rotate with the direction of the force to adjust the angle of the force.
2.High Strength
The bolts are made of alloy steel 42CrMo, the tensile strength before heat treatment is 1080Mpa, the mechanical properties are improved after the material is changed, the rotating base is a one-piece design and is forged as a whole for higher strength.
3.4 times safety factor
Different loads can be lifted in different directions, but 4 times safety factor is guaranteed
4.Easy to install
The bolt has a hexagonal design, and the lifting point can be easily installed on the object to be lifted by a wrench.
5.Complete specifications
The thread specifications are complete, the rated load range is wide (M8-M100, 0.5T-50T), and the thread size can be customized according to customer requirements.

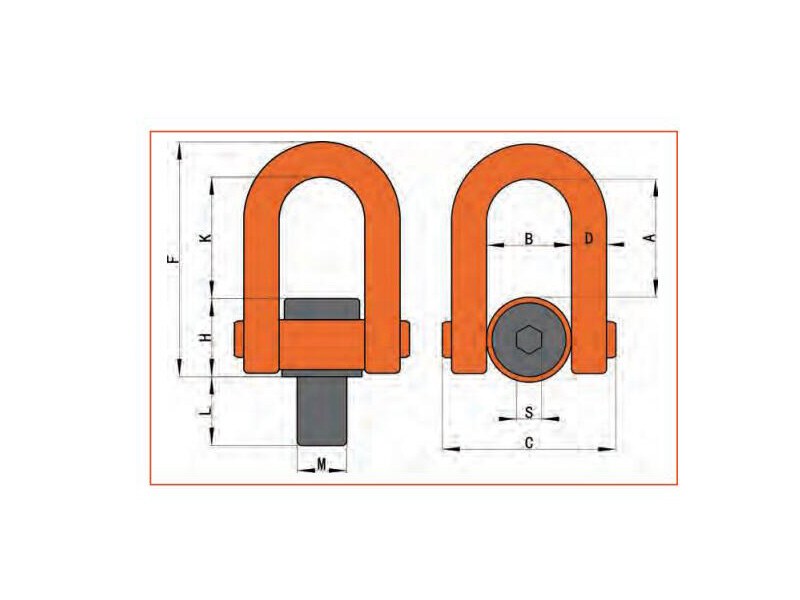

YDS Swivel Hoist Ring With Unc Thread Drawing

YDS Swivel Hoist Ring With Unc Thread Parameters

ITEM NO. WLL/T TPI TORQUE/Nm WEIGHT/KG
YDS-5/16 0.5T 5/16-18UNC 30 0.8
YDS-3/8 0.7T 3/8-16UNC 60 0.8
YDS-7/16 1T 7/16-14UNC 100 0.8
YDS-1/2 1.5T 1/2-13UNC 120 0.8
YDS-5/8 2T 5/8-11UNC 150 0.8
YDS-3/14 3T 3/4-10UNC 250 2
YDS-1 4.5T 1-8UNC 400 2.5
YDS-1-1/4 8T 1 1/4-7UNC 800 5.5
YDS-1-1/2 10T 1 1/2-6UNC 1000 5.5
YDS-1-3/4 15T 1 3/4-5UNC 1800 6
YDS-2 20T 2-4.5UNC 2000 12
YDS-2-1/2 32T 2 1/2-4UNC 2200 13
ITEM NO. TECHNICAL PARAMETERS/MM
L A B C
YDS-5/16 12 48.5 37 76
YDS-3/8 16 48.5 37 76
YDS-7/16 18 48.5 37 76
YDS-1/2 21 48.5 37 76
YDS-5/8 24 48.5 37 76
YDS-3/14 40 73 54 106
YDS-1 40 73 54 106
YDS-1-1/4 45 98.5 74 149
YDS-1-1/2 54 98.5 74 149
YDS-1-3/4 63 98.5 74 149
YDS-2 68 117.5 93 183
YDS-2-1/2 90 117.5 93 183
ITEM NO. TECHNICAL PARAMETERS/MM
D F K H S
YDS-5/16 14 103.5 49.5 40 10.5
YDS-3/8 14 103.5 49.5 40 10.5
YDS-7/16 14 103.5 49.5 40 10.5
YDS-1/2 14 103.5 49.5 40 10.5
YDS-5/8 14 103.5 49.5 40 10.5
YDS-3/14 20 151 77 54 14.5
YDS-1 20 151 77 54 14.5
YDS-1-1/4 30 206.5 103.5 73 22.5
YDS-1-1/2 30 206.5 103.5 73 22.5
YDS-1-3/4 30 206.5 103.5 73 22.5
YDS-2 36 255 122 93 27.5
YDS-2-1/2 36 255 122 93 27.5
