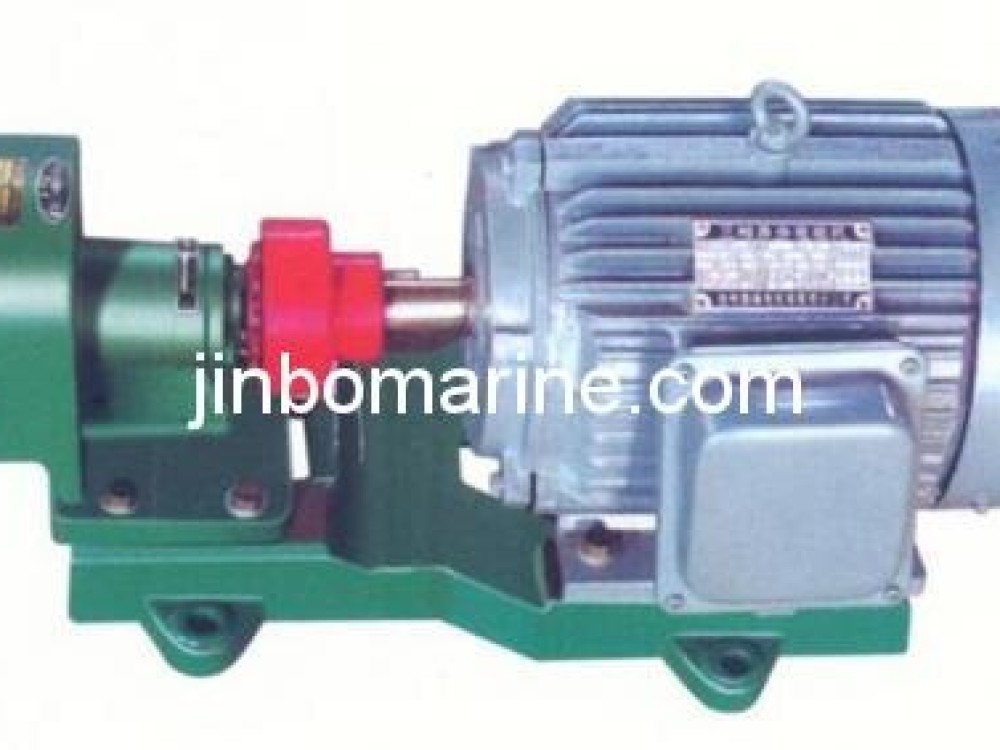

YHB Series Lub Oil Gear Pump
- Category:Gear Pump
- Material:cast iron,stainless steel shaft, cast iron gear
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
YHB series lub oil gear pump
General description
The YHB series lub oil gear pump consist of the pump head,front and back cover,Flat thin bearing,the driven shaft,safety valve and shaft end seal and etc.The main driving wheel is made up of four helical gear herringbone gear group The relief valve uses the differential pressure type structure.YHB series of gear lubrication oil pump is suitable for conveying not containing solid particles and fibers cover,Flat thin bearing,the driven shaft,safety valve and shaft end seal and etc.lub oil or similar lubricity properties liquid.
Techinial parameter
| Type | Capacity | Pressure | Suction pressure | Speed | Motor power | Motor model | Nominal Dia | |
| m3/h | mpa | mpa | r/min | kw | mm | |||
| YHB80-0.6H | 4.8 | 0.6 | -0.03 | 1500 | 3 | Y100L | 40 | |
| YHB100-0.6H | 6 | 0.6 | -0.03 | 3 | Y100L | 40 | ||
| YHB125-0.6H | 7.5 | 0.6 | -0.03 | 4 | Y112M | 40 | ||
| YHB160-0.6H | 9.6 | 0.6 | -0.03 | 5.5 | Y132S | 50 | ||
| YHB180-0.6H | 10.8 | 0.6 | -0.03 | 5.5 | Y132S | 50 | ||
| YHB200-0.6H | 12 | 0.6 | -0.03 | 5.5 | Y132S | 50 | ||
| YHB260-0.6H | 15.6 | 0.6 | -0.03 | 1000 | 5.5 | Y132M | 65 | |
| YHB280-0.6H | 16.8 | 0.6 | -0.03 | 7.5 | Y160M | 65 | ||
| YHB300-0.6H | 18 | 0.6 | -0.03 | 7.5 | Y160M | 65 | ||
| YHB350-0.6H | 21 | 0.6 | -0.03 | 1500 | 7.5 | Y132M | 65 | |
| YHB400-0.6H | 24 | 0.6 | -0.03 | 11 | Y160M | 65 | ||
| YHB450-0.6H | 27 | 0.6 | -0.03 | 11 | Y160M | 100 | ||
| YHB500-0.6H | 30 | 0.6 | -0.03 | 1000 | 15 | Y180L | 100 | |
| YHB550-0.6H | 33 | 0.6 | -0.03 | 15 | Y180L | 100 | ||
| YHB630-0.6H | 37.8 | 0.6 | -0.03 | 15 | Y180L | 100 | ||
| YHB700-0.6H | 42 | 0.6 | -0.03 | 18.5 | Y200L | 100 | ||
| YHB800-0.6H | 48 | 0.6 | -0.03 | 1500 | 22 | Y180L | 100 | |
| YHB900-0.6H | 54 | 0.6 | -0.03 | 30 | Y200L | 100 | ||
| YHB1000-0.6H | 60 | 0.6 | -0.03 | 30 | Y200L | 100 | ||
