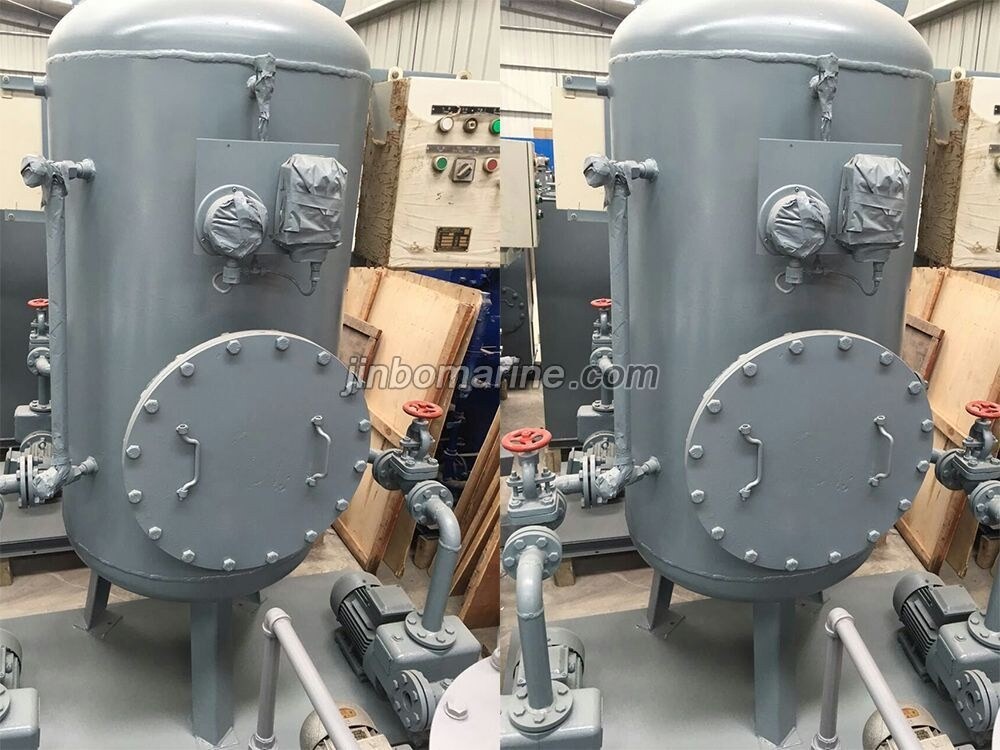

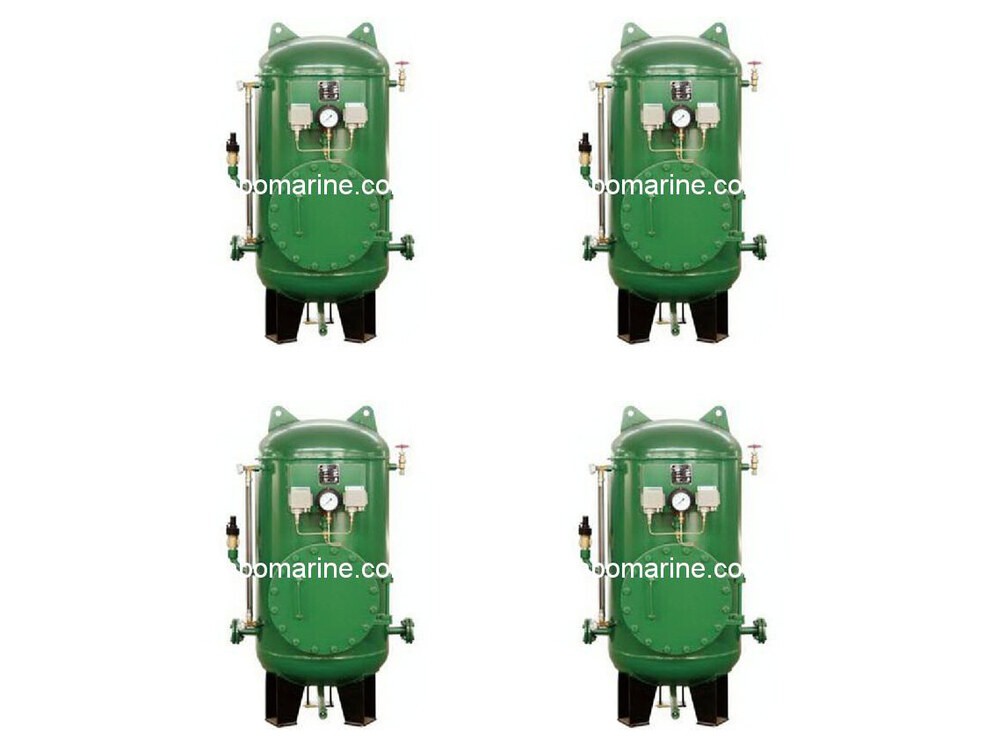

YLG-3.0 Hydrophore Tank

  • Category:Pressure Water Tank
  • Certificate:CCS,GL,BV etc.
  • Material:Stainless steel 304 or Carbon Steel
  • Packing Details:Standard Export Packaging
  • Delivery Time:20 days
  • Supply Ability:15 sets/month
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China YLG-3.0 Hydrophore Tank:

Product Description:

The pressure water tank can be used to provide fresh water for living and

cleaning of ship and drilling platforms.

Working Principle:

This device uses pressured water perersteed by pump prouded by

shipxard,to compress the air inside of tank,in order to maintain the water in

cabinet body under a snitable air pressure.So as to provide fresh water to the

crews.

Technical Requirements:

1. Flange Standard:CB/T46-1999 PN1.0.
2. The shell cover thickness including the forming thinning.
3. The system including security settings.
4. Pipes and support same as the drawings.

Design Datas:

Working Pressure

0.6Mpa

Design Pressure

0.7Mpa

Working Temp.

0~45℃

Design Temp.

50℃

Main Materials

CCS-B/SS304/SS316

corrosion allowance

0.75mm

welded joint coefficient

0.6

Capacity

3.0m³

The relief valve pressure jump

0.63MPa

G.W.

865 Kgs (with standard export wooden case)

N.W.

775 Kgs
