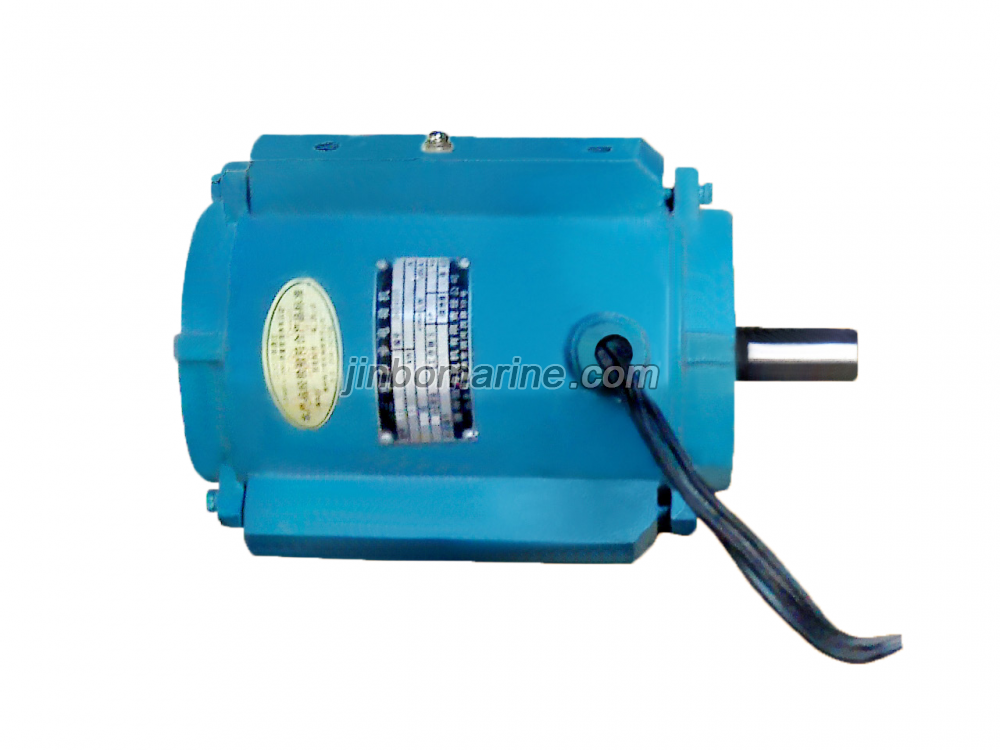

YT Series Totally-Enclosed Three-Phase Induction Motor
- Category:Marine Electric Motor
- Certificate:CCS/LR/DNV/KR
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Introduction
YT series are totally-enclosed three phase induction motor of squirrel-cage type, it has the feature of high efficiency, energy saving, big starting torque, good performance and low noise.
Operation condition
Ambient temperature: -15℃～ 45℃；
Altitude: less than 1000m;
Rated frequency:50Hz;
Rated voltage: 380V
Connection: 3kw or less Y, more than 3kW △
Technical Data
Type |
Output
|
Current A |
Speed r/min |
Type |
Output
|
Current A |
Speed r/min |
| YT80M1-2 | 0.75 | 1.8 | 2825 | YT112M-4 | 4 | 8.8 | 1440 |
| YT80M2-2 | 1.1 | 2.5 | 2825 | YT132S-4 | 5.5 | 11.6 | 1440 |
| YT90S-2 | 1.5 | 3.4 | 2840 | YT132M-4 | 7.5 | 15.4 | 1440 |
| YT90L-2 | 2.2 | 4.7 | 2840 | YT80M1-6 | 0.37 | 1.3 | 890 |
| YT100L-2 | 3.0 | 6.4 | 2880 | YT80M2-6 | 0.55 | 1.7 | 890 |
| YT112M-2 | 4.0 | 8.2 | 2890 | YT90S-6 | 0.75 | 2.3 | 910 |
| YT132S1-2 | 5.5 | 11.1 | 2900 | YT90L-6 | 1.1 | 3.2 | 910 |
| YT132S2-2 | 7.5 | 15.0 | 2900 | YT100L-6 | 1.5 | 4.0 | 940 |
| YT80M1-4 | 0.55 | 1.5 | 1390 | YT112M-6 | 2.2 | 5.6 | 940 |
| YT80M2-4 | 0.75 | 2.0 | 1390 | YT132S-6 | 3.0 | 7.2 | 960 |
| YT90S-4 | 1.1 | 2.7 | 1400 | YT132M1-6 | 4.0 | 9.4 | 960 |
| YT90L-4 | 1.5 | 3.7 | 1400 | YT132M2-6 | 5.5 | 12.6 | 960 |
| YT100L1-4 | 2.2 | 5.0 | 1420 | YT132S-8 | 2.2 | 5.8 | 710 |
| YT100L2-4 | 3 | 6.8 | 1420 | YT132M-8 | 3.0 | 7.7 | 710 |

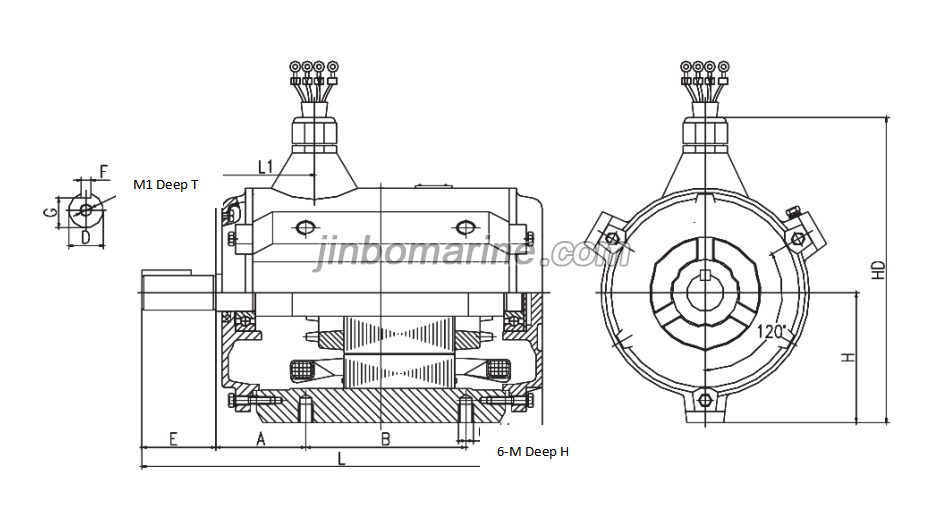

Mounting and Overall Dimension
Frame size |
mounting and overall dimension |
|||||||||||
A |
B |
D |
E |
F |
G |
H |
L1 |
M Deep h |
M1 Deep t |
L |
HD |
|
| 80 | 61 | 83 | 19 | 40 | 6 | 15.5 | 86 | 48 | M8 Deep 15 | M6 Deep 15 | 250 | 200 |
| 90S | 60 | 86 | 24 | 50 | 8 | 20 | 100 | 55 | M12 Deep 18 | M8 Deep 15 | 270 | 230 |
| 90L | 115 | 295 | ||||||||||
| 100L | 73 | 130 | 28 | 60 | 8 | 24 | 105 | 80 | M12 Deep 15 | M10 Deep 15 | 330 | 250 |
| 112M | 80 | 130 | 115 | 85 | M12 Deep 15 | M10 Deep 20 | 340 | 275 | ||||
| 132S | 100 | 130 | 38 | 80 | 10 | 33 | 135 | 105 | M14 Deep 18 | M12 Deep 20 | 400 | 315 |
| 132M | 168 | 440 | ||||||||||
