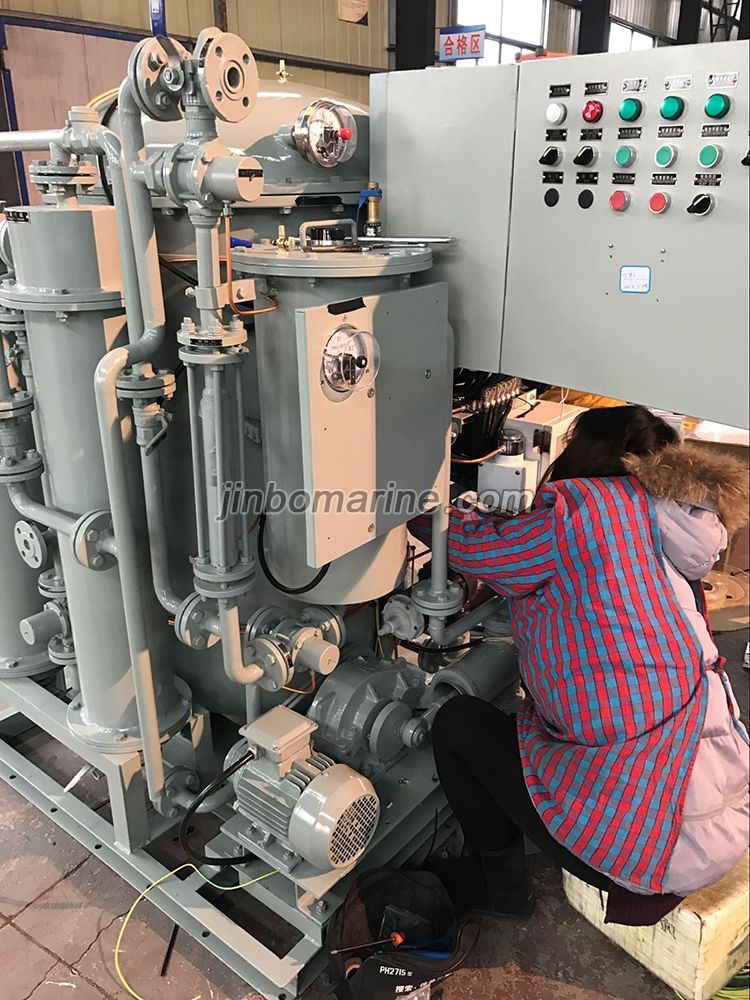

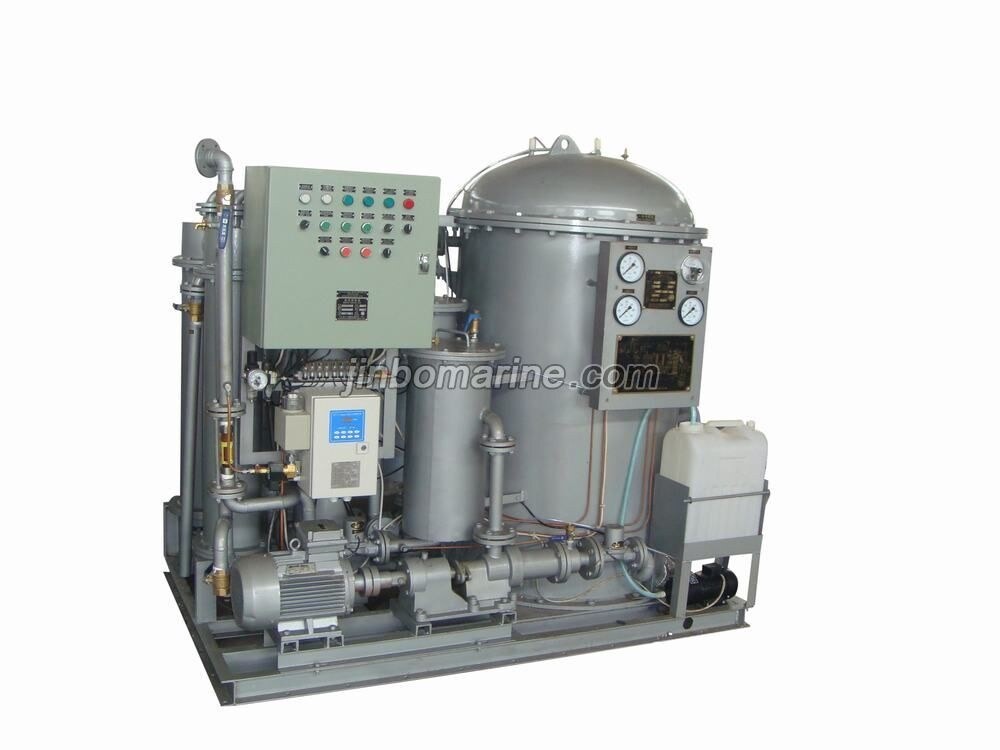

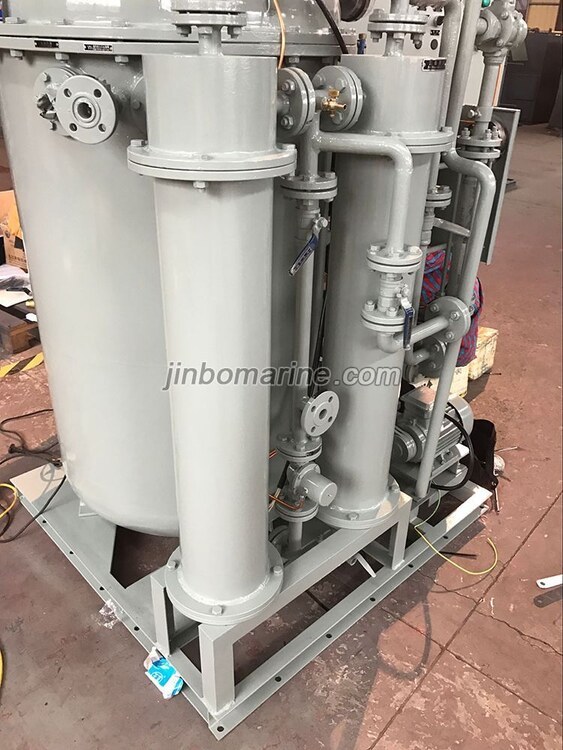

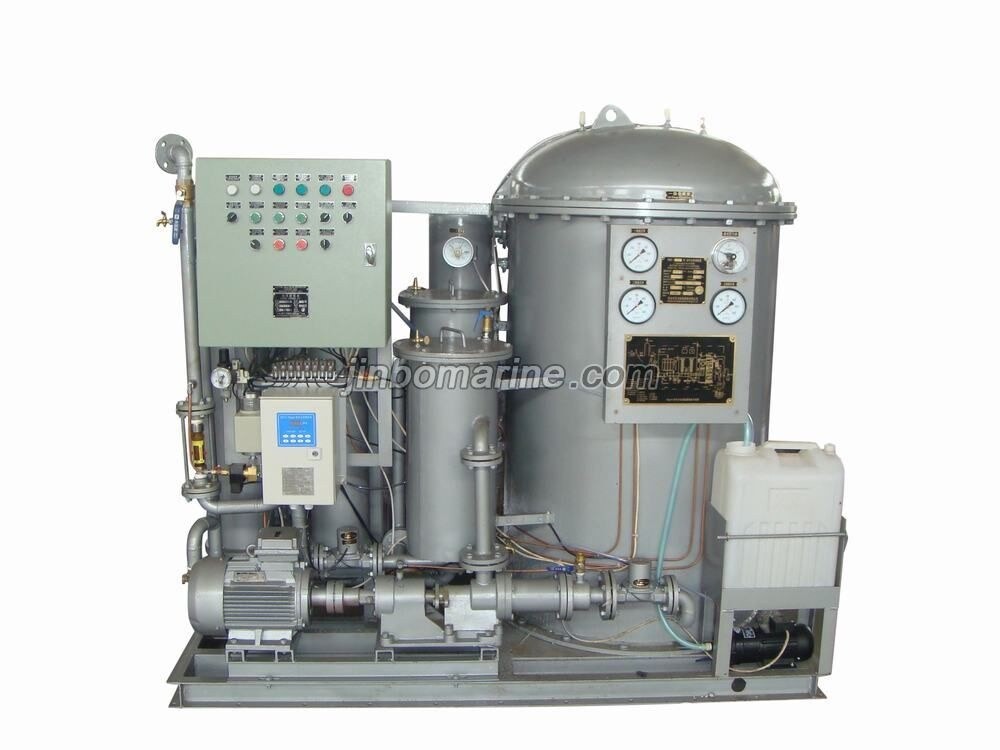

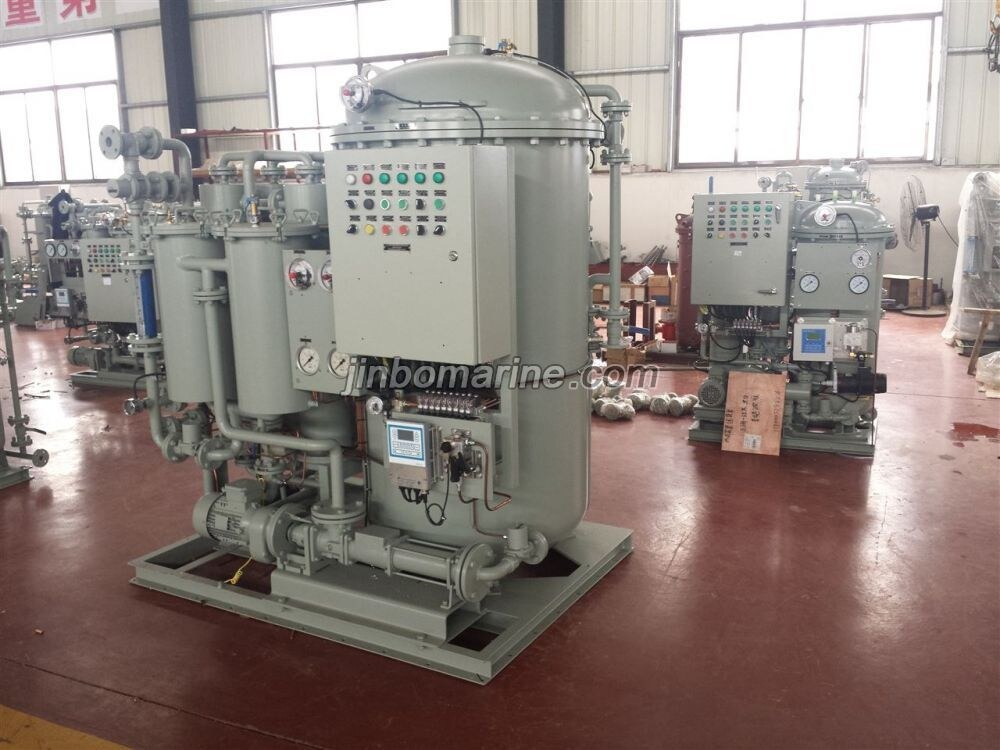

YWC-2.00 Oily Water Separator

Category:Marine Oil Water Seperator
Standards:International maritime IMO.MEPC.107(49) standard.
Certificate:BV,EC,CCS, GL
Material:Carbon Steel
Packing Details:Standard Export Packaging
Supply Ability:15 sets/month
Delivery Time:15-20days
Fob Price:Get Latest Price Now
Place of Origin:China
Attachment:[ ]

Request a Quote Not what you need, please send your RFQs via Email.

Details

Oily Water Separator:

Rated capacity:2.00 m3/h

It is a kind of environmental protection product designed based on international maritime IMO.MEPC.107(49) standard,the oil content in effluent water equal or less than 15ppm.The resolution made the fully new requirement referring to 15ppm bilge treatment plant in Annex I of MARPOL73/78.

It can effectively dispose all kinds of bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.It can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from our ballast oily water separator can meet any standards of Environment Bureau in China.

The smallest type is 0.25 m3/hour capacity which can be installed on ship less than 1 KDWT .The biggest type is 5.00 m3/hour capacity which can be installed on ship more than 300 KDWT.

Technical Data:

Rated capacity		2.00 m3 per hour
Power of the electric heater		6kw
Power of the electric motor		1.1kw
Outline Dimension(LxWxH)		1900x1120x1700
Base		8#
Weight	Dry Weight	1260
	Wet Weight	2260
Applicable Vessel		30-50DWT
Optional electrical system		AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase.

Oil content of the discharged water		Not more than 15ppm
Suction head		Not more than 6m-H2O
Pressure of the discharged water		5-10m-H2O
