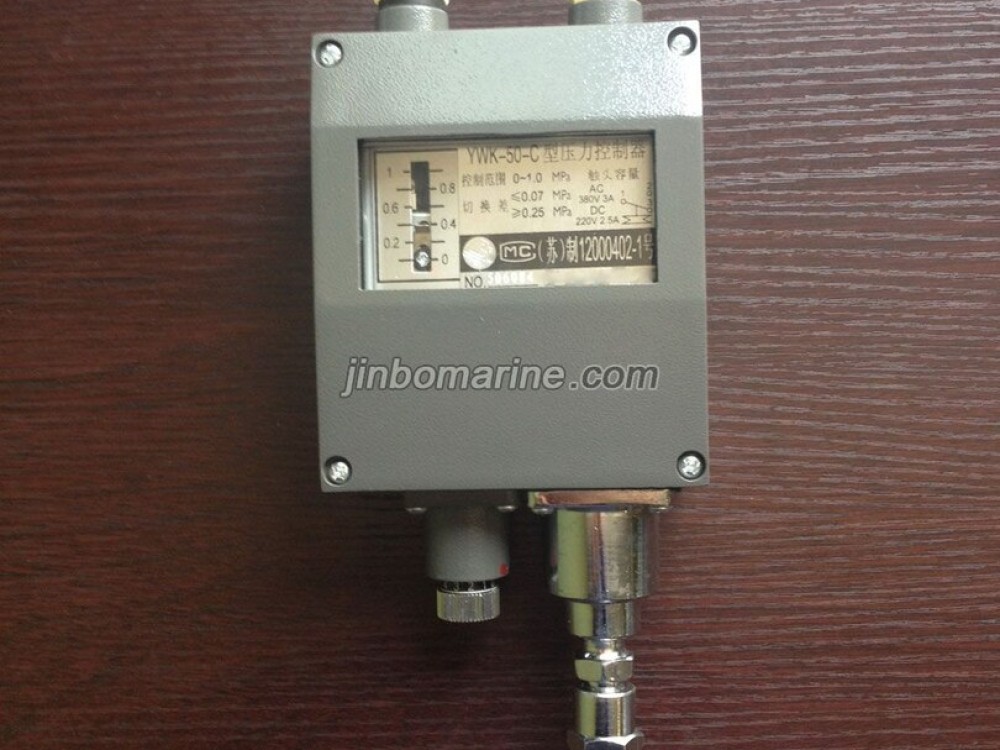

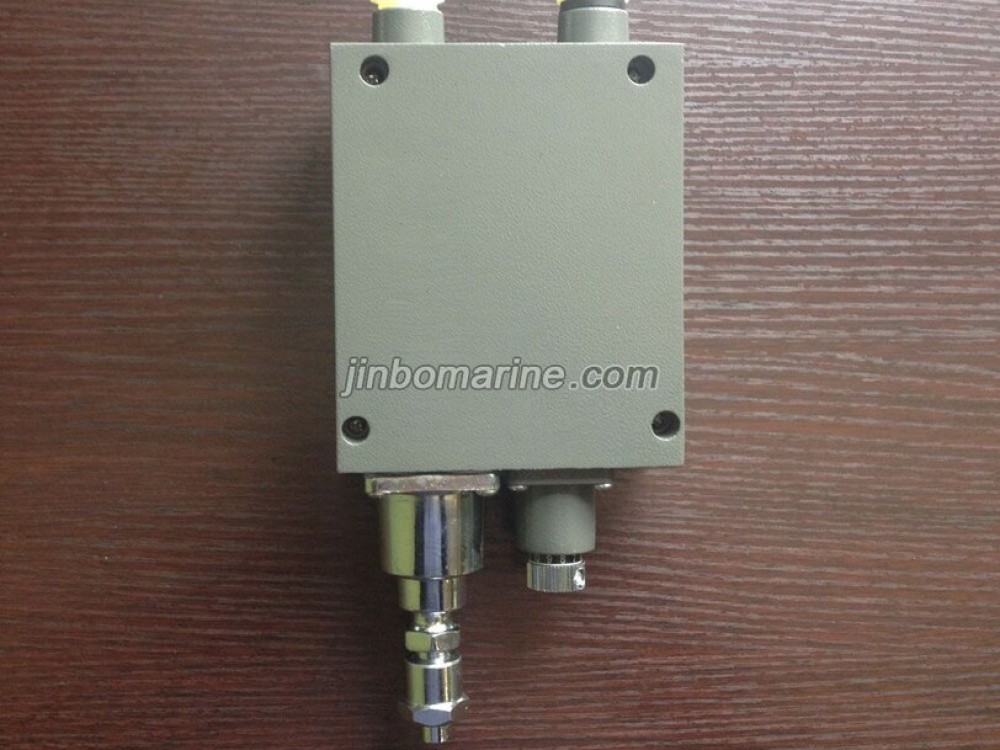

YWK-50-C Type Pressure Controller
- Category:Marine Pressure Instrument
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
YWK-50-C Type Pressure Controller is an electric switch that can make the circuit close or open following the change of pressure. It can be used to control pressure gas,steam or liquid by two position type to support performance structure in ship and freeze equipment or other industrial equipment.
Main Technical Specification:
| Control range | Adjustment range of differential gap |
Error of set value (Mpa) |
Error of
repeatability (Mpa) |
Remark | |
| min switching differential | max switching differential | ||||
| -0.1~0 | ≤0.006 | ≥0.028 | ±0.004 | ±0.003 | The controlled meidum is not corrosive to brass, stainless steel and Sn-cu solder |
| 0~0.1 | ≤0.006 | ≥0.028 | ±0.004 | ±0.003 | |
| 0~0.2 | ≤0.01 | ≥0.08 | ±0.008 | ±0.006 | |
| 0~0.3 | ≤0.025 | ≥0.1 | ±0.012 | ±0.008 | The controlled meidum is not corrosive to brass, lead,bronze, stainless steel and Sn-cu solder |
| 0~0.5 | ≤0.03 | ≥0.1 | ±0.02 | ±0.008 | |
| 0~0.8 | ≤0.07 | ≥0.25 | ±0.032 | ±0.015 | |
| 0~1.0 | ≤0.07 | ≥0.25 | ±0.04 | ±0.02 | |
| 0~1.5 | ≤0.1 | ≥0.28 | ±0.06 | ±0.025 | The controlled meidum is not corrosive to brass, lead, stainless steel and Sn-cu solder |
| 0~2.0 | ≤0.12 | ≥0.3 | ±0.08 | ±0.035 | |
| 0~3.0 | ≤0.15 | ≥0.5 | ±0.12 | ±0.05 | |
| 0~4.0 | ≤0.25 | ≥0.6 | ±0.16 | ±0.07 | |
| Contact capacity:AC380V 3A DC220V 2.5A | |||||
| Protection:IP44 | |||||
