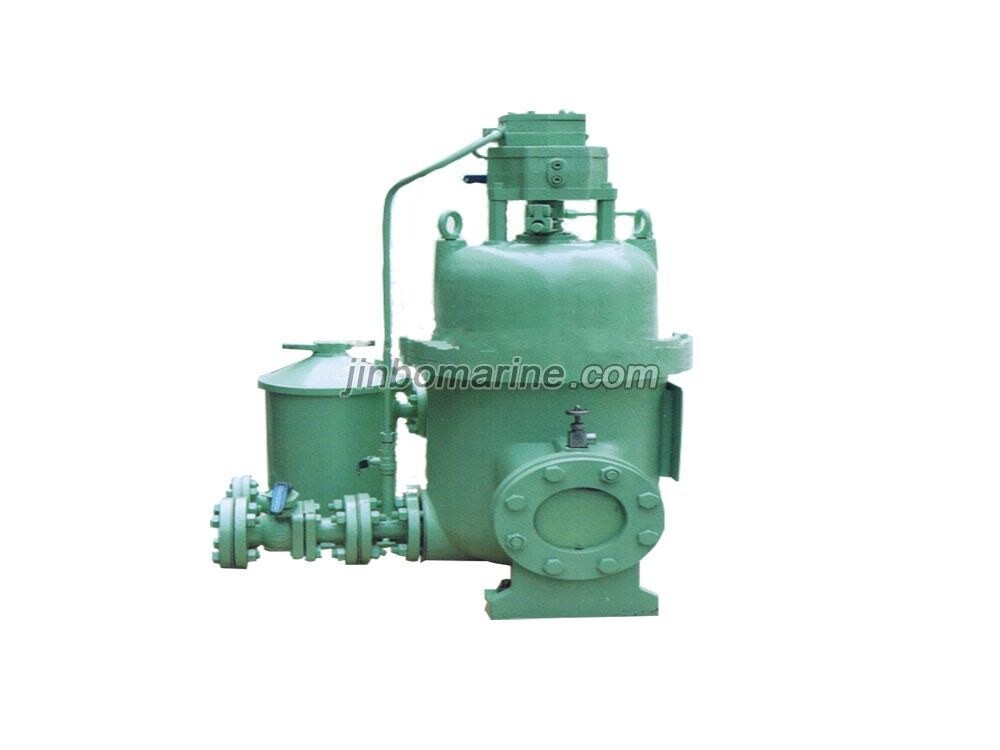

YZL100 Completely Automatic Lubricating Oil Filter
- Category:Filter
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

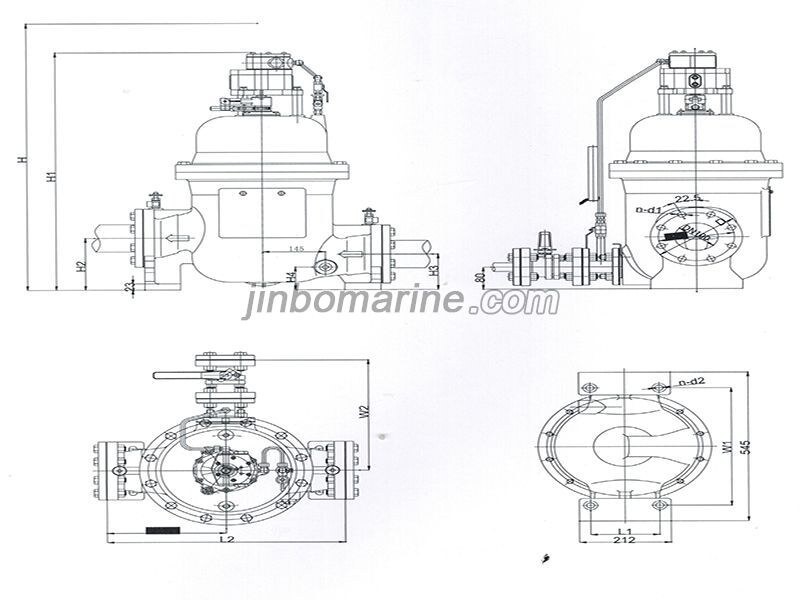

YZL100 Completely Automatic Lubricating Oil Filter Structure Diagram
YZL100 Completely Automatic Lubricating Oil Filter Technical Parameters
| Model | Flow(referencem³/h) | Caliber and jointing size(mm) | Overall size(mm) | Installing size(mm) | Weight(kg) | ||||||||||
| DN | D | D1 | L1 W1 | N-D1 | N-D2 | H | H1 | H2 | H3 | H4 | L2 | W2 | |||
| YZL-200 | 180 | 200 | 340 | 295 | 327 | 8-18 | 4-18 | 1800 | 1388 | 518 | 318 | 225 | 750 | 675 | |
| YZL-150 | 77 | 150 | 280 | 240 | ᵩ500 | 8-23 | 4-23 | 1500 | 1270 | 460 | 270 | 205 | 560 | 338 | 370 |
| YZL-100 | 62 | 100 | 212 | 175 | 160 430 | 8-19 | 4-19 | 1200 | 870 | 190 | 130 | 83 | 550 | 405 | 190 |
| YZL-65 | 45 | 65 | 185 | 145 | ᵩ368 | 4-18 | 4-18 | 1200 | 1014 | 300 | 182 | 43 | 434 | 456 | 200 |
