YZL50C Completely Automatic Lubricating Oil Filter
- Category:Filter
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

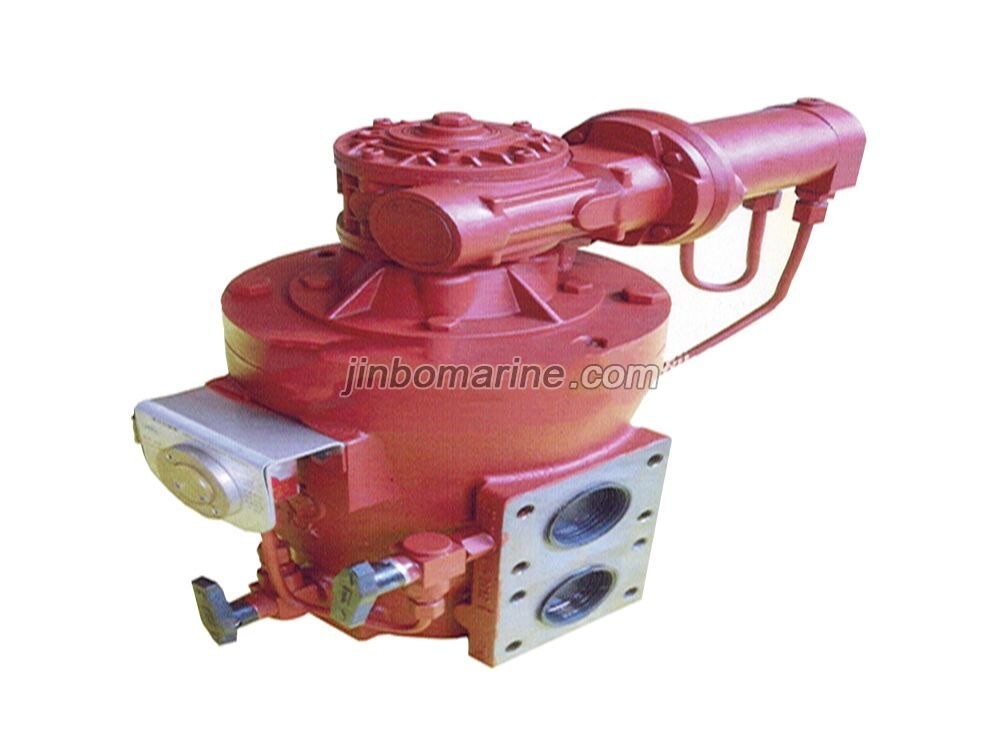

YZL50C Completely Automatic Lubricating Oil Filter
Features:
Fully automatic strainer: it's applicable for filtering lubricant,fuel oil and heavy oil,with an operation temperature designed as I T≤85℃. Range of filtering precision avaliable for option is designed between40-400 mesh/inch. Flow:40-80M3/H.
Characteristics:
1.It is driven by hydraulic motor and wash continuously using self filtered oil medium.
2.The installing and operationg is very convenient, safe and liable. it's driving does not need power or compressed air.
3.Continuous auto backwashing to ensure higher filter precision.

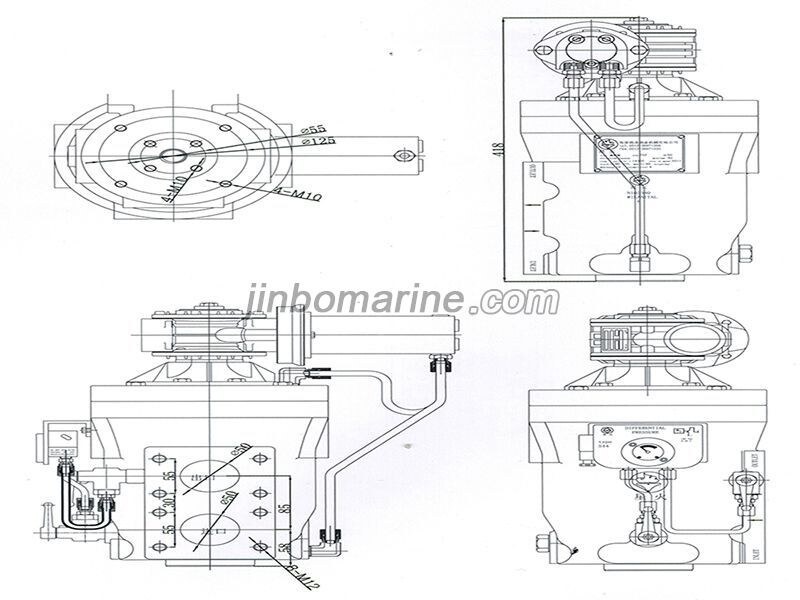

YZL50C Completely Automatic Lubricating Oil Filter Structure Diagram
YZL50C Completely Automatic Lubricating Oil Filter Technical Parameters:
Model | Rated flow | Work pressure | Work temperature | Fliter precision | |||||
YZL50C | 4m³/h | ≤1MPa | ≤90℃ | 30um |
