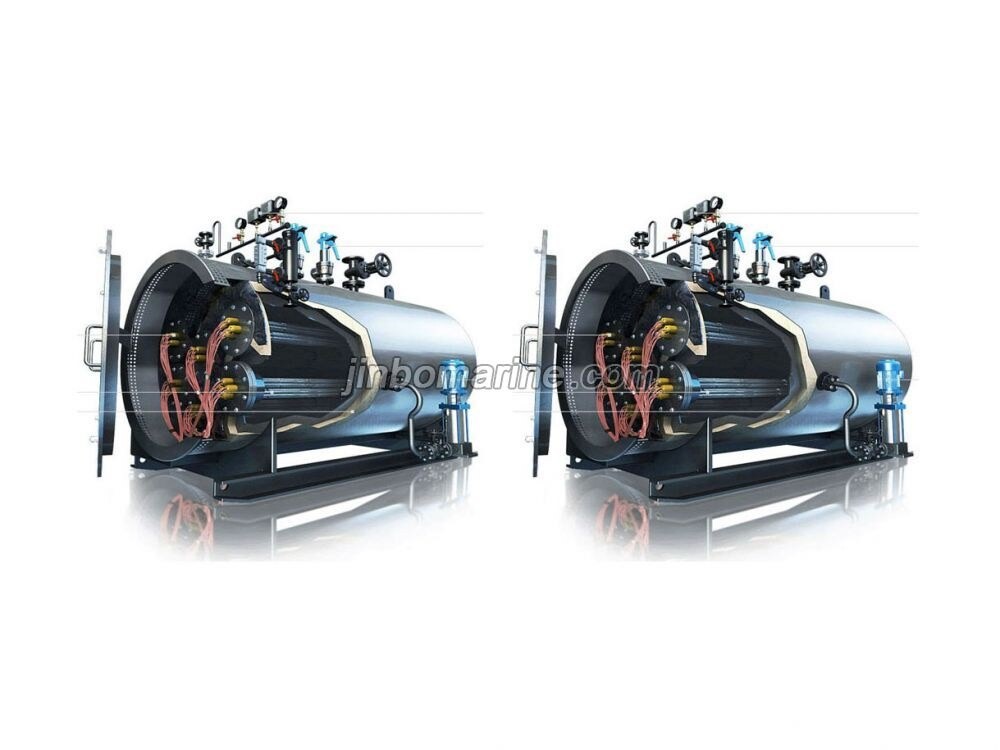

ZDR Series Electric and Steam Heating Water Tank

  • Category:Marine Calorifier
  • Certificate:CCS,GL,BV etc.
  • Material:Carbon Steel, SS304
  • Packing Details:Standard Export Packaging
  • Delivery Time:15-20days
  • Supply Ability:10 sets/month
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Application:

This series hot water tank is suitable for heating fresh water by electricity or steam on the ship or platform, heated fresh water for crew use.

ZDR series electric or steam heating water tank

This series heating water tank is used on various ships. The tank is applicable for fresh water.

The heated water by steam or electric power can be supplied for all persons of the ship on living. Main Technical Parameters

Model

ZDR-0.2

ZDR-0.3

ZDR-0.5

ZDR-1.0

ZDR-1.5

ZDR-2.0

ZDR-2.5

Volume (m3)

0.2

0.3

0.5

1

1.5

2

2.5

Design Pressure (Mpa)

0.45

Working Pressure (Mpa)

0.4

Water Inlet Temp. (℃)

15

Water Outlet Temp. (℃)

65

Steam Pressure (Mpa)

0.3

Amount of Steam Heating Water (kg/h)

450

750

1200

3250

4450

6500

7700

Steam Consumption (kg/h)

45

75

120

325

445

650

770

Amount of Heating Water (kg/h)

135

180

270

360

540

540

540

Electric Heating Power (kw)

9

12

18

24

36

36

36

Assorted Water Pump

Model

1WZ-0.9

1.5WZ-2

Capacity (m3/h)

1

3

Pressure (Mpa)

0.37

0.4

Power (kw)

1.5

2.2
