ZX-5DCZ Marine Electromagnetic Range
- Category:Electric Heater
- Material:Stainless steel 304
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

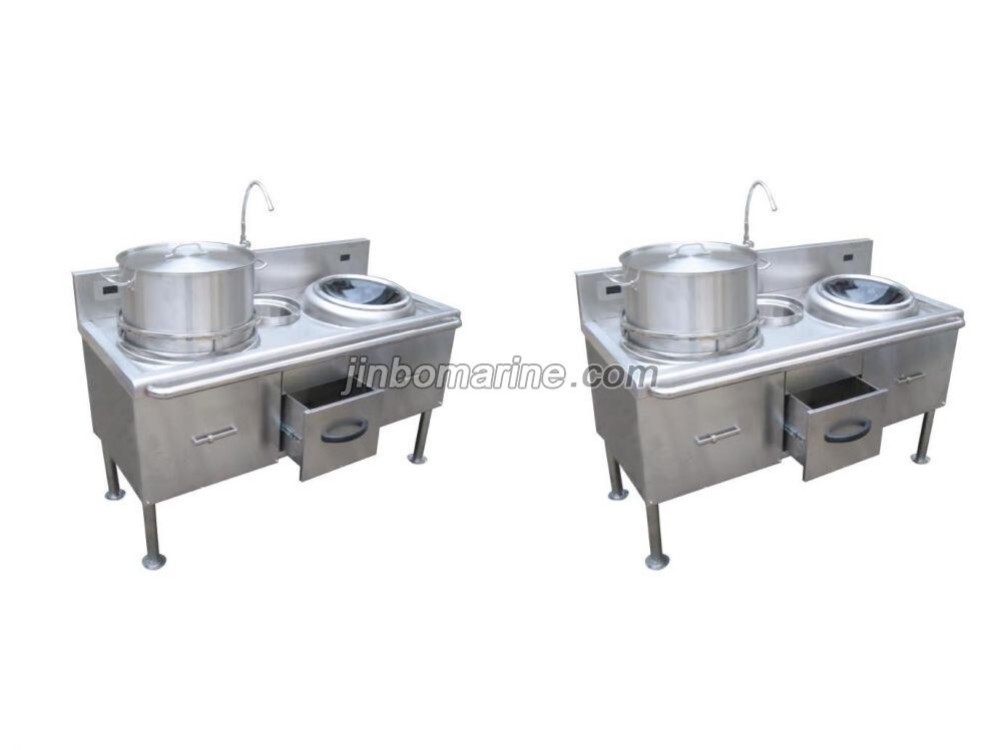

Marine Electromagnetic Range
Product introduction:
1. The shell adopts 304 stainless steel material, durable;
2. The core component (microcrystalline panel, core) imported from Germany, the greatest degree of protection of stable and reliable performance;
3. The easy to use, fast heating speed, no fire, smoke-free, no emissions, good safety;
4. The fifth is provided with a power regulation switch and digital display;
5. The adjustable foot, adjustable range of positive and negative 30mm.
Technical data:
Model | Dimension(mm) | Capacity(people) | Power (kw) | Volts(v) | HZ | N/W(kg) |
ZX-3DCZ | 420X550X390 | 10 | 3 | 380v/415v/440v/480v-3p | 50/60Hz | 20 |
ZX-5DCZ | 700X700X850 | 20 | 5 | 380v/415v/440v/480v-3p | 50/60Hz | 60 |
ZX-8DCZ | 800X800X850 | 30 | 8 | 380v/415v/440v/480v-3p | 50/60Hz | 75 |
ZX-10DCZ | 1200X800X850 | 50 | 2x5 | 380v/415v/440v/480v-3p | 50/60Hz | 90 |
ZX-16DCZ | 1200X800X850 | 60 | 2x8 | 380v/415v/440v/480v-3p | 50/60Hz | 105 |
