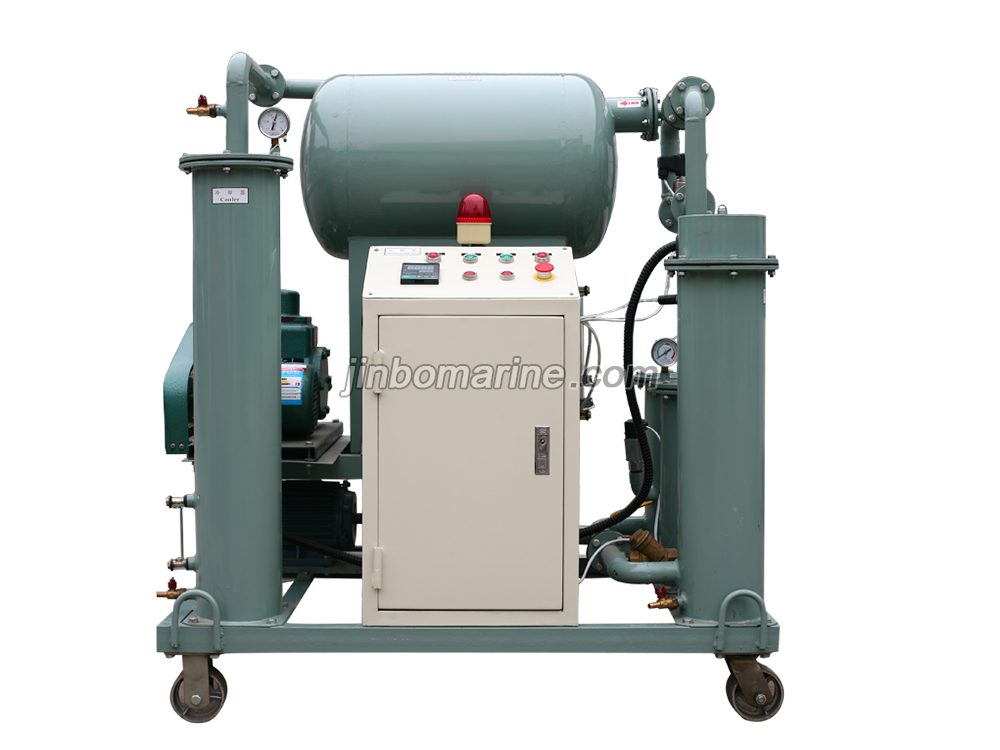

ZYA-200 High Efficient Vacuum Oil Purifier
- Category:Oil Purifier
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China ZYA-200 High Efficient Vacuum Oil Purifier:
Application:
The product can be used for 110KV and below transformer installation and overhaul, as well as for treatment to non-conformable transformer oil, mutual indicator oil and circuit breaker oil in power inductor (especially applicable to recovery of extremely inferior installation oil, as well as for transformer vacuum oil filling and drying.
Technical Feature:
In addition to its capability to remove water , gas and impurities in oil like functions of ordinary vacuum purifier, the purifier can also recover the inferior insulation oil, which could effectively remove the intensive oxide and free carbon, thus resumes anti-oxidation and acid/alkali water solubility characteristics, after treatment, the oil can meet the national standard in respect of water content, withstand value , gas content, acid value and medium consumption requirement, the purifier has multi-purpose functions. Its function removal of water, gas or impurities and the recovery system can operate together at the same time , being easy to operate with higher effectiveness.
The purifier has multi-purpose functions, its function of removal of water, gas or impurities and the recovery system can operate together at the same time, being easy to operate with higher effectiveness.
Technical Data:
| Item | Unit | ZYA-50 | ZYA-100 | ZYA-150 | ZYA-200 | ZYA-250 | ZYA-300 | |
| Flow rate | L/min | 50 | 100 | 150 | 200 | 250 | 300 | |
| Work vacuum | pa | ≤50 | ||||||
| Ultimate vacuum | pa | ≤2 | ||||||
| working pressure | Mpa | ≤0.4 | ||||||
| Constant temperature control range | ℃ | 20 ～80 | ||||||
| power | / | 380V/50HZ 3P 5 circuit(or at user's option) | ||||||
| noise db(A) | dB(A) | ≤65～80（depend on user's requirement） | ||||||
| Fult-free working hours | h | ≥4000 | ||||||
| continuous hours | h | ≥150 | ||||||
| Heating power | Kw | 30 | 72 | 96 | 144 | 168 | 192 | |
| Total Power | Kw | 35 | 80 | 105 | 155 | 182 | 210 | |
| Inlet(outlet) diameter | mm | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 | Φ60 | |
| weight | kg | 850 | 1000 | 1350 | 1850 | 2200 | 2500 | |
| After filteration | breakdown voltage | KV | ≥80 | |||||
| water content | ppm | ≤3 | ||||||
| Dielectric loss | tgδ（90℃）% | ≤0.3 | ||||||
| acid value | mgKOH/g | ≤0.03 | ||||||
| gas content | % | ≤0.1 | ||||||
| granularity | pcs/100ml | ≤900（≥5μm）or at user's option | ||||||
