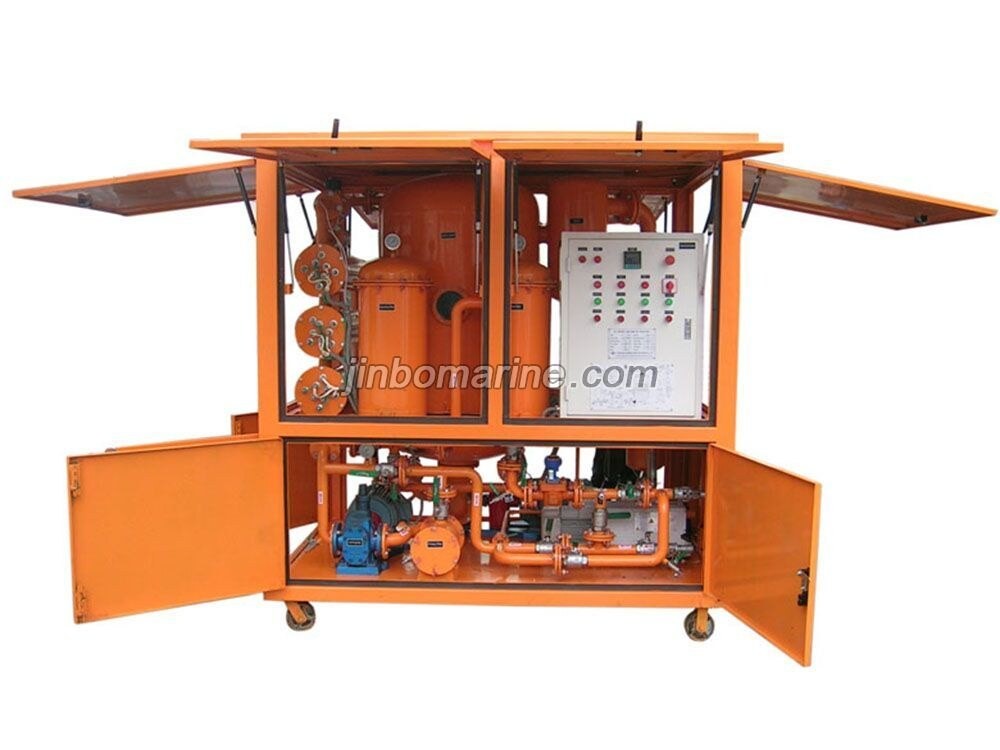

ZYD Series Double Stage High Efficient Vacuum Oil Purifier
- Category:Oil Purifier
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China ZYD Series Double Stage High Efficient Vacuum Oil Purifier:
ZYD series double stage high efficiency vacuum oil filter:
This equipment is suitable for power station, power plants, power companies, transmission equipment, transformers and industrial and mining enterprises, transformers, insulation oil
The utility model is especially suitable for the installation and maintenance of the transformer on the large power transmission and transformation equipment above the 110-750KV and the transformer on the main transformer network of the state, and the use of the high grade new oil and the operation oil. Can shorten the transformer installation and maintenance of oil treatment period.
Technical features:
1. has a double stage vacuum system with high pumping speed and a multi-stage vacuum analytical separation system, which can quickly remove water, gas, impurities, polar substances and other deteriorating materials.
2. uses a patented 5 - level multi - source three - dimensional film flash dehydration degassing technology, high efficiency of oil out of water, gas, so that the breakdown voltage rapidly increased to more than 70KV.
3. The filtering effect is greatly improved, which reduces the risk of oil aging caused by multiple filtration heating.
4. The composite high speed spiral degassing Plaza flow structure, independent oil and gas dual channel technology, anti oil and gas separation in two dissolution technology, can quickly remove the oil liquid organic hydrocarbon gas, acetylene, hydrogen content in the oil to ensure zero.
5. This device used a special spiral growth table Lepidoptera back U infrared radiation heating, grouping of super low surface load, PID temperature control and temperature dual flow protection technology, internal diameter increasing oil flow to the overflow reduction technology, to prevent the "dead area", over temperature and dry burning.
6. This device uses a composite multistage high beta value gradually close the filtration system, line coupling filter can effectively filter the oil seal, the fine particles of mechanical impurities.
7. It is online oil filter, unattended, but also on the transformer, such as vacuum oil, and its hot oil drying treatment.
8. It has advanced infrared liquid level automatic control system, automatic foam control system, pressure protection system and safety interlock control, to ensure the equipment for a long time, safe and reliable operation.
Item | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow Rate | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 | |
working vacuum | pa | ≤50 | |||||||
Ultimate vacuum | pa | ≤5 | |||||||
working Preuusre | Mpa | ≤0.4 | |||||||
Constant temperature control range | ℃ | 20 ~80 | |||||||
power | / | 380V/50HZ(or at user's option) | |||||||
noise db(A) | dB(A) | ≤65~85(depend on user's requirement) | |||||||
Fult-free working hours | h | ≥4000 | |||||||
continuous hours | h | ≥150 | |||||||
Heating power | Kw | 30 | 30 | 72 | 96 | 144 | 168 | 192 | |
Total Power | Kw | 35 | 35 | 80 | 105 | 155 | 182 | 210 | |
Inlet(outlet) diameter | mm | Φ25 | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 | Φ60 | |
weight | kg | 450 | 550 | 870 | 950 | 1250 | 1850 | 2100 | |
After filteration | breakdown voltage | KV | ≥75 | ||||||
water content | ppm | ≤3 | |||||||
gas content | % | ≤0.1 | |||||||
granularity | μm | ≤1(at user's option) |
