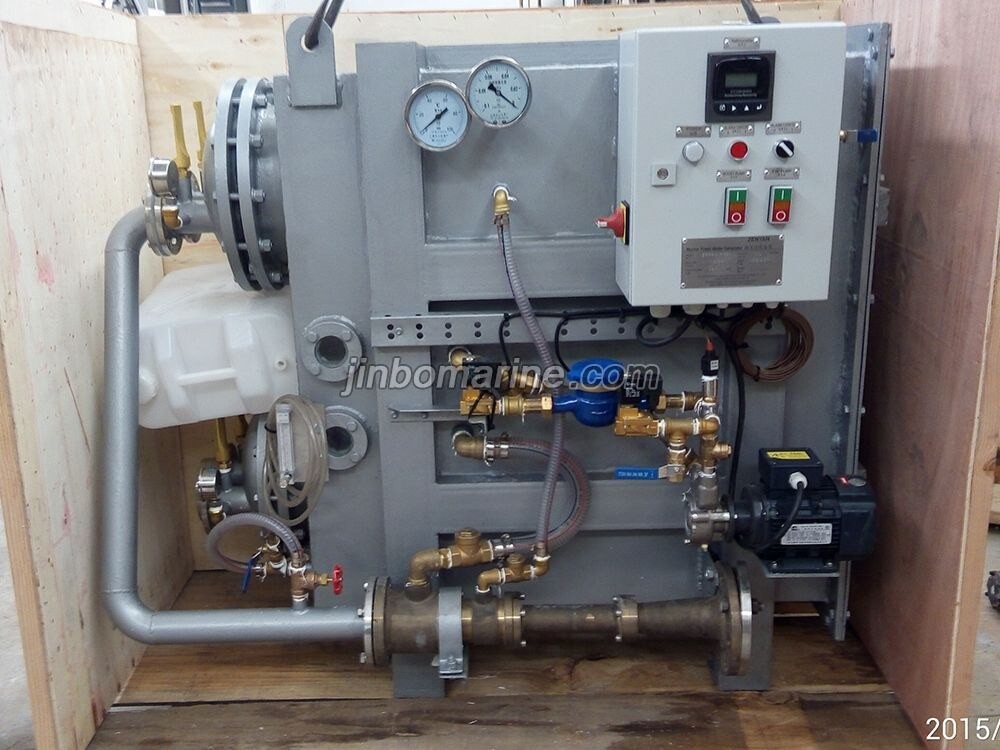

ZYFWG-30 30Ton/day Marine Fresh Water Generator Evaporator
- Category:Water Treatment Equipment
- Material:Copper
- Standards:ISO9001
- Certificate:CCS
- Packing Details:Wooden box
- Delivery Time:45days
- Supply Ability:10 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China ZYFWG-30 30Ton/day Marine Fresh Water Generator Evaporator:
Description:
ZYFWG series Marine distillation desalination device/generator/distiller is designed and manufactured according to the latest technology. The device is made mainly by water evaporation and condensation water, heat is main engine cylinder liner water or electric heating, steam, thermal oil, etc., condensed water is the water of the sea. Specific process is jacket water into the evaporator, when the water absorption of heat reaches about 45 at the beginning of the vacuum evaporation to produce steam, the steam is condensed into distilled water. Distilled water was condensate pump. Produce fresh water salinity is less than 10 PPM. Water can be used for steam boiler and crew drinking water.
Application:
Used for all kinds of oceangoing ships and offshore platform.
Our company provide 1 ~ 150 tons/day of vacuum distillation type Marine generator. Generator products meet the main classification DNV, LR, GL, ABS, BV, NK CCS specification requirements.
Generator specific models for ~ ZYFWG ZYFWG - 1-150.
Technical Data:
Model | Capacity m3/d | Weight kg |
ZYFWG-1.5 | 1.5 | 360 |
ZYFWG-2 | 2 | 400 |
ZYFWG-3 | 3 | 500 |
ZYFWG-5 | 5-7 | 800 |
ZYFWG-10 | 10 | 950 |
ZYFWG-12 | 12 | 1000 |
ZYFWG-15 | 15 | 1350 |
ZYFWG-20 | 20 | 1500 |
ZYFWG-25 | 25 | 1650 |
ZYFWG-30 | 30 | 1750 |
ZYFWG-35 | 35 | 1850 |
ZYFWG-40 | 40 | 2000 |
ZYFWG-50 | 50 | 2250 |
ZYFWG-100 | 100 | 3500 |
ZYFWG-150 | 150 | 4800 |
