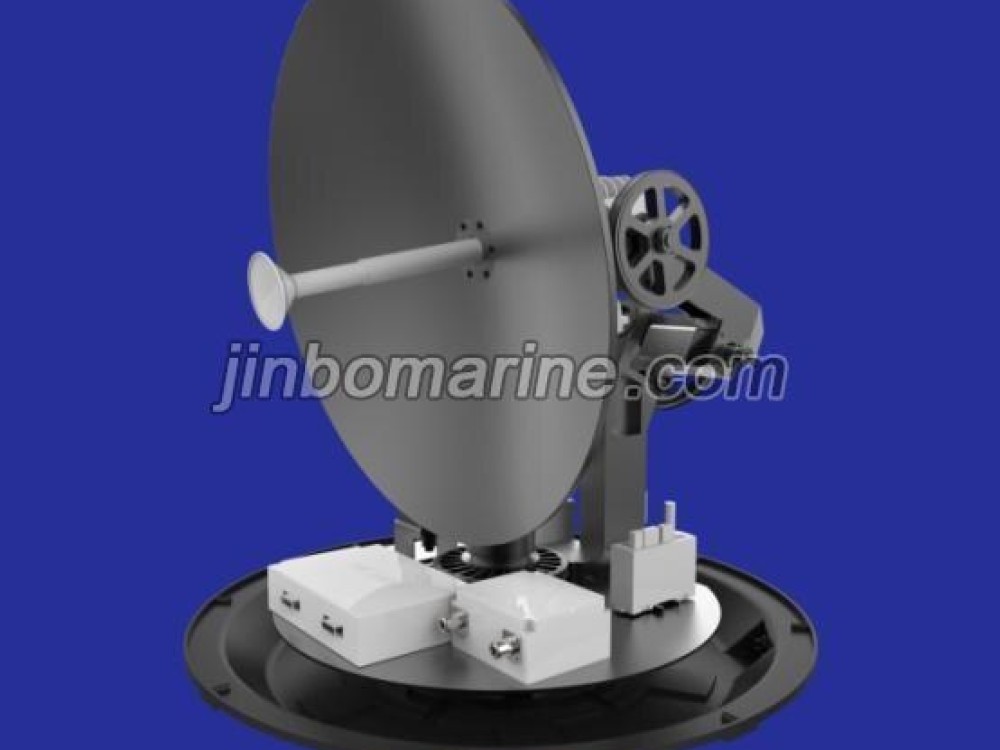

0.6 meter Ku-band Satcom on the move for vessels

Model S060-14A

Introduction

Model S060-14A is a Ku-band Satcom on the move for ship, which adopts high precision strap-down inertial navigation system, beacon tracking and built-in GPS module. All these guarantee that the antenna point accurately at the satellite, transmitting and receiving signals stably while the ship is moving, even the ship is under extremely bad circumstance.

Model S060-14A is compatible with 2 or 3 axis base, which would allow client a wider choice. Moreover, the system adopts maintenance-free dehumidification technology, making it convenient for use.

Features

l Module design, high integration

l High tracking precision, fast speed response

l Maintenance-free dehumidification system

l Compatible 2/3 axis base design, wider choice

l Broadband antenna technology

Specifications

1. Working Frequency: TX: 13.75GHz~14.5GH

RX: 10.7GHz~12.75GHz

2. Antenna Gain: TX≥36.5dBi@14.25GHz

RX≥35.3dBi@12.5GHz

3. Polarization: Linear

4. Antenna Type: Panel Antenna

5. Antenna Size: 0.2m

6. Pedestal: 2/3 axis compatible

7. Antenna Range:

Azimuth Angle: 360°continuous turning

Elevation Angle: 2-Axis: -5°~90°, 3-Axis: -10°~110°

Cross Angle: 2- Axis: non, 3-Axis: -30°~30°

8. Tracking accuracy: 0.5dB(R.M.S)

9. Ship’s Motion:

Roll: ±30°@5s

Pitch: ±30°@5s

Yaw: 30°/s

10. Working Temperature: -40℃~+55℃

11. Humidity: 0%~95%

12. Antenna Input Power: 24V(18~30V)

13. Power Consumption: ≤115W (Amplifier not included)

14. Weight: 30 Kg

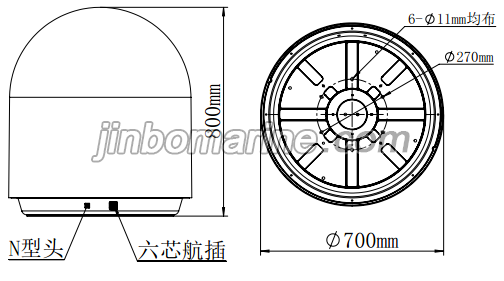

Product Dimensions

Application Fields

The system can be used for ships on the sea or inland waterway. It can establish communications with normal linear polarization satellites, even when the ship is at a high-speed voyage. Equipped with a related decoder, the system can realize audio video bilateral transportation and data share etc. It has the following highlights: unlimited communications distance, convenient installation and all areas adaption.
