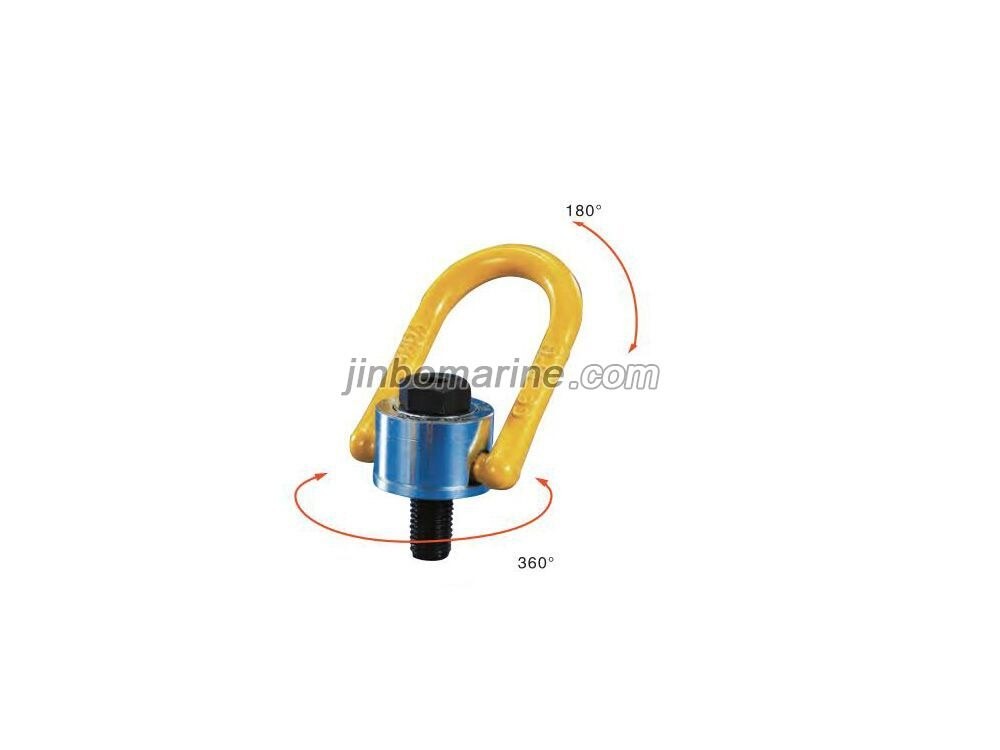

8-231 Yoke Rotary Anchor Point With Metric Thread

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

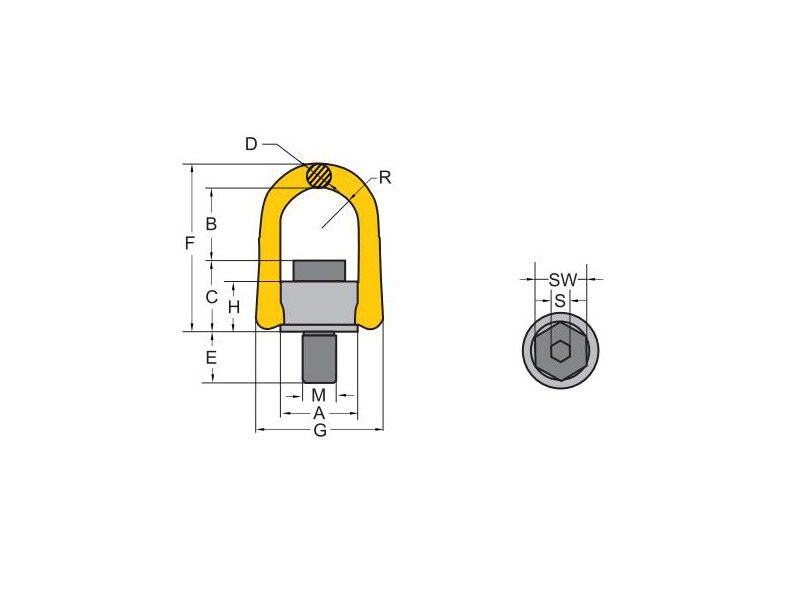

8-231 Yoke Rotary Anchor Point With Metric Thread Drawing

8-231 Yoke Rotary Anchor Point With Metric Thread Parameters

ITEM NO. WLL/T THREAD/M WEIGHT/KG
Y (Z)
8-231-005 0.5 0.8 M8X1.25 0.3
8-231-007 0.7 1.2 M10X1.5 0.3
8-231-010 1 2 M12X1.75 0.3
8-231-015 1.5 2.4 M14X2 0.9
8-231-020 2 3.2 M16X2 0.9
8-231-025 2.5 5 M18X2.5 1.9
8-231-030 3 5.6 M20X2.5 1.0
8-231-050 5 9.2 M24X3 2.6
8-231-056 5.6 9.2 M27X3 4.9
8-231-078 7.8 12 M30X3.5 5.0
8-231-125 12.5 14 M36X4 9.6
8-231-156 15.6 16 M42X4.5 10.9
8-231-200 20 20 M48X5 11.6
8-231-220 22 22 M56X5.5 15.0
8-231-225 22.5 22.5 M64X6 16.3
ITEM NO. TECHNICAL PARAMETERS/MM
A B C D E
8-231-005 33 42 28 11 12
8-231-007 33 41 29 11 15
8-231-010 33 40 31 11 20
8-231-015 50 56 45 17 21
8-231-020 50 54 46 17 24
8-231-025 65 78 57 20 26
8-231-030 50 52 49 17 30
8-231-050 72 81 59 25 36
8-231-056 87 86 79 30 38
8-231-078 87 94 81 30 48
8-231-125 110 112 98 36 54
8-231-156 110 101 108 36 63
8-231-200 110 97 113 36 72
8-231-220 123 116 121 36 84
8-231-225 123 111 126 36 100
ITEM NO. TECHNICAL PARAMETERS/MM
F G H R S SW
8-231-005 80 58 23 17 6 13
8-231-007 80 58 23 17 6 17
8-231-010 80 58 23 17 8 19
8-231-015 117 90 36 27 10 22
8-231-020 117 90 36 27 10 24
8-231-025 153 108 44 34 12 30
8-231-030 117 90 36 27 12 30
8-231-050 163 125 44 37 14 36
8-231-056 204 148 62 46 17 41
8-231-078 204 148 62 46 17 46
8-231-125 247 188 75 57 22 55
8-231-156 247 188 83 57 24 65
8-231-200 248 188 83 57 27 75
8-231-220 274 202 91 64 27 85
8-231-225 274 202 91 64 32 95
