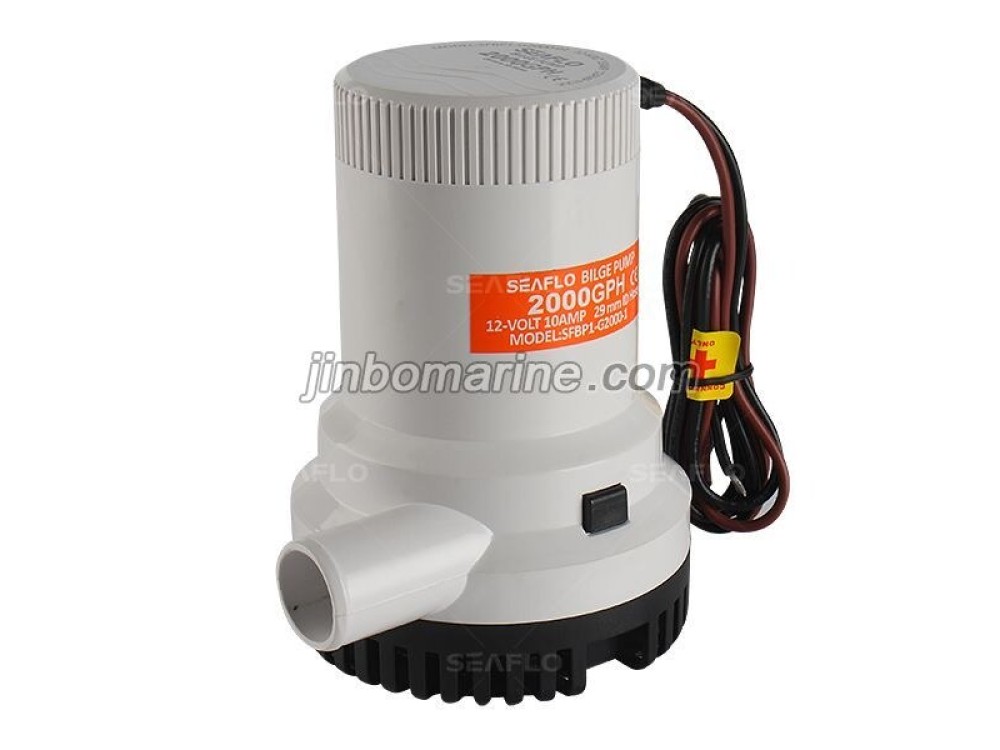

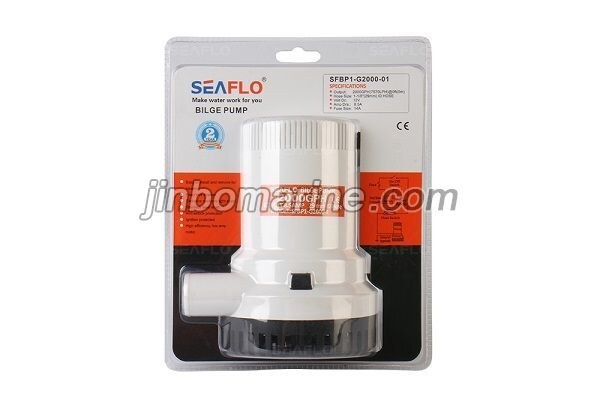

01 Series 2000GPH Bilge Pump

SEAFLO non-automatic bilge pumps offer standard action activated by a panel or float switch. Removable strainer for easy replacement or in the event that the pump becomes clogged with debris

STANDARD PUMP CONFIGURATIONS

Model FlowRate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W.
SFBP1-G2000-01 2000 GPH 12V 8.5 A 14.0 A 20' (6m) 3' (1m) 1-1/8" 1.13/1.21 kg
SFBP2-G2000-01 2000 GPH 24V 5.0 A 8.0 A 20' (6m) 3' (1m) 1-1/8" 1.13/1.21 kg

PERFORMANCE

Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

12 9 1427 5401 0
12 8.3 1200 4542 0.5
12 10 951 3600 1
12 8.8 1060 4012 1.5
12 10.8 919 3478 2
12 9.2 940 3558 2.5
12 9.3 850 3217 3
12 9.3 790 2990 3.5

Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

13.6 4.3 1442 5458 0
13.6 4.5 967 3660 1
13.6 4.8 951 3660 2
