CYL-25 semi-rotary hand pump
- Category:Hand Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

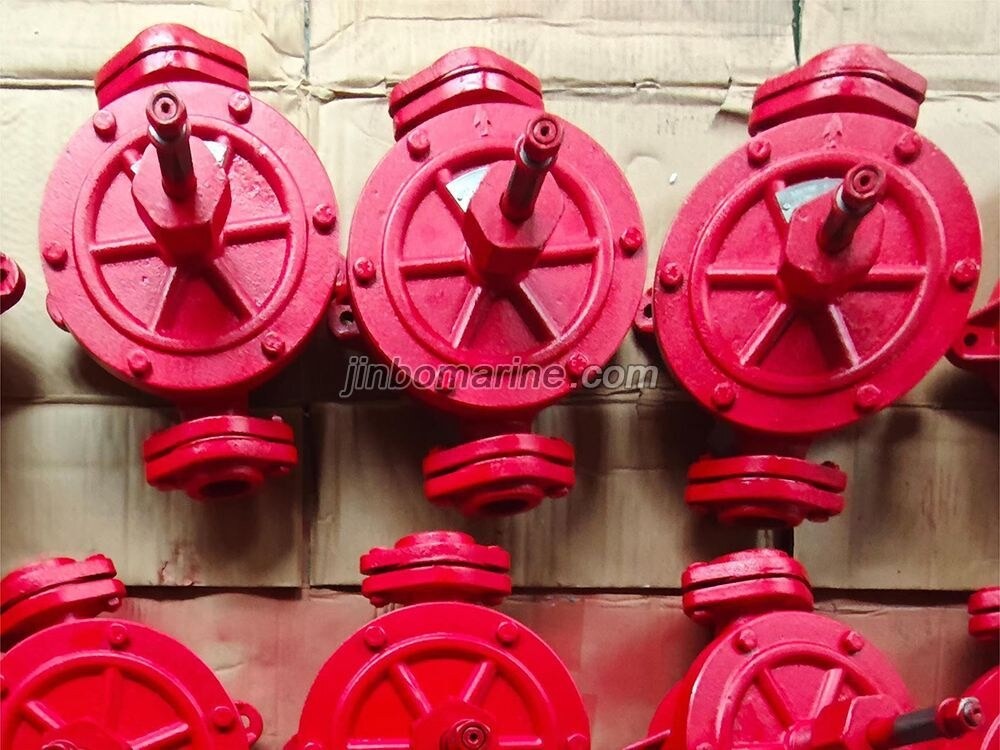

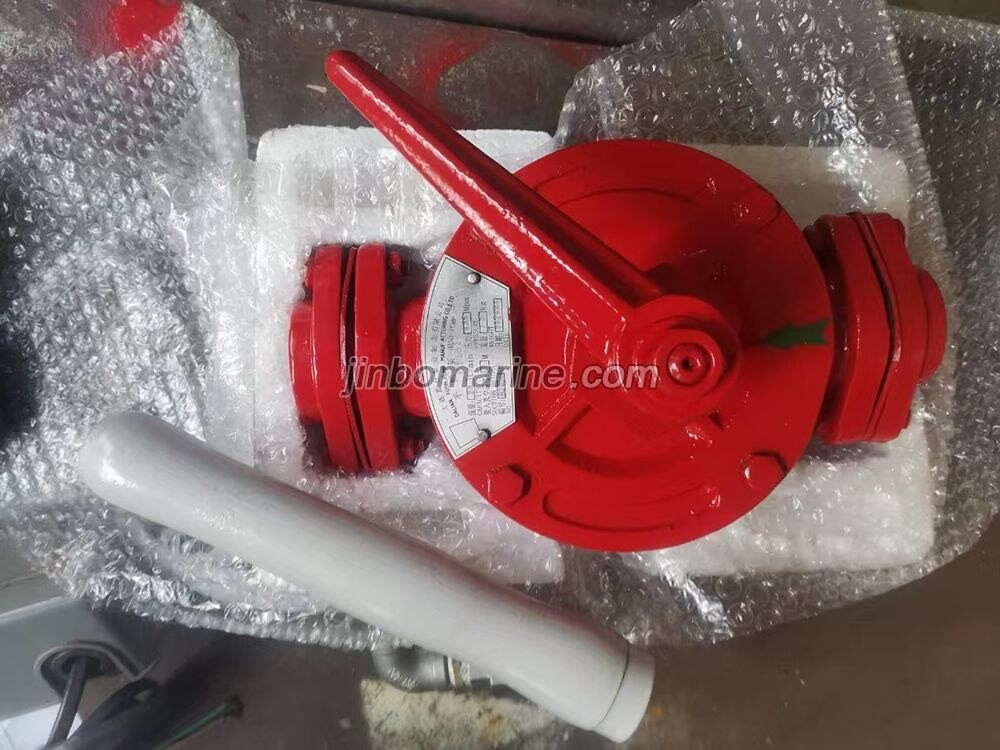

CYL-25 semi-rotary hand pump
CYL semi-rotary hand pump for pumping water, gasoline, kerosene and on iron and copper and other non-corrosive liquid, do not apply to contain fibers or other solids in the liquid, the suction liquid temperature under 60℃. CYL hand pump has the advantages of compact structure, elegant style, convenient and reliable use. Available for shipping, mining, enterprises, schools, and other units to use vehicles.
Model Explanation CYL-25
Half twist-action hand pump
Inlet and outlet diameter 15mm
Performance Parameter
| Type |
Capacity (V/min) |
Head (m) |
Inlet vacuum height (m) |
Weight (kg) |
| CYL-15 | 15 | 14 | 5 | 5 |
| CYL-20 | 20 | 14 | 5 | 5.5 |
| CYL-25 | 25 | 26 | 6 | 7.5 |
| CYL-32 | 28 | 26 | 6 | 9 |
| CYL-40 | 65 | 18 | 6.5 | 22.5 |
| CYL-50 | 105 | 18 | 6.5 | 34.5 |
