01 Series 3000GPH Bilge Pump
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

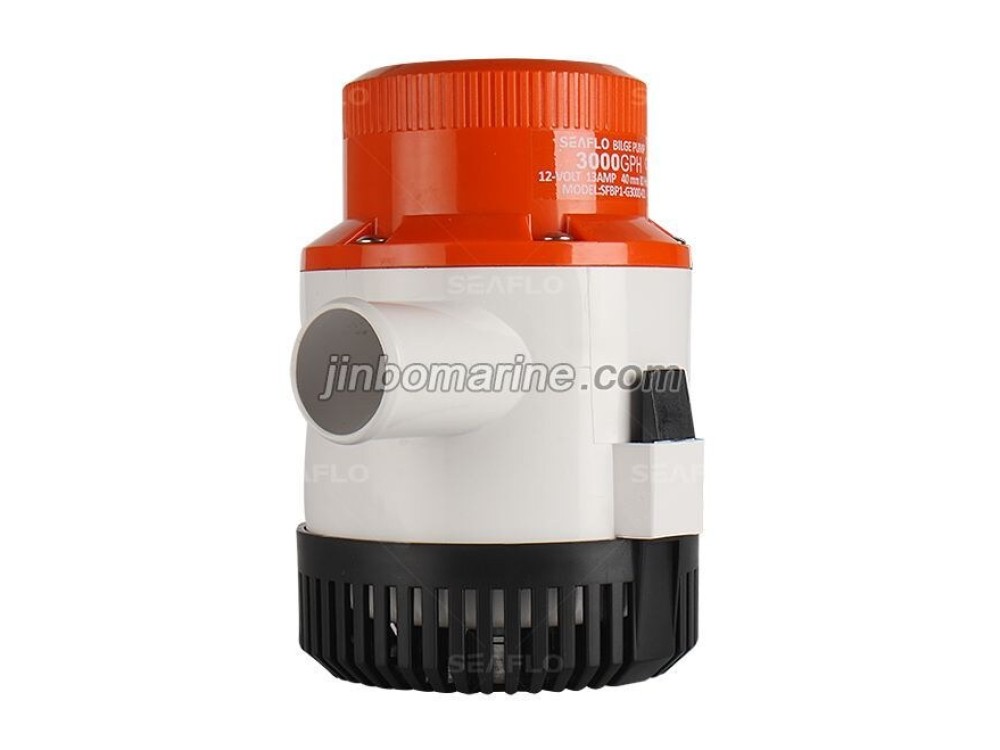

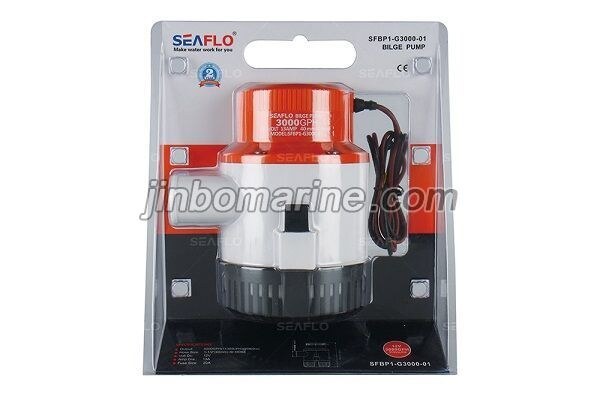

01 Series 3000GPH Bilge Pump
SEAFLO non-automatic bilge pumps offer standard action activated by a panel or float switch. Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G3000-01 | 3000 GPH | 12 V | 14.0 A | 20.0 A | 26' (8m) | 3' (1m) | 1-1/2" | 2.10/2.37 kg |
| SFBP2-G3000-01 | 3000 GPH | 24 V | 7.0 A | 12.0 A | 26' (8m) | 3' (1m) | 1-1/2" | 2.10/2.37 kg |
PERFORMANCE
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
| 12 | 10 | 2580 | 9765 | 0 |
| 12 | 10.2 | 2420 | 9160 | 0.5 |
| 12 | 10.5 | 2350 | 8895 | 1 |
| 12 | 10.7 | 2120 | 8024 | 1.5 |
| 12 | 11 | 2070 | 7835 | 2 |
| 12 | 11.2 | 1780 | 6737 | 2.5 |
| 12 | 11.5 | 1630 | 6170 | 3 |
